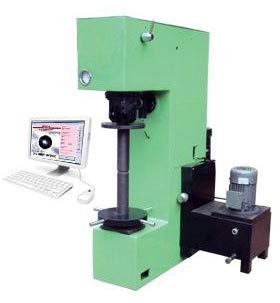

VMCB3000PC Brinell Hardness Tester

'VMC' Computerised Brinell Hardness Tester is a simple and accurate means to produce brinell impression and automatically measure it. The Computerised Brinell Hardness Tester gives direct display of Brinell hardness number. These Computerised Brinell Hardness Testers are suitable for measuring the hardness of metallic parts in a wide range - from soft to hard, and their accurate results are widely acclaimed. The Computerised Brinell Hardness Testers, we offer strictly confirm to IS: 2281, BS: 10003-2 and ASTM E-10.

Technical Data
Total Load kgf : 500 to 3000 in stages of 250 kgfMeasurement Range : 1-6 mmMax. Test Height : 410 mmScale least count : 0.01 mmThroat depth : 200 mmMachine Dimension (Approx.) mm : L 995 x W 400 x H 1178Weight (Approx.) :  450Power Supply V/Cy/Ph : 415/50/3
The software includes
Facility for Auto / semi Auto / Manual modes of operation Well managed database saves readings w.r.t. batch and certificateReport generation in the form of certificate and graph with variation and histogramFacility for calibration and check of calibrationAdvance image processing algorithm implemented for automatic measurementStatistical data is provided for a batch results and include standard deviation, mean, medium, minimum and maximum readingMeasuring scale Calibration / Verification on PC monitor.
