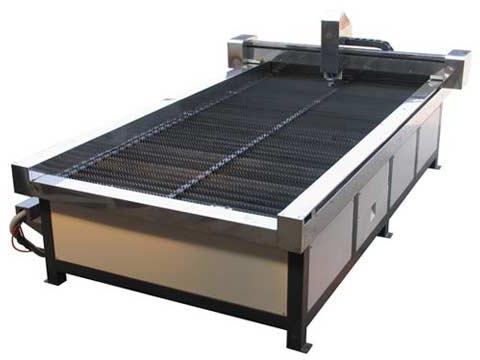

Welding & Cutting Machine

We make available Welding & Cutting Machine procured from trusted manufacturers and vendors. The Welding & Cutting Machine Offered by us is designed as per the industrial parameters and is easy to install and operate. These precision engineered Welding & Cutting Machines are widely used in industries for cutting and welding with fineness and accuracy. These Welding & Cutting Machines are made available by us at industry leading prices. Demanded For :

• Consistent performance
• High efficiency
• Sturdy construction
• High durability

Features :

• Light beam design,good rigidity,light weight and tiny moving inertia
• Small cutting gap,no residua
• Y axis adopts double moters with double drivers.XYZ axis round raill,moving smoothly ,with high accuracy.(Option:squar raill)
• Excellent performance on cutting 3 D illuminated letters for advertising and channel letters on metal surface board
• Working together with other advertising machines,such as CNC Router and so on ,improving working efficiency
• Poratable plasma welding machine

Specifications

Supply main voltage	110-253 v
Line Voltage	50 -60 Hz
Power consumption kW	up to 3.5
Power supply dimensions cm	38 x 14 x 19
Torch weight kg	0.9
Power supply weight kg	8.0
Plasma flame temperature deg	C 8000
Cut steel plate's thickness	up to 10 mm
Welded steel plate's thickness	from 0. 3mm
Steel sheet (at 2mm) cutting speed	up to 7 mm/s
Width of sheet steel cut mm	1.5 at most
Working fluid consumption l/h	0.25
Torch filling operation	min 20-30
Working Area	1500*3000mm(59*102 inch)
Cutting Tickness	40A-0.5-10mm (120A)3-16mm (200A)3-25mm
Cutting Speed	0-8000mm/min
Moving Speed	0-50000m/min
Power	8.5KW-10.5KW
Input Voltage	3 Phase 380V
Power Frequency	50HZ
Flies Transfer	USB Interface
Arc	Untouched Arc Striking
