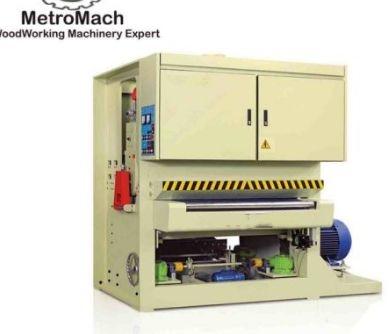

main features:
the machine frame adopts welding integral structure to improve the machine's rigidity and service life of the machine.
the roller is made of steel and has been dynamic balance detected precisely,which makes running smoothly and improves the sanding power.
the feeding drive adopts frequency-controller and conveyer belt,that can get high precise thickness.
the beam is strong and reliable ,which supplies a stable sanding precision.
main technical specifications:
| model | sr13a |
| working width | 40-1300mm |
| working thickness | 3-110mm |
| working length | ≥750mm |
| abrasive belt speed | 20m/s |
| feed speed | 10-70m/min |
| size of abrasive belt (wxp) | 1330x2615mm |
| total motor power | 64kw |
| main motor | 55kw |
| working air pressure | 0.55mpa |
| consumption of compressed air | 0.1m3/min |
| volume of sucked air | 10000m3/h |
| speed of sucked air | 25-30m/s |
| overall dimension (lxwxh) | 2120x2980x2440mm |
| net weight | 6500kgs |
