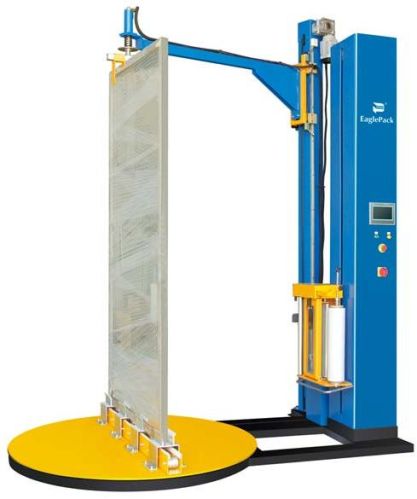

Window Wrapper

We are offering window wrapper.
This wrapper is special design for door and window. With power pre-stretch film carriage, et300pps-dr realizes minimum film consumption, this allows you reduce pallet wrapping cost and return on your investment soon.
motorized top clamp to clamp the door or window during the packing.
Siemens advanced control system & siemens 7�� touch screen allows easy to set packing parameters and easy to operate.

Specification
size of the product to be wrapped
min load size(l x thickness xh) 500 x 25mm x 500 mm�
max load size(lx thickness x h) 1650 x50mm x 2400 mm
max load height 2400mm
max weight 2000kgs
film carriage
carriage power pre-stretch film carriage, stretch ratio up to 300%
carriage� door� opens� for� effortless� roll� change� and� thread� film�
film tension adjustable
machine specification
turntable rotation speed: 3-12 rpm adjustable
turntable diameter 1650mm
turntable height 78mm
carriage updown speed adjustable
power supply voltage standard 220 volt 1 ph - 50 hz
power 1.8kw
packing� efficiency 20-40� loadshour
forklifting front & rear
machine size 2675mm x 1650mm x 2860mm (lxwxh) standard
machine weight 800kg
stretch film roll detail
max. External diameter (d): 230 mm
internal diameter (d): 76 mm
film roll height (h): 500 mm
film thickness: �  17-35 �µm
