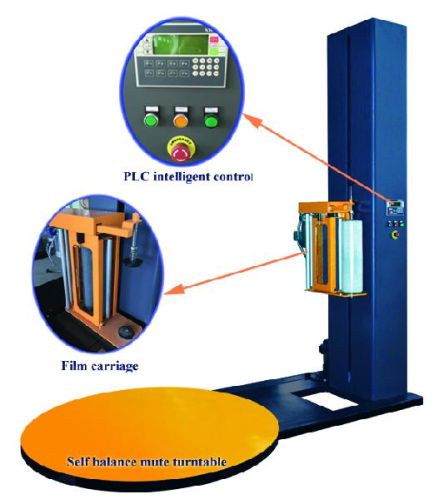

Wrapping Machine

1.intelligent human-computer interface; plc easy operation control; pre-stretch system 300% (customized).
2.stable performance, working life 10 years, quality guarantee 2 years.
3.european standard design and manufacture, same quality, but chinese market price; pass ce certificate.
model
t1650f automatic pre-stretch film wrapping machine
wrapping product size
l(500-1200) mm × w(500-1200)mm
wrapping height
l type:1800mm h type:2400mm y type:2800mm
packing efficiency
20-40 palleth
rotary speed
0~15rpm rotary speed, adjustable, steady start and stop
turntable size
dia:1650mm height:78mm
turntable weight capacity
2000kgs
film carriage system
pre-stretch film carriage, pre-stretch up to 250%,
automatic transport film
up and down upright
double chain structure, adjustable up and down speed by transducer
control system
plc programmable
machine weight
700kg
machine size
2745mm×1650mm × (2260-3260) mm
power
turntable 0.75kw, film carriage 0.4kw, upright 0.37kw
