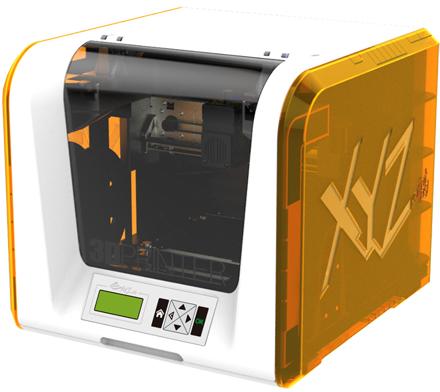

XYZ Junior FDM 3D Printer

Raw material that we use for preparing our offering is sourced from the reliable places and that too after complete quality confirmation. As a result of which, our products have no match in the market. Keeping pace with the contemporary market trends, we ensure on-time and safe delivery of the orders.

Specifications

• Product Dimension (WxDxH) - 16.54 x 16.93 x 14.96 inch (42 x 43 x 38 cm )
• Package Dimension - 21.53 x 22.87 x 18.7 inch (54.7 x 58.1 x 47.5 cm)
• Gross Weight - 33.07 lbs (15kg)
• Technology - FFF (Fused Filament Fabrication)
• Maximum Build Volume (WxDxH) - 5.9 x 5.9 x 5.9 inch (15x15x15cm)
• Print Head - Single Nozzle
• Nozzle Diameter - 0.4 mm
• Filament Diameter - 1.75 mm
• Filament Material - PLA
• Panel Type : 2.6" FSTN LCM
• Language - Multi Language
• Software - XYZware
• File Types - .stl , XYZ Format (.3w)

Resolution

• Fine 0.1 mm (100 microns)

• Standard 0.2 mm (200 microns)

• Speed 0.3 mm (300 microns)

• Ultra Fast 0.4 mm (400 microns)

Maximum Printing Speed

• up to 100mm/s ^*

• * Note : maximum printing speed tested by actual material extrusion speed under laboratory testing conditions, actual printing results may vary.

Connectivity

• USB 2.0, SD card

• *Systems are compatible with SDHC cards up to 32GB in size.

OS Support

• Windows 7 above (for PC)

• Mac OSX 10.8 above 64-bit (for Mac)

• Note : Stardard VGA driver on operating system, or a graphics card doesn't support OpenGL 2.1, may cause unknown error in XYZware.

Hardware

• Hardware Requirements (for PC/Mac)

• X86 32 / 64 - bit compatible PCs with 4GB+ DRAM (for PC)

• X86 64 - bit compatible Macs with 4GB+ DRAM (for Mac)
