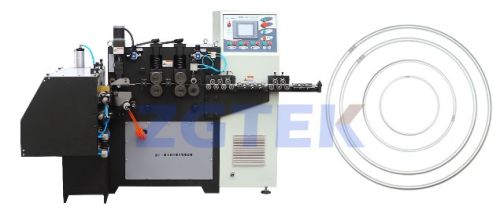

ZGTEK Automatic Ring Making Machine 2-6mm, Packaging Type : Grey

Zgtek is world�s leading supplier of filter cage welding machines and automatic ring making machines, we have more than 95% of market share in china, and also have sold to more than 40 countries in the world.
Model: r-6-300
input voltage: 380v(3-phase) or customized
power frequency: 5060hz
designed max. Capacity of transformer: 40kva
instant power during welding: 18kva(for 4mm wire)
instant power during forming: 3kva
wire thickness: 2.8-6mm
max ring diameter: 300mm
min ring diameter: 70mm
ring perimeter tolerance: 0.5mm
cooling: natural cooling
air flow required: 250lmin
air pressure: 0.6-0.8mpa
throughput: about 1560pcshr(for ring diameter 150mm)
weight: 1300kgs
features
high precision: intelligent "s" shape speed curve, the encoder and the servo motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.13mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines.
Advanced and reliable wire feeding: the feeding unit includes a high-end servo motor and a planetary reducer, works on the basis of "dual-drive".
Automatic ring making: sizes can be adjusted automatically, worker attendance is not required during machine running.
Compatible welding: capable of welding low, medium and high carbon steel, spring steel, galvanized steel; if equipped with a tig unit, it can also weld stainless steel and titanium rings.
Easy operation and maintenance: user-friendly interface on touch screen, easy to adjust, operate and diagnose the machine.
