Our Products

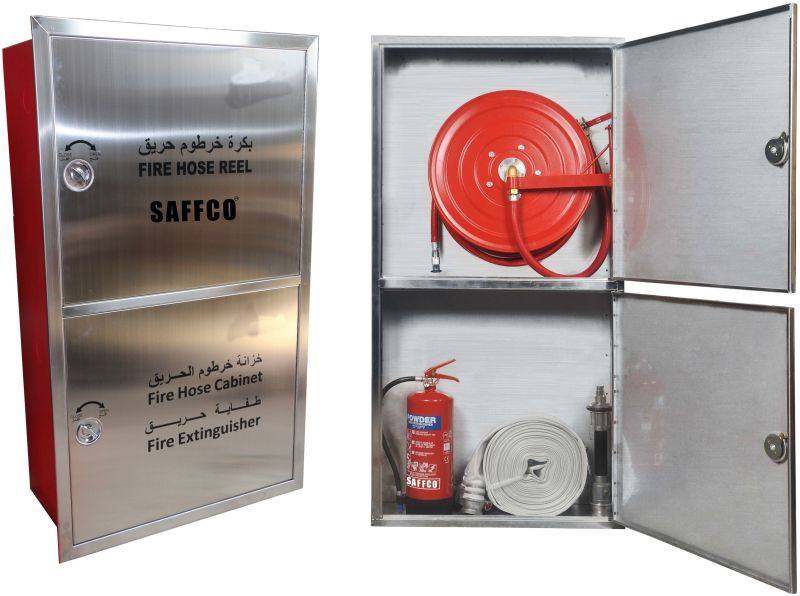

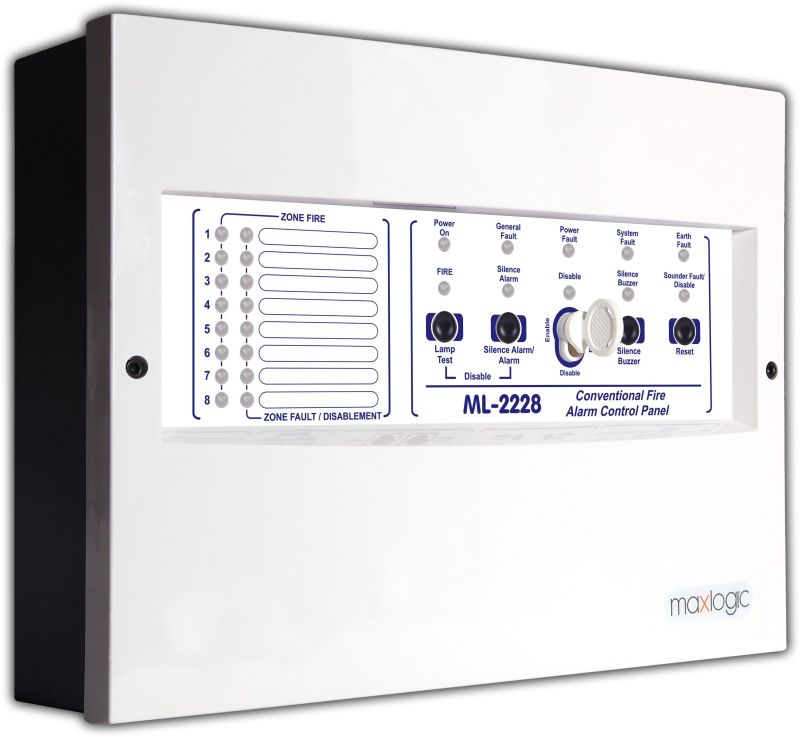

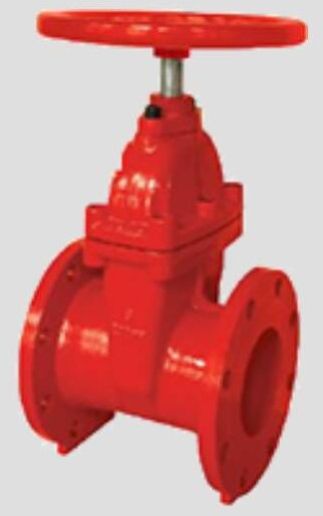

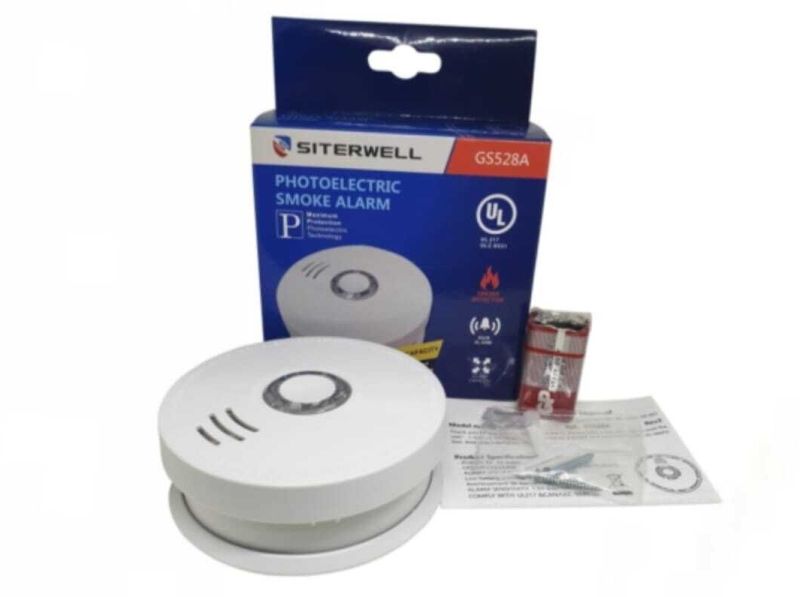

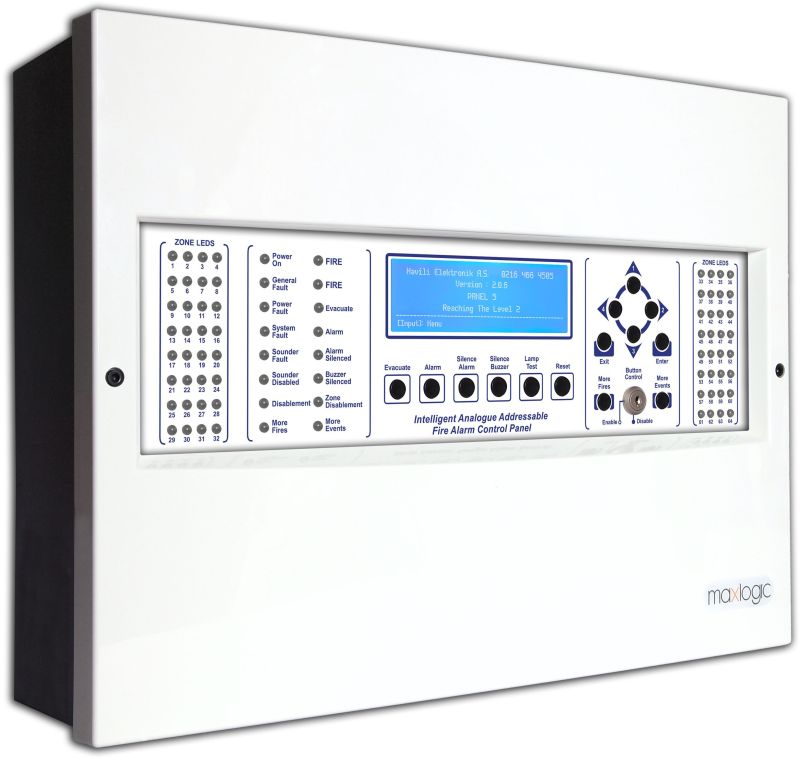

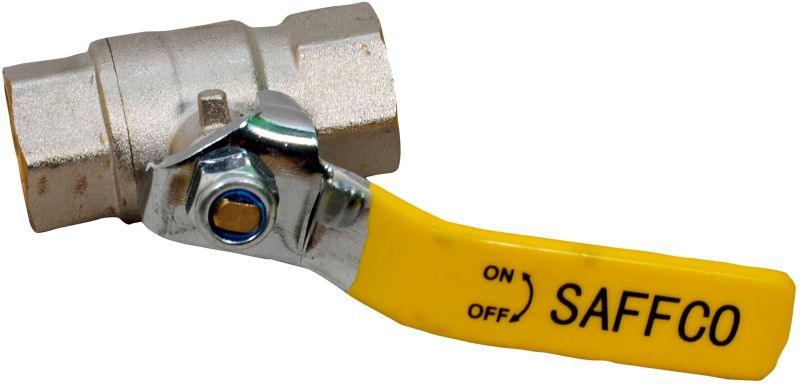

Leading Manufacturer, Supplier & Retailer of Addressable Fire Alarm System, Conventional Fire Alarm System, Battery Operated Standalone Smoke Detector, Stainless Steel Hose REEL DOOR and Ball Valve.
| MODEL | SA-01-ABC | SA-02-ABC | SA-04-ABC | SA-06-ABC | SA-09-ABC |
|---|---|---|---|---|---|
| Capacity | 1kg | 2kg | 4kg | 6kg | 9kg |
| Confirming IS Code | 15683 | 15683 | 15683 | 15683 | 15683 |
| Type of Extinguishers | Stored Pressure | ||||
| Type of Extinguisher Media | Mono Ammonium Phosphate Base Dry Powder Confirming to IS:14609 | ||||
| Expellant | Pressurized with Nitrogen (N2) Gas | ||||
| Diameter (Approx) | 86 ± 10 mm | 108 ± 10 mm | 140 ± 10 mm | 150 ± 10 mm | 175 ± 10 mm |
| Height (Approx) | 300 mm | 350 mm | 490 mm | 500 mm | 550 mm |
| Filled Weight (Approx) | 2.0 kg | 3.4 kg | 6.4 kg | 9.4 kg | 12.5 kg |
| Empty Weight (Approx) | 1.0 kg | 1.4 kg | 2.4 kg | 3.4 kg | 3.5 kg |
| Average Discharge Time | 9.0 sec. | 11.0 sec. | 14.0 sec. | 17.0 sec. | 25.0 sec. |
| Operating Temperature | -20°C to 55°C | ||||
| Working Pressure at 20°C | 15.5bar | ||||
| Maximum Service Pressure | 17.5bar | ||||
| Hydraulic Test Pressure | 35.0bar | ||||
| Fire Rating | 1A 21B | 1A 21B | 2A 55B | 3A 89B | 3A 144B |
| Approvals | BIS & CE | BIS & CE | BIS & CE | BIS & CE | BIS & CE |
| MODEL | SA-01-BC | SA-02-BC | SA-04-BC | SA-06-BC | SA-09-BC |
|---|---|---|---|---|---|
| Capacity | 1kg | 2kg | 4kg | 6kg | 9kg |
| Confirming IS Code | 15683 | 15683 | 15683 | 15683 | 15683 |
| Type of Extinguishers | Stored Pressure | ||||
| Type of Extinguisher Media | Sodium Bicarbonate base dry powder | ||||
| Expellant | Pressurized with Nitrogen (N2) Gas | ||||
| Diameter (Approx) | 86 ± 10 mm | 108 ± 10 mm | 140 ± 10 mm | 150 ± 10 mm | 175 ± 10 mm |
| Height (Approx) | 300 mm | 350 mm | 490 mm | 500 mm | 550 mm |
| Filled Weight (Approx) | 2.0 kg | 3.4 kg | 6.4 kg | 9.4 kg | 12.5 kg |
| Empty Weight (Approx) | 1.0 kg | 1.4 kg | 2.4 kg | 3.4 kg | 3.5 kg |
| Average Discharge Time | 9.0 sec. | 11.0 sec. | 14.0 sec. | 17.0 sec. | 25.0 sec. |
| Operating Temperature | -20°C to 55°C | ||||
| Working Pressure at 20°C | 15.5bar | ||||
| Maximum Service Pressure | 17.5bar | ||||
| Hydraulic Test Pressure | 35.0bar | ||||
| Fire Rating | 1A 21B | 1A 21B | 2A 55B | 3A 89B | 3A 144B |
| Approvals | BIS & CE | BIS & CE | BIS & CE | BIS & CE | BIS & CE |
| MODEL | SA-06-Water | SA-09-Water | SA-09-Water(C) |
|---|---|---|---|
| Capacity | 6 LTR | 9 LTR | 9 LTR |
| Confirming IS Code | 15683 | 15683 | 15683 |
| Type of Extinguishers | Stored Pressure | Co2 Gas Cartridge Type | |
| Type of Extinguisher Media | Soft Water | ||
| Expellant | Pressurized with Nitrogen(N2) Gas | - | |
| Diameter (Approx) | 150 ± 10 mm | 175 ± 10 mm | 175 ± 10 mm |
| Height (Approx) | 500 mm | 550 mm | 560 mm |
| Filled Weight (Approx) | 9.0 kg | 12.5 kg | 14.0 kg |
| Empty Weight (Approx) | 3.0 kg | 3.5 kg | 5.0 kg |
| Average Discharge Time | 20 sec. | 40 sec. | 40 sec. |
| Operating Temperature | -5°C to 60°C | ||
| Working Pressure at 20°C | 15.5 bar | ||
| Maximum Service Pressure | 17.5 bar | ||
| Hydraulic Test Pressure | 35.0 bar | ||
| Fire Rating | 2A | 3A | 3A |
| Approvals | BIS & CE | BIS & CE | BIS & CE |
| MODEL | SA-06-AFFF | SA-09-AFFF | SA-09-AFFF(C) |
|---|---|---|---|
| Capacity | 6 LTR | 9 LTR | 9 LTR |
| Confirming IS Code | 15683 | 15683 | 15683 |
| Type of Extinguishers | Stored Pressure | Co2 Gas Cartridge Type | |
| Type of Extinguisher Media | Soft Water | ||
| Expellant | Pressurized with Nitrogen(N2) Gas | - | |
| Diameter (Approx) | 150 ± 10 mm | 175 ± 10 mm | 175 ± 10 mm |
| Height (Approx) | 500 mm | 550 mm | 560 mm |
| Filled Weight (Approx) | 9.0 kg | 12.5 kg | 14.0 kg |
| Empty Weight (Approx) | 3.0 kg | 3.5 kg | 5.0 kg |
| Average Discharge Time | 20 sec. | 40 sec. | 40 sec. |
| Operating Temperature | -5°C to 60°C | ||
| Working Pressure at 20°C | 15.5 bar | ||
| Maximum Service Pressure | 17.5 bar | ||
| Hydraulic Test Pressure | 35.0 bar | ||
| Fire Rating | 2A 21B | 4A 144B | 4A 144B |
| Approvals | BIS & CE | BIS & CE | BIS & CE |
| MODEL | SA-02-CO2 | SA-03-CO2 | SA-4.5-CO2 |
|---|---|---|---|
| Capacity | 2kg | 3kg | 4.5kg |
| Confirming IS Code | 15683 | 15683 | 15683 |
| Type of Cylinder | Manganese Steel Cylinder (IS:7285) ISI Mark & PESO (CCE) Approved | ||
| Type of Operating Valve | Wheel/Squeeze Grip Type (IS:3224) | ||
| Expellant | Carbon Dioxide Gas (CO2) | ||
| Diameter (Approx) | 108 ± 10 mm | 140 ± 10 mm | 140 ± 10 mm |
| Height (Approx) | 530 mm | 545 mm | 700 mm |
| Filled Weight (Approx) | 9.0 kg | 12.0 kg | 16.5 kg |
| Empty Weight (Approx) | 7.0 kg | 9.0 kg | 12.0 kg |
| Average Discharge Time | 9.0 sec. | 11.0 sec. | 14.0 sec. |
| Operating Temperature | -20°C to 60°C | ||
| Working Pressure at | 20°C 90 bar | ||
| Maximum Service Pressure | 100 bar | ||
| Hydraulic Test Pressure | 250 Kg/cm2 | ||
| Fire Rating | 21B | 34B | 55B |
| Approvals | BIS & CE | BIS & CE | BIS & CE |
| MODEL | SA-02-CA | SA-04-CA | SA-06-CA |
|---|---|---|---|
| Capacity | 2kg | 4kg | 6kg |
| Confirming IS Code | 15683 | 15683 | 15683 |
| Type of Extinguishers | Stored Pressure | ||
| Type of Extinguisher Media | HFC-236fa Clean Agent | ||
| Expellant | Pressurized with Nitrogen (N2) Gas | ||
| Diameter (Approx) | 108 ± 10 mm | 140 ± 10 mm | 150 ± 10 mm |
| Height (Approx) | 420 mm | 485 mm | 510 mm |
| Filled Weight (Approx) | 4.0 kg | 8.5 kg | 9.5 kg |
| Empty Weight (Approx) | 2.0 kg | 4.5 kg | 3.5 kg |
| Average Discharge Time | 12 sec. | 14 sec. | 20 sec. |
| Operating Temperature | -20°C to 60°C | ||
| Working Pressure at 20°C | 15.5bar | ||
| Maximum Service Pressure | 17.5bar | ||
| Hydraulic Test Pressure | 35.0bar | ||
| Fire Rating | 8B | 2A 34B | 1A 55B |
| Approvals | BIS & CE | BIS & CE | BIS & CE |
| MODEL | SA-06-WET CHEMICAL | SA-09-WET CHEMICAL |
|---|---|---|
| Capacity | 6.0 | 9.0 |
| Confirming IS Code | 15683 | |
| Type of Extinguishers | Stored Pressure | |
| Type of Extinguisher Media | wet chemical | |
| Expellant | Pressurized with Nitrogen (N2) Gas | |
| Diameter (Approx) | 150+-10MM | 175+-10MM |
| Height (Approx) | 500 mm | 550 mm |
| Filled Weight (Approx) | 9.0 kg | 12.5 kg |
| Empty Weight (Approx) | 3.0 kg | 3.5 kg |
| Average Discharge Time | 20 sec. | 42 sec. |
| Operating Temperature | -5°C to 60°C | |
| Working Pressure at 20°C | 15.5bar | |
| Maximum Service Pressure | 17.5bar | |
| Hydraulic Test Pressure | 35.0bar | |
| Fire Rating | 3A 75F | 4A 75 F |
| Approvals | BIS & CE | BIS & CE |
