Shine Technologies

Varachha, Surat, Gujarat

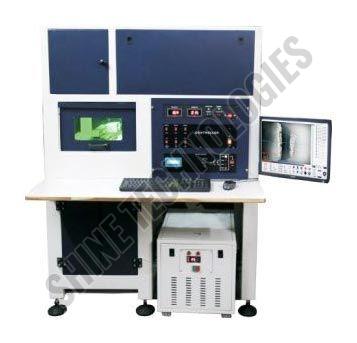

Our company is a distinguished manufacturer & exporter of diamond cutting lasermax green based in gujarat, india. The diamond cutting machine we offer is widely acclaimed for its smooth performance, durability and long service life. Owing to our efficient logistic network, customers can rely on us for delivering any order of diamond cutting lasermax green within the postulated time.

Technical Specification :

• Laser System :
• DPSSL (nd: yag diode pumped)
• Diode Module: northrop, premium, premium plus
• 532nm wavelength
• Tem00 mode
• 24watt q-switched output @ 10 khz
• 1 to 25 khz pulse repetition rate

CNC System :

• 13513575mm axis travel
• 6250 steps/mm resolution
• 1 accuracy
• Repeatability 3/25 bidirectional
• AC servo driver of standard company like panasonic, fuji

Computer System :

• Intel pentium core processor cpu
• 2GB Ram
• 80GB hard disk
• Keyboard- mouse
• 17" lcd screen monitor

Electrical Supply :

• Single phase 230v ac
• Room temperature :
• 18 to 30 c
• Dimension :
• 4ft length 3ft width 5ft height
• Electronics :
• RF driver
• Single phase power supply
• Common controller
• Cooling system :
• 230v single phase

Software Features :

Sawing program facilities :

• Parameter wise auto frequency set for good quality
• Fully automization of light, air, laser beam control, ampere setting and auto frequency
• Cutting time spacebar to focus up and down for checking diamond
• Save current cutting stone and give choice name
• Cutting time edit stone depth
• When power failure then after by restarting pc software automatically restore last cutting data
• Separate saw file for particular watt
• Cutting time to stroke length short and long
• Very easy to operate software by operator
• Single side and two side sawing facility available
• Bending can be possible

Other Features :

• Good quality and stability of the laser beam throughout working range from 8 to 16 watt
• very low breakage
• Lowest weight loss
• Power saving compared to 3 phase lamp pump laser machine
• Chiller with inbuilt compressor
• Highly accurate x-y-z axis servo motor of standard company like panasonic, fuji
• Very low cost operating

Sawing fixtures features :

360 fixture :

• Stepper motors resolution is 1.8
• Highly accurate design
• 180 and 360 movement possible for examine diamonds
• Single degree movement possible

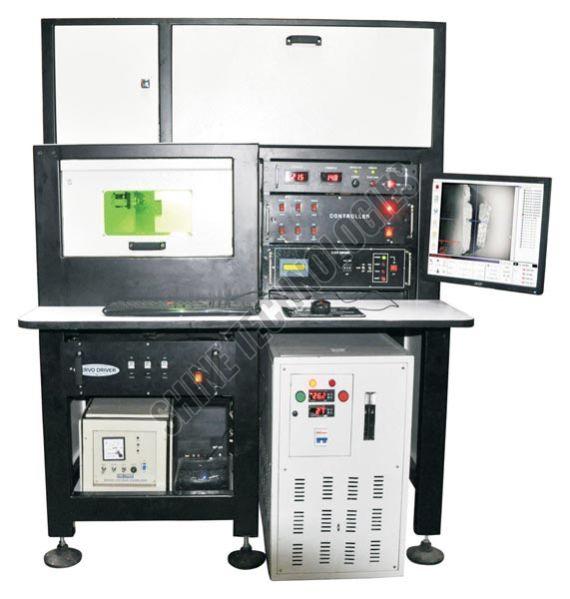

Buyers can contact us for obtaining Lasermax Sawing Diamond Cutting Machine at market leading prices! The company is involved in the business of manufacturing and exporting high performance Lasermax Sawing Diamond Cutting Machine. Superb performance, sturdy construction, low maintenance, etc., are some of the highlighting features of our machine owing to which it is widely in demand. We are capable of meeting bulk orders with ease.

Technical Specification :

• Laser System :
  • DPSS (ND YAG Diode Pumped)
  • Diode Module : Northrop, Premium, Premium Plus
  • 1064nm Wavelength
  • Tem00 Mode
  • 24watt Q-switched Output @ 10 KHz
  • 1 to 25 KHz Pulse Repetition Rate

• CNC System :
  • 135×135×75mm Axis Travel
  • 6250 Steps/mm Resolution
  • 2µ Accuracy
  • Repeatability 3µ/25µ Bidirectional
  • AC Servo Driver of  standard company like Panasonic, Fuji

• Computer System :
  • Intel Pentium Core Processor CPU
  • 2GB RAM
  • 80GB Hard Disk
  • Keyboard- Mouse
  • 17" LCD Screen Monitor

• Electrical Supply:
  • Single Phase 230V AC

• Room Temperature :
  • 18° to 30° C

• Dimension :
  • 4ft Length × 3ft Width × 5ft Height

• Electronics :
  • RF Driver
  • Single Phase Power Supply
  • Common Controller

• Cooling System :
  • 230V Single Phase



Software Features :
Sawing Program Facilities :

• Parameter wise Auto Frequency set for Good Quality
• Fully automization of light, Air, Laser Beam Control, Ampere Setting and auto frequency
• Cutting time Spacebar to Focus up and Down for checking Diamond
• Save current cutting stone and give choice name
• Cutting time edit stone depth
• When Power failure then after by restarting  PC software automatically restore last cutting data
• Separate saw file for particular watt
• Cutting time to stroke length short and long
• Very Easy to Operate Software by operator
• Single side and two side sawing facility available

Other Features :

• Good Quality and stability of the Laser beam throughout working range from 8 to 16 watt
• Very low breakage
• Lowest weight loss
• Power saving compared to 3 phase Lamp Pump Laser Machine
• Chiller with inbuilt Compressor
• Highly accurate X-Y-Z Axis Servo motor of standard company like Panasonic, Fuji
• Very low cost operating

Sawing Fixture’s Features :

• 180° Fixture :
  • Stepper motor’s resolution is 1.8°
  • Single side and two side both designs available
  • Highly accurate design
  • 180° movement  possible for examine diamonds
