Optical Machine

We offer a complete product range of Diode Laser System

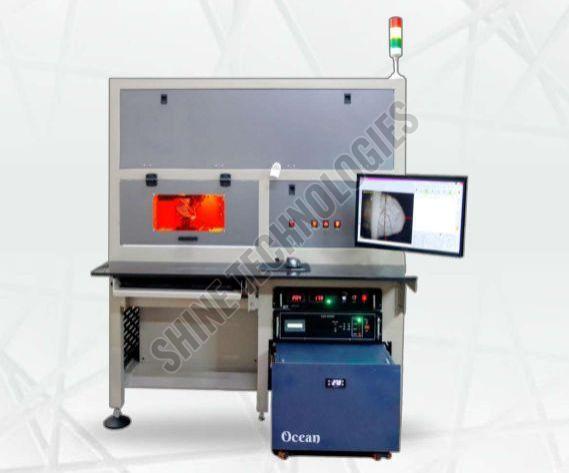

Diode Laser System

Diode Laser System
  • Min. Order (MOQ) 1 Piece
  • Dimension 1315 mm*665 mm*1480 mm
  • Electrical Requirment AC 208-230V, 60 Hz, 5 Amps.
  • Chiller Requirement of External Chiller.

Special Features:

  • Low Weightloss.
  • CVD Slice & CVD Coring
  • Next to "Nil” Breakage Ratio.
  • Smooth Cutting Surface.
  • Easy and Smart Program.
  • High Production.
  • Auto Image Capture.
  • Advance Software Feature.

Laser

Wavelength 1064 mm
Output Power @ 7.5 KHz, Watts 22 W
Transverse Mode TEMoo
Beam Diameter, mm 1
Beam Quality (M2) <1.2
Pulse repetition frequency (PRF), KHz : 44946
Pulse width @ 7-10 KHz, ns 90
Pulse Stability @ 10 KHz (RMS) 3
Polarization Liner (Vertical)
Output Stability (% Over 8 hrs) 1 Micron or better
Working Temp © 25

CNC SYSTEM

Axis Travel 135 mm* 135 mm*75 mm
Resolution 1 Micron or better
Accuracy 2 Micron / 25 mm
Repeatability 2 Micron / 25 mm bi Directional
Drive Servo Drive with Encoder.

Catalogue


Download Detail File : Click Here
