Medical Laser

Our product range contains a wide range of Green Fiber Diode Laser System and Green Diode Laser System

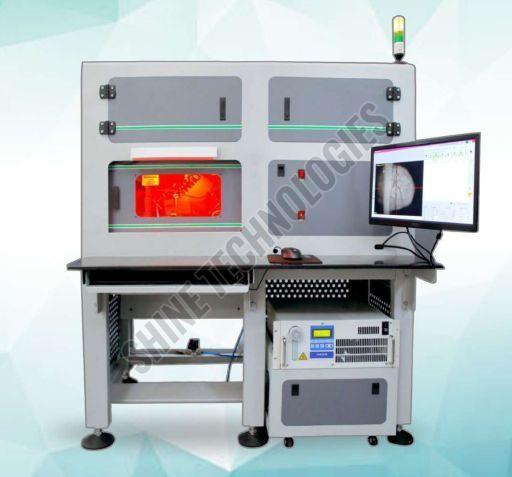

Green Fiber Diode Laser System

Green Fiber Diode Laser System
  • Min. Order (MOQ) 1 Piece
  • Dimension 1270 mm*620 mm*1380 mm
  • Electrical Requirment Ac 208-230v, 60 Hz, 5 Amps.
  • Chiller Requirement of External Chiller.

Special Features:

  • Low Weightloss.
  • Multitop Cutting in Only One Set-up.
  • Next to "Nil” Breakage Ratio.
  • Smooth Cutting Surface.
  • Easy and Smart Program.
  • High Production.
  • Auto Image Capture.
  • Advance Software Feature.
  • 70% less Electricity bill compare to any other Green Machine.

Laser

Wavelength 532nm
Output Power @ 7.5 KHz, Watts 20 W
Transverse Mode TEMoo
Beam Diameter, mm 0.4
Beam Quality (M2) <1.2
Pulse repetition frequency (PRF), KHz : 1-20
Pulse width @ 7-10 KHz, ns 70
Pulse Stability @ 10 KHz (RMS) 3
Polarization Liner (Vertical)
Output Stability (% Over 8 hrs) 1
Working Temp © 20

CNC System

Axis Travel 135 mm* 135 mm*75 mm
Resolution 1 Micron or better
Accuracy 2 Micron / 25 mm
Repeatability 2 Micron / 25 mm bi Directional
Drive Servo Drive with Encoder.

Download


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details

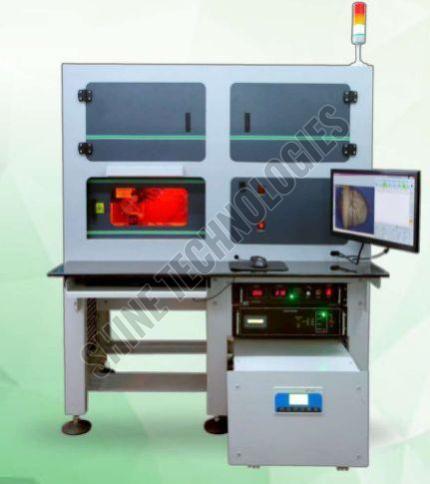

Green Diode Laser System

Green Diode Laser System
  • Min. Order (MOQ) 1 Piece
  • Dimension 1270 mm*615 mm*1480 mm
  • Electrical Requirment AC 208-230V, 60 Hz, 5 Amps.
  • Chiller Requirement of External Chiller.

Special Features:

  • Low Weightloss.
  • Multitop Cutting in Only One Set-up.
  • Next to “Nil” Breakage Ratio.
  • Smooth Cutting Surface.
  • Easy and Smart Program.
  • High Production.
  • Galvo + Axis Cutting.
  • Diode, Fiber.



Software Features:

  • Single and Two Side Cutting
  • Facecut
  • Step Banding, Focal Banding,
  • Auto Banding
  • Auto Image Capture.
  • Auto Stroke Length
  • User Friendly Software
  • Auto Power, Auto Frequency
  • Advance Software Feature.

Laser

Wavelength 532nm
Output Power @ 7.5 KHz, Watts 16 W
Transverse Mode TEMoo
Beam Diameter, mm 0.6
Beam Quality (M2) <1.2
Pulse repetition frequency (PRF), KHz : 1-20
Pulse width @ 7-10 KHz, ns 70
Pulse Stability @ 10 KHz (RMS) 3
Polarization Liner (Vertical)
Output Stability (% Over 8 hrs) 1
Working Temp © 25

CNC System

Axis Travel 135 mm* 135 mm*75 mm
Resolution 1 Micron or better
Accuracy 2 Micron / 25 mm
Repeatability 2 Micron / 25 mm bi Directional
Drive Servo Drive with Encoder.

Download


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
