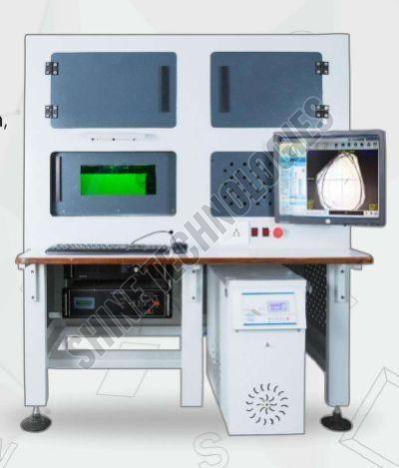

We are leaders in the market for providing best range of Fancy Shape 4P Machine
Our company is a distinguished manufacturer & exporter of diamond cutting lasermax green based in gujarat, india. The Fancy Shape 4P machine we offer is widely acclaimed for its smooth performance, durability and long service life. Owing to our efficient logistic network, customers can rely on us for delivering any order of diamond cutting lasermax green within the postulated time.
Technical Specification :
Laser System
DPSSL (nd: yag diode pumped)
Diode Module: northrop, premium, premium plus
532nm wavelength
Tem00 mode
24watt q-switched output @ 10 khz
1 to 25 khz pulse repetition rate
CNC System :
135×135×75mm axis travel
6250 steps/mm resolution
1µ accuracy
Repeatability 3µ/25µ bidirectional
AC servo driver of standard company like panasonic, fuji
Computer System :
Intel pentium core processor cpu
2GB Ram
80GB hard disk
Keyboard- mouse
17" lcd screen monitor
Electrical Supply :
Single phase 230v ac
Room temperature :
18° to 30° c
Dimension :
4ft length × 3ft width × 5ft height
Electronics :
RF driver
Single phase power supply
Common controller
Cooling system :
230v single phase
Software Features :
Sawing program facilities :
Parameter wise auto frequency set for good quality
Fully automization of light, air, laser beam control, ampere setting and auto frequency
Cutting time spacebar to focus up and down for checking diamond
Save current cutting stone and give choice name
Cutting time edit stone depth
When power failure then after by restarting pc software automatically restore last cutting data
Separate saw file for particular watt
Cutting time to stroke length short and long
Very easy to operate software by operator
Single side and two side sawing facility available
Bending can be possible
Other Features :
Good quality and stability of the laser beam throughout working range from 8 to 16 watt
very low breakage
Lowest weight loss
Power saving compared to 3 phase lamp pump laser machine
Chiller with inbuilt compressor
Highly accurate x-y-z axis servo motor of standard company like panasonic, fuji
Very low cost operating
Sawing fixture’s features :
360° fixture :
Stepper motor’s resolution is 1.8°
Highly accurate design
180° and 360° movement possible for examine diamonds
Single degree movement possible
Fancy 4P Shape As Per Heart, Pearl, Oval, Marquise, Princess, Trillion, Emerald, Cushion, Taper, Tapered Baguette Etc...
