Details :

• Super Speed USB3.0 Connection
• Transfer Data Rate up to 5 Gbit/s (625 MB/s)
• Xilinx Spartan- 6 FPGA
• Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit
• All Sensors and Limits Logic can be changed through Programming
• All Sensors and Limits can be Enable or Disable.
• 8 Digital Inputs
• 8 Digital Outputs
• 1 Analog Output ( 0 to 10 V)
• 1 PWM Output
• 2 Axis and 3 Axis Interpolation
• Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM
• DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.

The company is the noted Manufacturer & Exporter of highly efficient 4P Diamond Bruiting Lasermax Machine. We make use of high-grade parts and components for the manufacturing of the machine. The entire production process is carried out under the supervision of experts, thus there are minimal chances of defects at buyer’s end. Owing to attributes like excellent performance, sturdy construction, low maintenance, etc. our 4P Diamond Bruiting Lasermax Machine is widely in demand.

Features:

• Area Cover 14mm*14mm
• Fancy 4P Shape as per Heart, Pear, Oval, Marquise, Princess, Trillion, Emerald, Cushion, Taper, Tapered Baguette, etc.
• Also Custom Create Shape Like Half Moon, Hexagonal, Star 34+ Shapes Support Full 4P

Technical Specification :

• Laser System :
  • DPSS (ND: YAG Diode Pumped)
  • Diode Module: Northrop, Premium, Premium Plus
  • 1064nm Wavelength
  • Tem00 Mode
  • 24watt Q-switched Output @ 10 KHz
  • 1 to 25 KHz Pulse Repetition Rate

• CNC System :
  • 135×135×75mm Axis Travel
  • 6250 Steps/mm Resolution
  • 2µ Accuracy
  • Repeatability 3µ/25µ Bidirectional
  • AC Servo Driver of  standard company like Panasonic, Fuji

• Computer System :
  • Intel Pentium Core Processor CPU
  • 2GB RAM
  • 80GB Hard Disk
  • Keyboard- Mouse
  • 17" LCD Screen Monitor

• Electrical Supply :
  • Single Phase 230V AC

• Room Temperature :
  • 18° to 30° C

• Dimension :
  • 4ft Length × 3ft Width × 5ft Height

• Electronics :
  • RF Driver
  • Single Phase Power Supply
  • Common Controller
  • Cooling System:
  • 230V Single Phase

Software Features :
4 Process Program Facilities :

• Parameter wise Auto Frequency set for Good Quality
•  Fully automization of light, Air, Laser Beam Control, Ampere Setting and auto frequency
• Diameter wise setting of  margin in Table
• Diameter wise setting of  Parameter and current
• Separate saw file for range of diameter of diamonds
• Separate parameter file for each application (Table, Crown, Bruiting, Cone)
• Diameter Increase & Decrease as per marking
• Very Easy to Operate Software by operator
• When Power failure then after by restarting  PC software automatically restore last cutting data
• Average 250 to 300 Diamond cut in 12 hours (it’s depend on size)

Other Features :

• Good Quality and stability of the Laser beam throughout working range from 4 to 12 watt
• Very low breakage
• Power saving compared to 3 phase Lamp Pump Laser Machine
• Chiller with inbuilt Compressor
• Highly accurate X-Y-Z Axis Servo motor of standard company like Panasonic, Fuji
• USB based motion driver
• Very low cost operating

4Process Fixture’s Features :

• High Speed motor for good quality and Production
• Small in size
• Standard company’s motor is used(Mdrive23 Plus and Mdrive17)

• Few Specifications of Mdrive motors :
  • Single Supply:from +12 up to +75VDC or 120 and 240 VAC
  • 20 microstep resolutions up to 51200 steps
  • Highly integrated microstepping drive and high torque 1.8° 2-phase stepper motor
  • Graphical user interface provided for quick and easy parameter setup



we have recently launched Tiny 4P version of  4P Diamond Bruiting Lasermax Machine and you can check the Image below and has specification as earlier model but vary in size

Our company is a distinguished manufacturer & exporter of diamond cutting lasermax green based in gujarat, india. The diamond cutting machine we offer is widely acclaimed for its smooth performance, durability and long service life. Owing to our efficient logistic network, customers can rely on us for delivering any order of diamond cutting lasermax green within the postulated time.

Technical Specification :

• Laser System :
• DPSSL (nd: yag diode pumped)
• Diode Module: northrop, premium, premium plus
• 532nm wavelength
• Tem00 mode
• 24watt q-switched output @ 10 khz
• 1 to 25 khz pulse repetition rate

CNC System :

• 13513575mm axis travel
• 6250 steps/mm resolution
• 1 accuracy
• Repeatability 3/25 bidirectional
• AC servo driver of standard company like panasonic, fuji

Computer System :

• Intel pentium core processor cpu
• 2GB Ram
• 80GB hard disk
• Keyboard- mouse
• 17" lcd screen monitor

Electrical Supply :

• Single phase 230v ac
• Room temperature :
• 18 to 30 c
• Dimension :
• 4ft length 3ft width 5ft height
• Electronics :
• RF driver
• Single phase power supply
• Common controller
• Cooling system :
• 230v single phase

Software Features :

Sawing program facilities :

• Parameter wise auto frequency set for good quality
• Fully automization of light, air, laser beam control, ampere setting and auto frequency
• Cutting time spacebar to focus up and down for checking diamond
• Save current cutting stone and give choice name
• Cutting time edit stone depth
• When power failure then after by restarting pc software automatically restore last cutting data
• Separate saw file for particular watt
• Cutting time to stroke length short and long
• Very easy to operate software by operator
• Single side and two side sawing facility available
• Bending can be possible

Other Features :

• Good quality and stability of the laser beam throughout working range from 8 to 16 watt
• very low breakage
• Lowest weight loss
• Power saving compared to 3 phase lamp pump laser machine
• Chiller with inbuilt compressor
• Highly accurate x-y-z axis servo motor of standard company like panasonic, fuji
• Very low cost operating

Sawing fixtures features :

360 fixture :

• Stepper motors resolution is 1.8
• Highly accurate design
• 180 and 360 movement possible for examine diamonds
• Single degree movement possible

Special Features:

• Low Weightloss.
• CVD Slice & CVD Coring
• Next to "Nil” Breakage Ratio.
• Smooth Cutting Surface.
• Easy and Smart Program.
• High Production.
• Auto Image Capture.
• Advance Software Feature.

Buyers can contact us for obtaining Lasermax Sawing Diamond Cutting Machine at market leading prices! The company is involved in the business of manufacturing and exporting high performance Lasermax Sawing Diamond Cutting Machine. Superb performance, sturdy construction, low maintenance, etc., are some of the highlighting features of our machine owing to which it is widely in demand. We are capable of meeting bulk orders with ease.

Technical Specification :

• Laser System :
  • DPSS (ND YAG Diode Pumped)
  • Diode Module : Northrop, Premium, Premium Plus
  • 1064nm Wavelength
  • Tem00 Mode
  • 24watt Q-switched Output @ 10 KHz
  • 1 to 25 KHz Pulse Repetition Rate

• CNC System :
  • 135×135×75mm Axis Travel
  • 6250 Steps/mm Resolution
  • 2µ Accuracy
  • Repeatability 3µ/25µ Bidirectional
  • AC Servo Driver of  standard company like Panasonic, Fuji

• Computer System :
  • Intel Pentium Core Processor CPU
  • 2GB RAM
  • 80GB Hard Disk
  • Keyboard- Mouse
  • 17" LCD Screen Monitor

• Electrical Supply:
  • Single Phase 230V AC

• Room Temperature :
  • 18° to 30° C

• Dimension :
  • 4ft Length × 3ft Width × 5ft Height

• Electronics :
  • RF Driver
  • Single Phase Power Supply
  • Common Controller

• Cooling System :
  • 230V Single Phase



Software Features :
Sawing Program Facilities :

• Parameter wise Auto Frequency set for Good Quality
• Fully automization of light, Air, Laser Beam Control, Ampere Setting and auto frequency
• Cutting time Spacebar to Focus up and Down for checking Diamond
• Save current cutting stone and give choice name
• Cutting time edit stone depth
• When Power failure then after by restarting  PC software automatically restore last cutting data
• Separate saw file for particular watt
• Cutting time to stroke length short and long
• Very Easy to Operate Software by operator
• Single side and two side sawing facility available

Other Features :

• Good Quality and stability of the Laser beam throughout working range from 8 to 16 watt
• Very low breakage
• Lowest weight loss
• Power saving compared to 3 phase Lamp Pump Laser Machine
• Chiller with inbuilt Compressor
• Highly accurate X-Y-Z Axis Servo motor of standard company like Panasonic, Fuji
• Very low cost operating

Sawing Fixture’s Features :

• 180° Fixture :
  • Stepper motor’s resolution is 1.8°
  • Single side and two side both designs available
  • Highly accurate design
  • 180° movement  possible for examine diamonds

Special Features:

• Low Weightloss.
• Multitop Cutting in Only One Set-up.
• Next to "Nil” Breakage Ratio.
• Smooth Cutting Surface.
• Easy and Smart Program.
• High Production.
• Auto Image Capture.
• Advance Software Feature.
• 70% less Electricity bill compare to any other Green Machine.

we are selling different type of fiber laser like marking , diamond , engraving, cutting etc. Party can contact anytime. We will give best support to customer.

we are the leading manufacturers, exporters and supplier of this products.

Special Features:

• Low Weightloss.
• Multitop Cutting in Only One Set-up.
• Next to “Nil” Breakage Ratio.
• Smooth Cutting Surface.
• Easy and Smart Program.
• High Production.
• Galvo + Axis Cutting.
• Diode, Fiber.

Software Features:

• Single and Two Side Cutting
• Facecut
• Step Banding, Focal Banding,
• Auto Banding
• Auto Image Capture.
• Auto Stroke Length
• User Friendly Software
• Auto Power, Auto Frequency
• Advance Software Feature.

Our company is a distinguished manufacturer & exporter of diamond cutting lasermax green based in gujarat, india. The Fancy Shape 4P machine we offer is widely acclaimed for its smooth performance, durability and long service life. Owing to our efficient logistic network, customers can rely on us for delivering any order of diamond cutting lasermax green within the postulated time.

Technical Specification :

Laser System

DPSSL (nd: yag diode pumped)

Diode Module: northrop, premium, premium plus

532nm wavelength

Tem00 mode

24watt q-switched output @ 10 khz

1 to 25 khz pulse repetition rate

CNC System :

135×135×75mm axis travel

6250 steps/mm resolution

1µ accuracy

Repeatability 3µ/25µ bidirectional

AC servo driver of  standard company like panasonic, fuji

Computer System :

Intel pentium core processor cpu

2GB Ram

80GB hard disk

Keyboard- mouse

17" lcd screen monitor

Electrical Supply :

Single phase 230v ac

Room temperature :

18° to 30° c

Dimension :

4ft length × 3ft width × 5ft height

Electronics :

RF driver

Single phase power supply

Common controller

Cooling system :

230v single phase

Software Features :

Sawing program facilities :

Parameter wise auto frequency set for good quality

Fully automization of light, air, laser beam control, ampere setting and auto frequency

Cutting time spacebar to focus up and down for checking diamond

Save current cutting stone and give choice name

Cutting time edit stone depth

When power failure then after by restarting  pc software automatically restore last cutting data

Separate saw file for particular watt

Cutting time to stroke length short and long

Very easy to operate software by operator

Single side and two side sawing facility available

Bending can be possible

Other Features :

Good quality and stability of the laser beam throughout working range from 8 to 16 watt

very low breakage

Lowest weight loss

Power saving compared to 3 phase lamp pump laser machine

Chiller with inbuilt compressor

Highly accurate x-y-z axis servo motor of standard company like panasonic, fuji

Very low cost operating

Sawing fixture’s features :

360° fixture :

Stepper motor’s resolution is 1.8°

Highly accurate design

180° and 360°  movement  possible for examine diamonds

Single degree movement possible

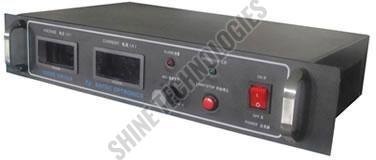

We are a reputed Manufacturer and Exporter of impeccable Single Phase Driver. We design Single Phase Driver using high quality material under the strict vigil of our experts. Our Single Phase Driver is easy to use and highly reliable in operation. We make Single Phase Driver available at market leading prices. Available In

• 24amp 25voltage
• 24amp 30voltage

Highlights

• Good current soft increasing /decreasing function efficiently avoid laser diode being damaged by inrush current.
• Extremely small ripple noise effectively protects laser diode from inrush current even when current increase or decrease.
• Excellent anti-static function efficiently avoids laser diode being damaged by static electricity.
• Very good efficiency and perfect open circuit, over current protection and over load protection, which pave way for reliable performance.
• Sensitive water detection and water temperature detection keep laser diode in good condition.
• Instant voltage/current digital indication makes the monitoring of voltage/current very easy.
• Internal/external control easily converses internal control of power supply and external control of computer.
• Standard 2U cabinet helps in easy installation.

we are manufacturing linear axis x-y and z axis. We are using very good company ball screw and ball bearing. So it is working very smooth with pulse to pulse moving. It is attached with servo motor and amplifier as well as we developing rail mount with rail it is very high accurate.

We are pioneers in making available Diode Module. The Diode Module that we offer is made using side-pumping geometry with 808nm laser diode arrays and Nd:YAG rods. Our Diode Module is widely used in various industries for applications such as laser marking, engraving, welding, cutting, drilling and etc. We have priced Diode Module fairly. Features

• CW Output power from 10W up to 500W per module
• High beam quality & low-rank Gaussian beam profile
• Long life time > 10, 000 hours
• None-microchannel and low requirement for cooling water
• Support custom package design

Details :

• Super Speed USB3.0 Connection
• Transfer Data Rate up to 5 Gbit/s (625 MB/s)
• Xilinx Spartan- 6 FPGA
• Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit
• All Sensors and Limits Logic can be changed through Programming
• All Sensors and Limits can be Enable or Disable.
• 8 Digital Inputs
• 8 Digital Outputs
• 1 Analog Output ( 0 to 10 V)
• 1 PWM Output
• 2 Axis and 3 Axis Interpolation
• Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM
• DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.

The company is the noted Manufacturer & Exporter of highly efficient 4P Diamond Bruiting Lasermax Machine. We make use of high-grade parts and components for the manufacturing of the machine. The entire production process is carried out under the supervision of experts, thus there are minimal chances of defects at buyer’s end. Owing to attributes like excellent performance, sturdy construction, low maintenance, etc. our 4P Diamond Bruiting Lasermax Machine is widely in demand.

Features:

• Area Cover 14mm*14mm
• Fancy 4P Shape as per Heart, Pear, Oval, Marquise, Princess, Trillion, Emerald, Cushion, Taper, Tapered Baguette, etc.
• Also Custom Create Shape Like Half Moon, Hexagonal, Star 34+ Shapes Support Full 4P

Technical Specification :

• Laser System :
  • DPSS (ND: YAG Diode Pumped)
  • Diode Module: Northrop, Premium, Premium Plus
  • 1064nm Wavelength
  • Tem00 Mode
  • 24watt Q-switched Output @ 10 KHz
  • 1 to 25 KHz Pulse Repetition Rate

• CNC System :
  • 135×135×75mm Axis Travel
  • 6250 Steps/mm Resolution
  • 2µ Accuracy
  • Repeatability 3µ/25µ Bidirectional
  • AC Servo Driver of  standard company like Panasonic, Fuji

• Computer System :
  • Intel Pentium Core Processor CPU
  • 2GB RAM
  • 80GB Hard Disk
  • Keyboard- Mouse
  • 17" LCD Screen Monitor

• Electrical Supply :
  • Single Phase 230V AC

• Room Temperature :
  • 18° to 30° C

• Dimension :
  • 4ft Length × 3ft Width × 5ft Height

• Electronics :
  • RF Driver
  • Single Phase Power Supply
  • Common Controller
  • Cooling System:
  • 230V Single Phase

Software Features :
4 Process Program Facilities :

• Parameter wise Auto Frequency set for Good Quality
•  Fully automization of light, Air, Laser Beam Control, Ampere Setting and auto frequency
• Diameter wise setting of  margin in Table
• Diameter wise setting of  Parameter and current
• Separate saw file for range of diameter of diamonds
• Separate parameter file for each application (Table, Crown, Bruiting, Cone)
• Diameter Increase & Decrease as per marking
• Very Easy to Operate Software by operator
• When Power failure then after by restarting  PC software automatically restore last cutting data
• Average 250 to 300 Diamond cut in 12 hours (it’s depend on size)

Other Features :

• Good Quality and stability of the Laser beam throughout working range from 4 to 12 watt
• Very low breakage
• Power saving compared to 3 phase Lamp Pump Laser Machine
• Chiller with inbuilt Compressor
• Highly accurate X-Y-Z Axis Servo motor of standard company like Panasonic, Fuji
• USB based motion driver
• Very low cost operating

4Process Fixture’s Features :

• High Speed motor for good quality and Production
• Small in size
• Standard company’s motor is used(Mdrive23 Plus and Mdrive17)

• Few Specifications of Mdrive motors :
  • Single Supply:from +12 up to +75VDC or 120 and 240 VAC
  • 20 microstep resolutions up to 51200 steps
  • Highly integrated microstepping drive and high torque 1.8° 2-phase stepper motor
  • Graphical user interface provided for quick and easy parameter setup



we have recently launched Tiny 4P version of  4P Diamond Bruiting Lasermax Machine and you can check the Image below and has specification as earlier model but vary in size

Our company is a distinguished manufacturer & exporter of diamond cutting lasermax green based in gujarat, india. The diamond cutting machine we offer is widely acclaimed for its smooth performance, durability and long service life. Owing to our efficient logistic network, customers can rely on us for delivering any order of diamond cutting lasermax green within the postulated time.

Technical Specification :

• Laser System :
• DPSSL (nd: yag diode pumped)
• Diode Module: northrop, premium, premium plus
• 532nm wavelength
• Tem00 mode
• 24watt q-switched output @ 10 khz
• 1 to 25 khz pulse repetition rate

CNC System :

• 13513575mm axis travel
• 6250 steps/mm resolution
• 1 accuracy
• Repeatability 3/25 bidirectional
• AC servo driver of standard company like panasonic, fuji

Computer System :

• Intel pentium core processor cpu
• 2GB Ram
• 80GB hard disk
• Keyboard- mouse
• 17" lcd screen monitor

Electrical Supply :

• Single phase 230v ac
• Room temperature :
• 18 to 30 c
• Dimension :
• 4ft length 3ft width 5ft height
• Electronics :
• RF driver
• Single phase power supply
• Common controller
• Cooling system :
• 230v single phase

Software Features :

Sawing program facilities :

• Parameter wise auto frequency set for good quality
• Fully automization of light, air, laser beam control, ampere setting and auto frequency
• Cutting time spacebar to focus up and down for checking diamond
• Save current cutting stone and give choice name
• Cutting time edit stone depth
• When power failure then after by restarting pc software automatically restore last cutting data
• Separate saw file for particular watt
• Cutting time to stroke length short and long
• Very easy to operate software by operator
• Single side and two side sawing facility available
• Bending can be possible

Other Features :

• Good quality and stability of the laser beam throughout working range from 8 to 16 watt
• very low breakage
• Lowest weight loss
• Power saving compared to 3 phase lamp pump laser machine
• Chiller with inbuilt compressor
• Highly accurate x-y-z axis servo motor of standard company like panasonic, fuji
• Very low cost operating

Sawing fixtures features :

360 fixture :

• Stepper motors resolution is 1.8
• Highly accurate design
• 180 and 360 movement possible for examine diamonds
• Single degree movement possible

Special Features:

• Low Weightloss.
• CVD Slice & CVD Coring
• Next to "Nil” Breakage Ratio.
• Smooth Cutting Surface.
• Easy and Smart Program.
• High Production.
• Auto Image Capture.
• Advance Software Feature.

Buyers can contact us for obtaining Lasermax Sawing Diamond Cutting Machine at market leading prices! The company is involved in the business of manufacturing and exporting high performance Lasermax Sawing Diamond Cutting Machine. Superb performance, sturdy construction, low maintenance, etc., are some of the highlighting features of our machine owing to which it is widely in demand. We are capable of meeting bulk orders with ease.

Technical Specification :

• Laser System :
  • DPSS (ND YAG Diode Pumped)
  • Diode Module : Northrop, Premium, Premium Plus
  • 1064nm Wavelength
  • Tem00 Mode
  • 24watt Q-switched Output @ 10 KHz
  • 1 to 25 KHz Pulse Repetition Rate

• CNC System :
  • 135×135×75mm Axis Travel
  • 6250 Steps/mm Resolution
  • 2µ Accuracy
  • Repeatability 3µ/25µ Bidirectional
  • AC Servo Driver of  standard company like Panasonic, Fuji

• Computer System :
  • Intel Pentium Core Processor CPU
  • 2GB RAM
  • 80GB Hard Disk
  • Keyboard- Mouse
  • 17" LCD Screen Monitor

• Electrical Supply:
  • Single Phase 230V AC

• Room Temperature :
  • 18° to 30° C

• Dimension :
  • 4ft Length × 3ft Width × 5ft Height

• Electronics :
  • RF Driver
  • Single Phase Power Supply
  • Common Controller

• Cooling System :
  • 230V Single Phase



Software Features :
Sawing Program Facilities :

• Parameter wise Auto Frequency set for Good Quality
• Fully automization of light, Air, Laser Beam Control, Ampere Setting and auto frequency
• Cutting time Spacebar to Focus up and Down for checking Diamond
• Save current cutting stone and give choice name
• Cutting time edit stone depth
• When Power failure then after by restarting  PC software automatically restore last cutting data
• Separate saw file for particular watt
• Cutting time to stroke length short and long
• Very Easy to Operate Software by operator
• Single side and two side sawing facility available

Other Features :

• Good Quality and stability of the Laser beam throughout working range from 8 to 16 watt
• Very low breakage
• Lowest weight loss
• Power saving compared to 3 phase Lamp Pump Laser Machine
• Chiller with inbuilt Compressor
• Highly accurate X-Y-Z Axis Servo motor of standard company like Panasonic, Fuji
• Very low cost operating

Sawing Fixture’s Features :

• 180° Fixture :
  • Stepper motor’s resolution is 1.8°
  • Single side and two side both designs available
  • Highly accurate design
  • 180° movement  possible for examine diamonds

Special Features:

• Low Weightloss.
• Multitop Cutting in Only One Set-up.
• Next to "Nil” Breakage Ratio.
• Smooth Cutting Surface.
• Easy and Smart Program.
• High Production.
• Auto Image Capture.
• Advance Software Feature.
• 70% less Electricity bill compare to any other Green Machine.

we are selling different type of fiber laser like marking , diamond , engraving, cutting etc. Party can contact anytime. We will give best support to customer.

we are the leading manufacturers, exporters and supplier of this products.

Special Features:

• Low Weightloss.
• Multitop Cutting in Only One Set-up.
• Next to “Nil” Breakage Ratio.
• Smooth Cutting Surface.
• Easy and Smart Program.
• High Production.
• Galvo + Axis Cutting.
• Diode, Fiber.

Software Features:

• Single and Two Side Cutting
• Facecut
• Step Banding, Focal Banding,
• Auto Banding
• Auto Image Capture.
• Auto Stroke Length
• User Friendly Software
• Auto Power, Auto Frequency
• Advance Software Feature.

Our company is a distinguished manufacturer & exporter of diamond cutting lasermax green based in gujarat, india. The Fancy Shape 4P machine we offer is widely acclaimed for its smooth performance, durability and long service life. Owing to our efficient logistic network, customers can rely on us for delivering any order of diamond cutting lasermax green within the postulated time.

Technical Specification :

Laser System

DPSSL (nd: yag diode pumped)

Diode Module: northrop, premium, premium plus

532nm wavelength

Tem00 mode

24watt q-switched output @ 10 khz

1 to 25 khz pulse repetition rate

CNC System :

135×135×75mm axis travel

6250 steps/mm resolution

1µ accuracy

Repeatability 3µ/25µ bidirectional

AC servo driver of  standard company like panasonic, fuji

Computer System :

Intel pentium core processor cpu

2GB Ram

80GB hard disk

Keyboard- mouse

17" lcd screen monitor

Electrical Supply :

Single phase 230v ac

Room temperature :

18° to 30° c

Dimension :

4ft length × 3ft width × 5ft height

Electronics :

RF driver

Single phase power supply

Common controller

Cooling system :

230v single phase

Software Features :

Sawing program facilities :

Parameter wise auto frequency set for good quality

Fully automization of light, air, laser beam control, ampere setting and auto frequency

Cutting time spacebar to focus up and down for checking diamond

Save current cutting stone and give choice name

Cutting time edit stone depth

When power failure then after by restarting  pc software automatically restore last cutting data

Separate saw file for particular watt

Cutting time to stroke length short and long

Very easy to operate software by operator

Single side and two side sawing facility available

Bending can be possible

Other Features :

Good quality and stability of the laser beam throughout working range from 8 to 16 watt

very low breakage

Lowest weight loss

Power saving compared to 3 phase lamp pump laser machine

Chiller with inbuilt compressor

Highly accurate x-y-z axis servo motor of standard company like panasonic, fuji

Very low cost operating

Sawing fixture’s features :

360° fixture :

Stepper motor’s resolution is 1.8°

Highly accurate design

180° and 360°  movement  possible for examine diamonds

Single degree movement possible

We are a reputed Manufacturer and Exporter of impeccable Single Phase Driver. We design Single Phase Driver using high quality material under the strict vigil of our experts. Our Single Phase Driver is easy to use and highly reliable in operation. We make Single Phase Driver available at market leading prices. Available In

• 24amp 25voltage
• 24amp 30voltage

Highlights

• Good current soft increasing /decreasing function efficiently avoid laser diode being damaged by inrush current.
• Extremely small ripple noise effectively protects laser diode from inrush current even when current increase or decrease.
• Excellent anti-static function efficiently avoids laser diode being damaged by static electricity.
• Very good efficiency and perfect open circuit, over current protection and over load protection, which pave way for reliable performance.
• Sensitive water detection and water temperature detection keep laser diode in good condition.
• Instant voltage/current digital indication makes the monitoring of voltage/current very easy.
• Internal/external control easily converses internal control of power supply and external control of computer.
• Standard 2U cabinet helps in easy installation.

we are manufacturing linear axis x-y and z axis. We are using very good company ball screw and ball bearing. So it is working very smooth with pulse to pulse moving. It is attached with servo motor and amplifier as well as we developing rail mount with rail it is very high accurate.

We are pioneers in making available Diode Module. The Diode Module that we offer is made using side-pumping geometry with 808nm laser diode arrays and Nd:YAG rods. Our Diode Module is widely used in various industries for applications such as laser marking, engraving, welding, cutting, drilling and etc. We have priced Diode Module fairly. Features

• CW Output power from 10W up to 500W per module
• High beam quality & low-rank Gaussian beam profile
• Long life time > 10, 000 hours
• None-microchannel and low requirement for cooling water
• Support custom package design
