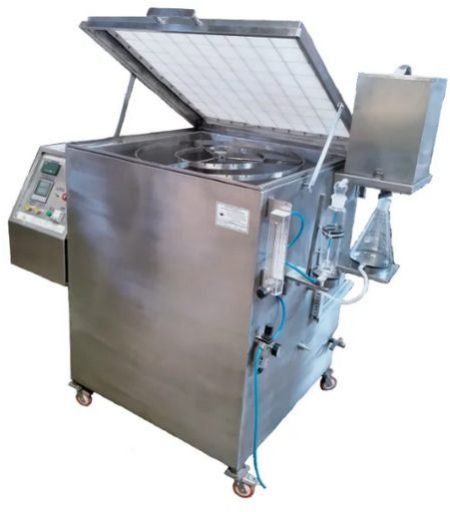

We offer the best product range of Humidity Cabinet.
Specifications
| No | Model | HUMIDITY CHAMBER ASTM D – 1748 (RUST PROTECTION BY METAL PRESERVATIVES) |
|---|---|---|
| 1 | CHAMBER SIZE | 740 X 740 X 725MM (WDH) |
| 2 | OUTER SIZE | 840 X 840 X 955 MM (WDH) |
| 3 | CAPACITY | 400 LTRS |
| 4 | MOC | INSIDE SS 316 & OUTER SS 304 |
| 5 | HEATING LOAD | 2 KW ROUND SHAPE HEATER |
| 6 | GEAR MOTOR | 3 RPM/ MINUTS |
| 7 | NO. OF SPECIMENS (STEEL PANELS) | 32 NOS. (SIZE 100 X 50 X 1MM.) |
| 8 | HUMIDITY INSIDE CABINET TEMPERATURE | 48.9 ± 1 ̊C |
| 9 | TEST HUMIDITY | 95% RH |
| 10 | INSULATION | GLASS WOOL |
| 11 | AIR MANIFOLD & DIFFUSERS | THE AIR TO THE CABINET SHALL BE DISTRIBUTED BY MEANS OF A RING MANIFOLD NEAR THE BOTTOM OF THE CABINET WITH 20 AIR DIFFUSER STONES SPACED EQUALLY AROUND THE RING. DIFFUSER STONES SHOULD BE CONNECTED TO THE RING BY THE USE OF VINYL TUBING. THESE STONES SHOULD BE INSPECTED PERIODICALLY TO DETECT POSSIBLE PLUGGING |
| 12 | ROTATING STAGE | THE STEEL TEST PANELS SHALL BE SUSPENDED IN THE HUMIDITY CABINET ON THE ROTATING STAGE. IT SHALL ROTATE AT 3 RPM/MIN ± 1 BY USE OF AN ELECTRIC GEAR MOTOR. |
| 13 | DRIP PAN | A CIRCULAR DRIP PAN SHALL BE MOUNTED UNDER THE ROTATING STAGE. USE FOR CATCH ANY OIL & CONDENSED WATER DRIPPING FROM THE PANELS. LIQUID FROM THE DRIP PAN SHALL BE PIPED TO A DRAIN OUTSIDE THE CABINET. |
| 14 | WATER LEVEL | 203. ± 0 6.4MM, THE WATER LEVELS HELD AUTOMATICALLY AT THE 203 MM LEVER THE LEVEL CONTROL PROVIDED WITH THE CABINET IS SATISFACTORY IF CONTINUES SUPPLY OF DISTILLED WATER IS AVAILABLE |
| 15 | SUPPLY | 230 VAC, SINGLE PHASE , 50 HZ |
| 16 | CABINET COVER | THE COVER SHALL CONSIST OF A METAL FRAME ON WHICH ARE TAUTLY SECURED TWO THICKNESS OF DESIRED COTTON CLOTH CONFORMING TO MILITARY SPECIFICATION MIL-C5646F. THE CLOTH SHALL HAVE A REGULAR, STANDARD, COMMERCIAL FINISH WITH NO ADDED MATERIALS THAT WOULD LESSEN ITS WETTING OUT PROPERTIES. THE DOUBLE THICKNESS OF CLOTH ON THE COVER SERVES TO PERMIT FREE EXIT AIR FOR THE CABINET. |
| 17 | CONTROL SYSTEM | 1) CONTROLLER – MICROPROCESSOR BASED PID DIGITAL TEMPERATURE CONTROLLER WITH PT- 100 SENSOR. |
| 2) CONTROLLER OUTPUT – SOLID STATE RELAY | ||
| 3) TEMPERATURE SENSOR – PT-100 | ||
| 4) HUMIDITY CONTROLLER | ||
| 5) HUMIDITY SENSOR | ||
| 6) MAIN MCB (TRIPPER) | ||
| 7) MOTOR SPEED KNOB | ||
| 8) HEATER ON/OFF BUTTON & INDICATOR | ||
| 9) MOTOR ON/OFF BUTTON & INDICATOR | ||
| 10) FLOW METER | ||
