4.0/5Our Products
Our offered Product range includes 4 Head Liquid Filling Machine, 500-1000 Ml Liquid Filling Machine and 50-250 Ml Liquid Filling Machine.
Specifications

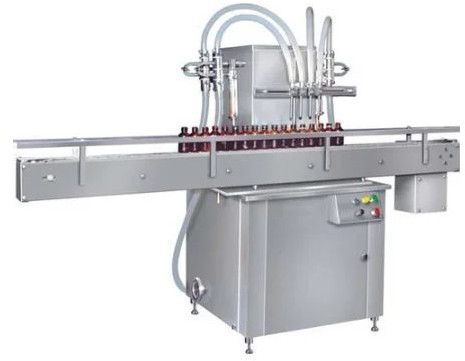

| No. | Model 1 | AUTOMATIC VOLUMETRIC LINEAR BASED FILLING MACHINE- 4 HEAD |
|---|---|---|
| 1 | APPLICATION | FRUIT JUISE (ORRANGE) |
| 2 | MACHINE TYPE | AUTOMATIC (MECHANICS WITH PNEUMATICS) |
| 3 | FILLING RANGE | 1) VFM -150 (50 ML TO 250ML) |
| 4 | NO. OF HEAD | 4 NOS |
| 5 | FILLING ACCURACY | ± 0.1 |
| 6 | FILLING CAPACITY | 20 TO 30 FILLS/MIN. (APPROX) DEPENDS ON MATERIAL CHARACTERISTICS AND PACK SIZE. (BOTTLE SHAPE ROUND) |
| 7 | MOC | GMP MODEL– CONTACT PARTS SS304 & OTHER SS |
| 8 | MOTOR | 1.5 HP MOTOR |
| 9 | SYRINGE, CAM & NOZZLES | 4 NOS |
| 10 | PNEUMAT CILYNDER | 4 NOS PNEUMATIC CILYNDER FOR BOTTLE GRIPPING |
| 11 | BELT CONVEYOR | 250 X 200 X 1800 MM (W X H X D) |
| 12 | BELT MOC | STAINLESS STEEL WITH TEFLON BELT |
| 13 | CONVEYOR MOTOR | 0.5 HP |
| 14 | AIR COMPRESSOR | 6 BAR PRESSURE 0.5 CFM (CUSTOMER SCOPE) |
Specifications
| NO. | MODEL 1 | MANUAL VOLUMETRIC FILLING MACHINE | |
|---|---|---|---|
| 1 | APPLICATION | HAIR OIL, EYE DROP, EAR DROP, SYRUP, DISH WASH LIQUID, PERFUME, HAND WASH, LIQUID SOAP, TOILET SOAP, TOILET CLEANER ADHESIVE, JUICE, LIQUID FOOD COLOUR ETC. | |
| 2 | MACHINE TYPE | SEMI-AUTOMATIC | |
| 3 | FILLING RANGE | 500 ML TO 1000 ML | |
| 4 | NO. OF HEAD | 2 NOS | |
| 5 | FILLING ACCURACY | ± 0.1 | |
| 6 | FILLING CAPACITY | 18 TO 22 FILLS/MIN. DEPENDS ON MATERIAL CHARACTERISTICS AND PACK SIZE. | |
| 7 | MOC | GMP MODEL– ALL PARTS SS304 ONLY DRIVE ATTACHED PARTS MS. | |
| 8 | MOTOR | 2 HP WITH GEAR BOX 100 RPM | |
| 9 | DRIVE | 2 HP, 0-70 RPM (VFD) | |
| 10 | SYRINGE, CAM & NOZZLES | 2 NOS | |
| 11 | CONTROL PANEL | SS WITH COMPLETE WIRING & DEMO IN OUR FACTORY | |
| 12 | VOLTAGE | 230V AC, 3Phase | |
Specifications

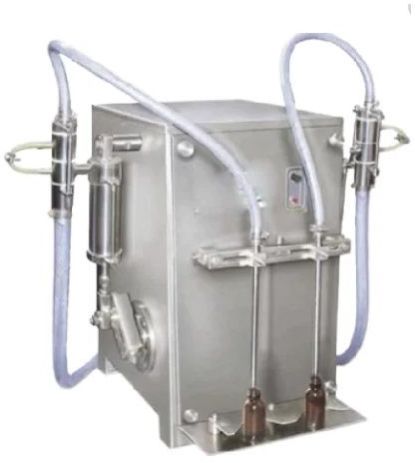

| NO. | MODEL 1 | MANUAL VOLUMETRIC FILLING MACHINE |
|---|---|---|
| 1 | APPLICATION | HAIR OIL, EYE DROP, EAR DROP, SYRUP, DISH WASH LIQUID, PERFUME, HAND WASH, LIQUID SOAP, TOILET SOAP, TOILET CLEANER ADHESIVE, JUICE, LIQUID FOOD COLOUR ETC. |
| 2 | MACHINE TYPE | SEMI-AUTOMATIC |
| 3 | FILLING RANGE | 50 ML TO 250 ML |
| 4 | NO. OF HEAD | 2 NOS |
| 5 | FILLING ACCURACY | ± 0.1 |
| 6 | FILLING CAPACITY | 18 TO 22 FILLS/MIN. DEPENDS ON MATERIAL CHARACTERISTICS AND PACK SIZE. |
| 7 | MOC | GMP MODEL– ALL PARTS SS304 ONLY DRIVE ATTACHED PARTS MS. |
| 8 | MOTOR | 0.5 HP WITH GEAR BOX 100 RPM |
| 9 | DRIVE | 0.5 HP, 0-70 RPM (VFD) |
| 10 | SYRINGE, CAM & NOZZLES | 2 NOS |
| 11 | CONTROL PANEL | SS WITH COMPLETE WIRING & DEMO IN OUR FACTORY |
| 12 | VOLTAGE | 230V AC, 3Phase |
