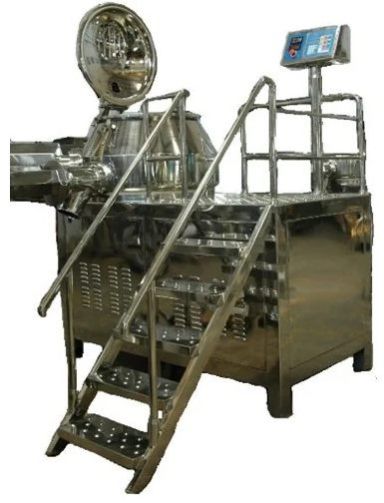

The Rapid Mixer Granulator (RMG) is an essential piece of equipment for industries requiring efficient wet mixing, dry blending, dough preparation, and granulation processes. Engineered for precision, the RMG ensures uniform granule formation through its innovative design and powerful operation.

Key Features and Applications:

• Use: The RMG is versatile, used for applications involving wet mixing, dry blending, and the preparation of dough and granulation, making it indispensable in pharmaceutical, food, and chemical manufacturing.
• Application: This machine is ideal for achieving uniform mixing and granulation in the production of tablets, pellets, and other granular materials.
• Principle: The RMG operates by utilizing a bottom entry agitator and side-mounted chopper to granulate materials. The machine agitates the bowl’s contents at a controlled speed and then uses a high-speed cutter blade to process the wet mass. The RMG’s tumbling motion ensures even distribution of dry components and uniform wetting of each granule. Granules are formed through the combined rising, whirling, and tumbling motions of the material.

Material of Construction:

• GMP Model: Fully constructed from stainless steel, providing excellent durability and compliance with industry standards.
• STD Model: Features stainless steel product contact parts with non-contact parts made of painted mild steel, offering a cost-effective solution without compromising quality.

Model Specifications:

• RMG-50: Gross Capacity: 50 Liters, Working Capacity: 40 Liters, Loading Capacity: 20 Kg, Mixing Impeller Motor: 5/7.5 HP-Dual, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 2 HP-Dual, Chopper Speed: 2800 RPM.
• RMG-100: Gross Capacity: 100 Liters, Working Capacity: 80 Liters, Loading Capacity: 40 Kg, Mixing Impeller Motor: 10/12.5 HP-Dual, Mixing Impeller Speed: 750/1440 RPM, Chopper Motor: 2/3 HP-Dual, Chopper Speed: 2800 RPM.
• RMG-150: Gross Capacity: 150 Liters, Working Capacity: 120 Liters, Loading Capacity: 60 Kg, Mixing Impeller Motor: 15 HP, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 5 HP, Chopper Speed: 2800 RPM.
• RMG-300: Gross Capacity: 300 Liters, Working Capacity: 240 Liters, Loading Capacity: 120 Kg, Mixing Impeller Motor: 30 HP, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 5 HP, Chopper Speed: 2800 RPM.
• RMG-400: Gross Capacity: 400 Liters, Working Capacity: 320 Liters, Loading Capacity: 160 Kg, Mixing Impeller Motor: 40 HP, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 5 HP, Chopper Speed: 2800 RPM.
• RMG-600: Gross Capacity: 600 Liters, Working Capacity: 500 Liters, Loading Capacity: 250 Kg, Mixing Impeller Motor: 50 HP, Mixing Impeller Speed: 1440 RPM, Chopper Motor: 7.5 HP, Chopper Speed: 2800 RPM.

This RMG is designed to meet the highest standards of performance and reliability.

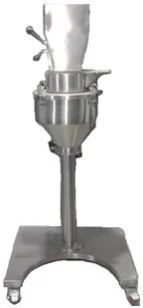

The Multi-Mill is a high-efficiency portable unit designed to reduce the particle size of dry materials through variable force swings, beaters with knife and impact edges. This versatile machine is ideal for industries such as pharmaceuticals, chemicals, cosmetics, ceramics, dyestuffs, and food products, where precise particle size control is crucial for product quality.

Key Features:

• Efficient Particle Reduction: The Multi-Mill employs variable force swing beaters with both knife and impact edges to achieve efficient particle size reduction. The materials are processed through a selected screen, which controls the final particle size, ensuring consistency and quality.
• Wide Range of Applications: This machine is widely used in various industries including pharmaceuticals, chemicals, cosmetics, ceramics, and food processing, making it a valuable asset for any production line.
• Portable and Flexible: Designed for easy movement and flexibility, the Multi-Mill can be easily integrated into different stages of production. It is suitable for a range of materials and processing conditions.

Material of Construction:

• GMP Model: Constructed entirely from stainless steel, this model ensures the highest standards of hygiene and durability, ideal for pharmaceutical and food industries.
• STD Model: Features stainless steel for product contact parts and painted mild steel for non-contact parts, offering an economical option without compromising on performance.

Model Specifications:

• 1 HP Multi-Mill:
  • Output: 5 to 50 kg/hr
  • Screen Size: 150 ID x 95 HT mm
  • Charging Height: 1070 mm
  • Discharging Height: 500 mm
  • Motor: 1 HP / 0.75 KW
• 2 HP Multi-Mill (Standard):
  • Output: 25 to 200 kg/hr
  • Screen Size: 260 ID x 140 HT mm
  • Charging Height: 1550 mm
  • Discharging Height: 750 mm
  • Motor: 3 HP / 2.2 KW
• 2 HP Multi-Mill (High Output):
  • Output: 50 to 500 kg/hr
  • Screen Size: 300 ID x 160 HT mm
  • Charging Height: 1600 mm
  • Discharging Height: 800 mm
  • Motor: 5 HP / 3.7 KW

The Multi-Mill’s robust design and precise engineering make it indispensable for achieving consistent particle sizes in various industrial applications.
