Our Product / Services

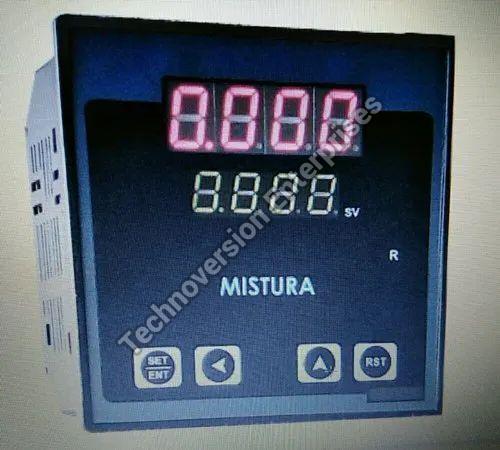

Our offered Product range includes Forward Pause Reverse Timer, Programmable Timer, Universal Multipurpose Digital Timer, Star Delta Timer and ANALOG FORWARD PAUSE REVERSE TIMER.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day

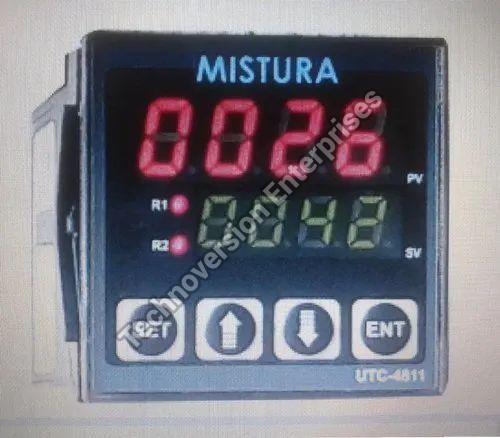

MODEL -
1) UTR - 9611
Size - 96x96x50 mm
2) UTR - 7211
Size -72x72x85 mm
3) UTR - 4811
Size - 48x48x95 mm
Display -
Upper : 7 segment, 4 digit, 0.56" RED LED – Time
Lower : 7 segment, 4 digit, 0.4" GREEN LED - Set Time
INPUT
Start Pulse - Micro switch / Limit switch / Proximity
Start Pulse Type - Power ON / Enable / Trigger
OUTPUT -
Control Output - 2 - Relay (2 C/O, 5A, 230V AC), SSR (12V DC approximately) (Optional)
SPECIFICATION -
Set Point - 1 - Set Point - (Delayed ON/ Instant ON) (Configurable)
2 - Set Point - (Cycle Mode)
Operating Mode - Delayed ON / Instant ON / Cycle Mode (Configurable)
Reset Facility - Front & Back Both Reset Available
Time Setting Range - 99.99 / 999.9 / 999 sec, 99.59 min/sec, 999.9 min, 9999 min, 999.9 hrs, 9999 for hrs, 99.59 hrs/min (Configurable)
Counting Direction - Up / Down (Configurable)
Memory retention - Yes / No (Configurable)
Parameter lock - ON / OFF (Configurable)
Power Supply - 230V AC, 10%, 50hz 90-270V AC/DC, 50/60 Hz, SMPS
Indication - LED for Relay Status Indication
Enclosure Material - Plastic
Operating Ambient Temp - o o 0 C to 55 C
Relative Humidity - Upto 95% RH Non Condensing
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
Universal Digital Timer -4 Digit Single Display Aux Supply - 230VACInput - Start Pulse (Free Potential) , ProximityOutput - Relay-1Mode - ON Delay / Off Delay / CyclicRange - 0-99.99/ 9.999/999.9/ 9999 Sec/Min/Hrs1) Model No.- UTR9601Size (HxWxD)mm - 96 X 96 X 422) Model No.- UTR7201Size (HxWxD)mm - 72 x 72 x 603) Model No.- UTR4801Size (HxWxD)mm - 48 x 48 x 70
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day

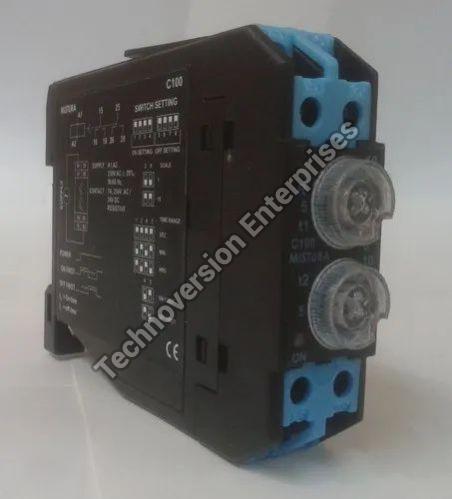

Description - Star - delta Timer
Model - SD100
Output Contact - 1 C/O relay each for star & delta
Time Ranges - Star : 30 / 60 sec
Delta : 50 / 100 msec
Supply Voltage - 415 -415V AC
230 - 230 V AC
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day

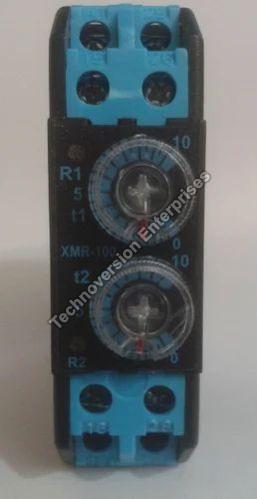

ANALOG FORWARD PAUSE REVERSE TIMER -
Model - XMR100
Mode - Forward pause Reverse
Output Contact - Relay-1 F & R, Relay-2 Pause
Time Ranges - Time: 1/10 Sec/Min/Hr,
Hold: 10/100 Sec
Supply Voltage - 230VAC/415VAC (Factory Set)
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
