Our Product / Services
Leading Manufacturer, Supplier & Retailer of Analog Current Protection Relay (Din Rail), on Delay Timer and Motor Protection Device.

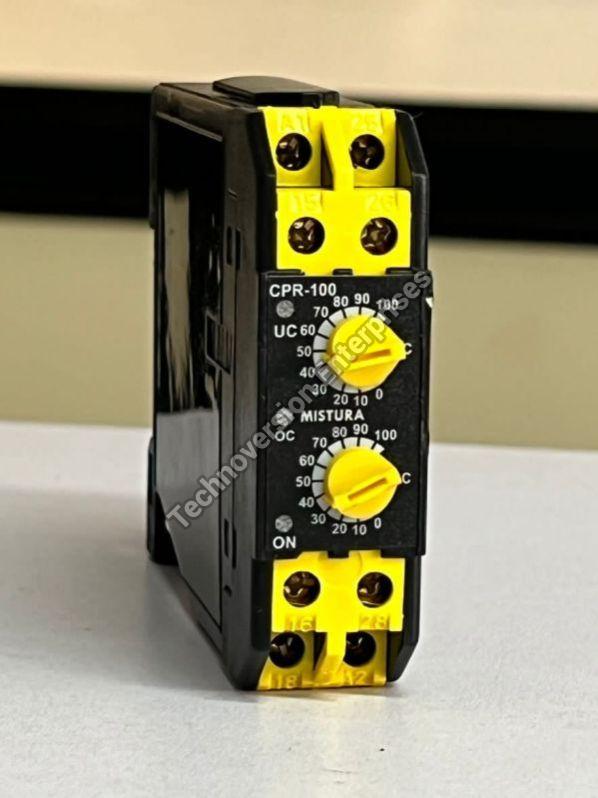

Current Protection Relay (Din Rail) Analog -
Model No.- CPR-100 (1 Phase)
Size (HxWxD)mm - Din Rail Mounting
Aux Supply - 85-270VAC, 50 Hz
Input - 100mA to 5A AC
Output - Relay-1 For Tripping
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 Day

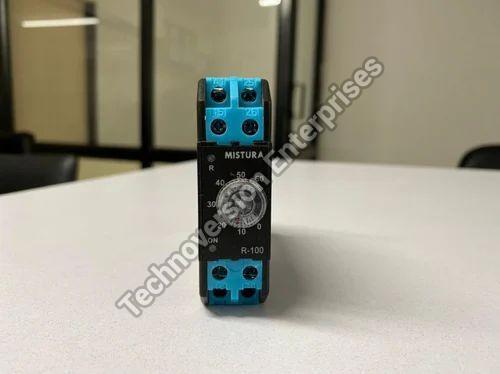

Model - R100
Description - On : On-delay
Output Contact - 1 - 1 C/O (SPDT)
Time Ranges - 30 : 30 sec 60 : 60 sec (factory set)
Supply Voltage - 230 - 230V AC, 415 -415V AC, 110-110V AC
Size - 22.5 mm (H)*75mm (W)*101 mm (D)
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 DAY

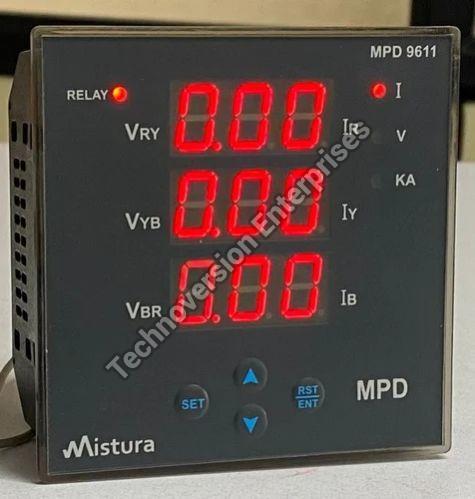

MODEL - MPD-9611N
Dimension (HxWxD) mm - 96x96x50
Panel Cutout (mm) - 92x92
User - Three Display : 7 segment, 3 digit 0.56" RED LED display,
Features -
* "True RMS
* Bright seven segment LED display for better readability.
* Auto decimal shifting for Current (resolution 0.01A or 1.0A)
INPUT
Current - 0 - 5 A
Parameters - Line Current - R Y & B
Tripping Faciities - (1) Over current, (2) Under Current, (3) Unblance, (4) Single phasing, (5) Short circuit
Over Voltage & Under Voltage Setting
Specification -
CT selection Primary - 0 200 A
CT selection Secondary Function - 5A
Accuracy - Class 1.0
Power supply - 230 AC +_ 10%, 50 Hz / 415 V AC
Enclosure Material - Plastic
Operating Ambient Temp - o 0 0 C + 55 C
Relative Humidity - upto 95% RH Non Condensing
(Notes : CT ratio Available on Customer Requirement up to 6000/5A)
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
Delivery Time : 2-3 day
