Description :

Mouse Sticky Trap Machine Specification: This machine is designed for making Rat traps on boards with hot melt adhesive. Board size Min. and Max. 10” max. width and 4” min. width Coating size 210mm (Max.) X 100mm (Min.) Max. Machine Speed 30 Pcs/min @ 15 gms per pad Main Motor 3.75 KW Max Gluing Width 200 mm Glue Tank Capacity 50 kg /hr Machine Size 4000x650x1200mm Power Requirement 10 Kw, 415V, 50HZ, 3 Phase a) Glue melt tank 1. The shell is made of steel, square steel and 1.2mm steel plate. 2. Use aluminium alloy to build. Two-layer (upper and lower) structure. 3. Adopt high-temperature-resistant high-precision gear glue pump 4. Adopt external precise filter. 5. The glue pump speed is controlled by gear motor 6. Temperature of each layer is controlled by PID system independently 7. Max. temperature is 200 8. Melt glue speed: 40kg/hr (EVA.3000 centipoise 165) 9. Heating power: app. 6 KW b) Hot Hose 1. A 3m length hot melt hose provided. 2. 230V AC , 900 w power. c) Slot die 1. Coating head: Slot die temperature-resistant alloy steel. SKD11 2. Mounted on Pneumatic piston for up – down moment 3. Coating width adjustment with shimps insert 4. Levelling in transfers direction to conveyor is provided. d) Auto Feeder, (Optional) 1. An automatic system for feeding one board at a time is provided. 2. An adjustable edge guiding scale provided for change in size. 3. A PVC belt conveyer belt provided for carrying the board.

    e) Transmission part 1. Main motor: 2 KW 1 set 2. Glue pump motor: 1.0KW 1 set 3. Main machine driven by use of belt, chain and gear to transmit. f) Pneumatic control part 1. Cylinder on slot die, feeding and stopping with head: 50mm for each 2. Suitable solenoid valves, flow control and connectors. g) Electric part 1. Main machine VFD: 2 KW; 1 piece 2. Glue tank VFD: 1 KW; 1 piece 3. Temperature controller: digital PID 4. Heaters: 8KW 5. Touch screen: 10” 1set 6. PLC: 1 set

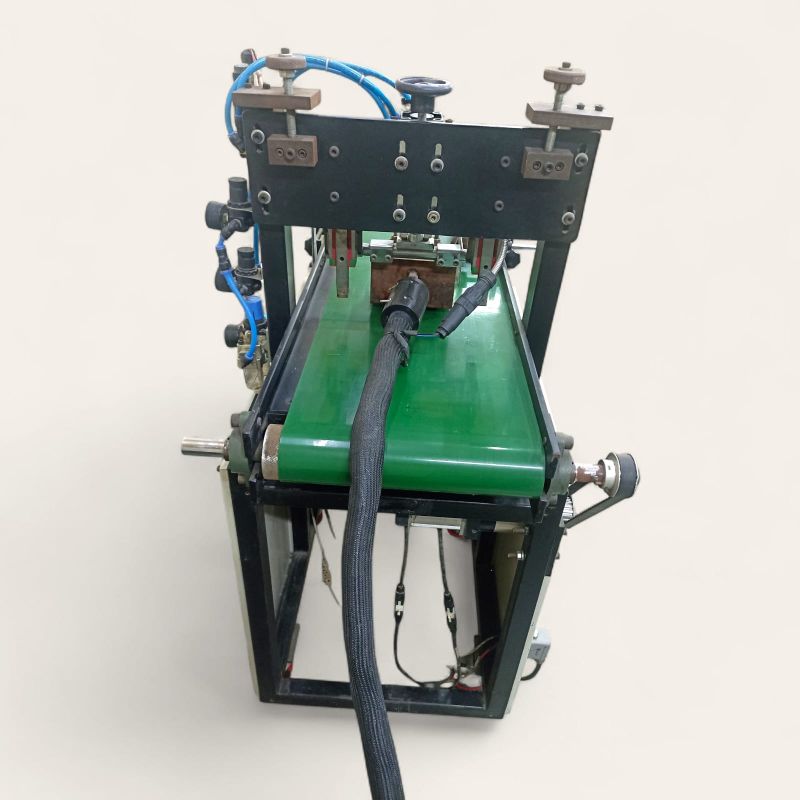

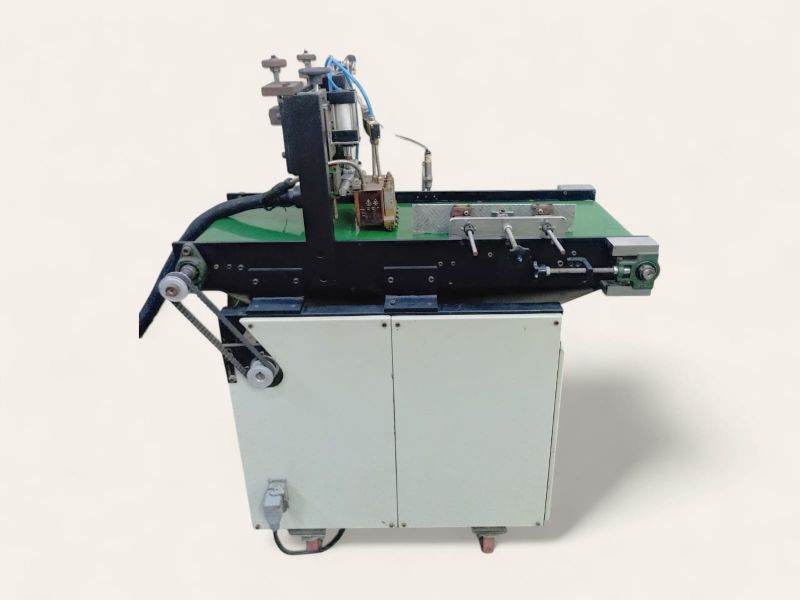

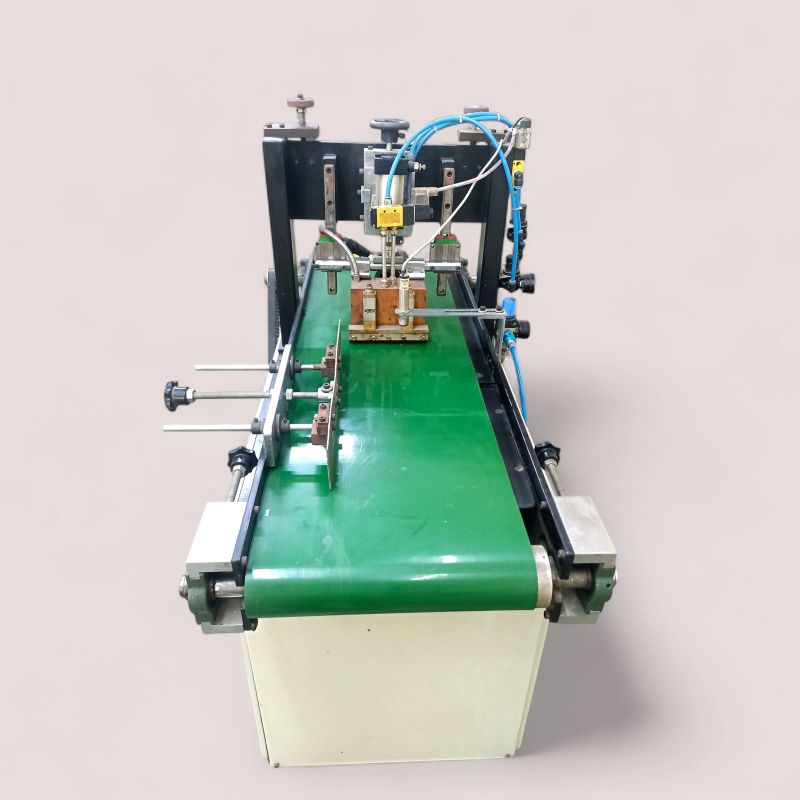

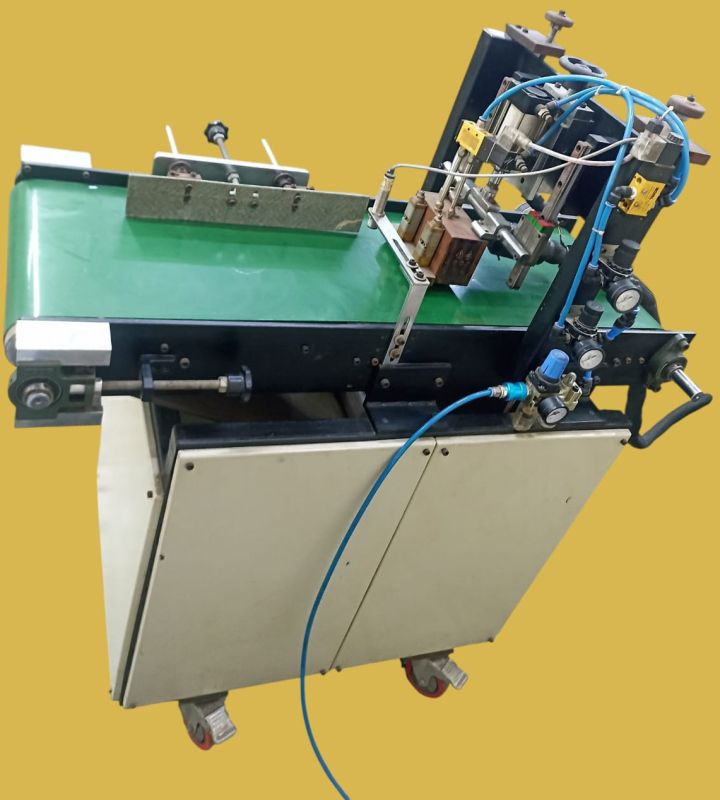

This machine is designed for making Rat traps on boards with hot melt adhesive.

Board size Min. and Max.                       10” max. width and 4” min. width

Coating size                                           200mm (Max.) X 100mm (Min.)

Max. Machine Speed                              3 Pcs/min @ 18 gms per pad

Main Motor                                             1.0 KW

Max Gluing Width                                   200 mm

Glue Tank Capacity                                5 kg/hr

Machine Size                                         1000x650x1200mm

Power Requirement 3 Kw, 415 V, 50 HZ, 3 Phase

a)      Glue melt tank

1.      The shell is made of steel, square steel and 1.2mm steel plate.

2.      Use aluminum alloy to build. Two-layer (upper and lower) structure.

3.      Adopt high-temperature-resistant high-precision gear glue pump

4.      Adopt external precise filter.

5.      The glue pump speed is controlled by gear motor

6.      Temperature of each layer is controlled by PID system independently

7.      Max. temperature is 200

8.      Melt glue speed: 5 kg/hr (EVA.3000 centipoise 165)

9.      Heating power: app. 3 KW

b)     Hot Hose

1.      2 m length hot melt hose provided.

2.      230V AC, 600 w power.

c)      Slot die

1.      Coating head: Slot die temperature-resistant alloy steel. SKD210

2.      Mounted on Pneumatic piston for up – down moment

3.      Coating width adjustment with shims insert

4.      Levelling in transfers direction to conveyor is provided.

d)     Transmission part

1.      Main motor:                                1 HP                       1 set

2.      Glue pump motor:                      0.5 HP                    1 set

3.      Main machine driven by use of belt, chain and gear to transmit.

e)      Pneumatic control part

1.      Cylinder on slot die, feeding and stopping with head: 50mm for each

2.      Suitable solenoid valves, flow control and connectors.

f)       Electric part

1.      Main machine VFD:                    1 HP;            1 piece

2.      Glue tank VFD:                          1 HP;            1 piece

3.      Temperature controller:    digital PID

4.      Heaters:                           6KW

5.      Touch screen:                  3”                  1set

6.      PLC:                                                     1 set

Description :

This machine produces the Insect Sticky Traps. These glue traps are also called as pheromone traps as it attracts and traps flying and creeping insects & pests around your plants, fruits and vegetables. It is an effective product that works in the rain, sun or wind that requires no on-going maintenance, has no poison, no chemicals and no vapours or baiting. The Hot Melt Glue Trap is a bright yellow colour plastic sheet and is coated on both the sides with the special glue. This therefore sends out a unique colourful wavelength that attracts a broad range of insects. These may include fruit flies (both male and female), black flies, white flies, shaw-flies, mosquitoes, midges and the day-to-day small flying insects & pests. However, the Blue trap has some important advantages. As well as the blue being more attractive for the thrips; it is also far less attractive to other species. This increases the specificity of the traps and avoids the complications of attracting the non-target and in particular beneficial insects, which need to be preserved. The blue traps can comfortably be used in glasshouses. Here beneficial insects are being released. Some insects are still caught but this is likely to be due to random contact. Even in the most inclement weather it will remain active and useful for around three months. Blue sticky traps are a non toxic way to control and monitor Thrips & Leaf miners. As an integral part of integrated pest management program they can be used in commercial crops, green houses, homes, orchards, flower and vegetable gardens, anywhere insects are a problem. White sticky traps are a non toxic way to control and monitor Thrips, Leaf miners, Shore fly, Tarnished plant bug, European apple sawfly, Fungus, Gnats, Flea beetles. Raspberry beetle. Scale insects, Sciarid Flies, Nuisance flies.
