Engineering Training Equipment

Our Complete range of products are Flow Rate Measurement Trainer (VPL-TT-FRMT) and VPL-PLCS-WLC Iiot Enabled PLC Controlled Water Level Control Application Training System.

Flow Rate Measurement Trainer (VPL-TT-FRMT)

Material Steel
Driven Type Electric
Condition New
Automatic Grade Semi Automatic
Power 6-9kw
Application Laboratory
Certification ISO 9001:2008
Voltage 110V
Weight 40-60 Kg
Frequency 50 - 60 Hz
Country of Origin India
Features Block Diagram Printed On Front Panel, Transformer Based Power Supply, On Board Digital Meter, Turbine Enclosed Inside A Plastic Case For Safety, Systematic Operating Instructions
Technical Specifications Flow Rate Measurement, 1/2 HP, 230V AC, Digital Panel Meter, Potentiometer For Fluid Speed, 0 To 660 LPH, Included, Open Top Water Tank, Provided For Signal Observation, Push Button On Front Panel, Separate ON/OFF For Pump And Trainer, Manual Valve For Fluid Contro

FEATURES

Block diagram printed on front panel
Transformer based power supply
On board Digital Meter
Turbine enclosed inside a plastic case to ensure leak proofsafety measure
Strongly support by systematic operating instructions

TECHNICAL SPECIFICATIONS

Study of Flow Rate meausrement
1/2 HP, 230V AC Pump
Digital panel meter for flow rate measurement
Potentiometer for controlling the speed of fluid through pump
Rotameter in Acrylic Glass tube type placed vertically for flowrate measurement
Range : 0 to 660LPH
Signal conditioning circuit
Open top water tank
Test points are provided to observe the signals and waveforms
Push button provided on front panel to reset the counter
Separate ON/OFF switches for Pump and trainer
Manual Valve for controlling the amount of fluid flowing throughthe pipe
Inbuilt power supply
230V/50Hz mains operated.

View Complete Details

Ask Latest Price & Details

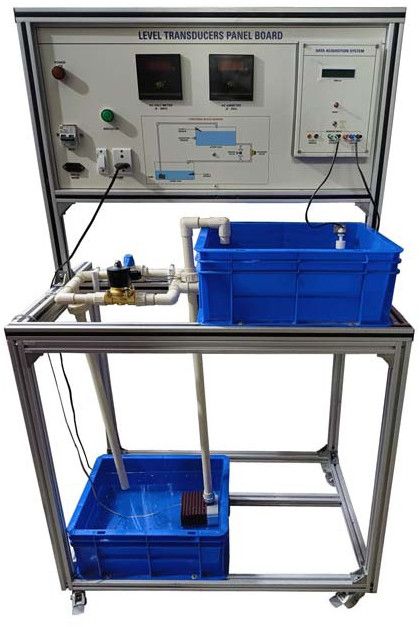

VPL-PLCS-WLC Iiot Enabled PLC Controlled Water Level Control Application Training System

Min. Order (MOQ) 1 Piece
Type Training System
Material Polycarbonate
Usage Water Pollution Control, Industrial Automation Training For Water Level Control Applications
Features Equipped With 8 Digital Inputs And 4 Digital Outputs, Supports Allenbradley/Siemens PLC Systems, Includes Ethernet Communication Support, Comes With PLC Programming Software, Allows Remote Monitoring And Control Via Mobile Devices, Includes A Durable Polycarbo

FEATURES:

The PLC system (Allenbradley/Siemens) is equipped with 8 digital inputs, 4 digital outputs, providing the necessary I/O capabilities for various industrial automation tasks.
It also features Ethernet communication support, enabling seamless integration into industrial networks for remote monitoring, control, and diagnostics.
The system comes with PLC programming software, allowing users to program the PLC using standard languages such as ladder logic or structured text.
The system allows for remote monitoring and control via mobile devices and applications, enabling real-time process oversight from anywhere.
A durable polycarbonate tank with a capacity to store water, designed specifically for accurate measurement purposes.
Equipped with three float level switches to sense the low, middle, and high water levels in both the sump tank and measuring tank, ensuring precise monitoring of water levels.
Visual indicators that clearly signal when the process begins and ends, providing immediate feed back to the operator.

More Info.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details
