8086 Microprocessor Kit With Accessories/Peripherals



SPECIFICATIONS

Compatible with 8088 Microprocessor (8 bit)

Provision to add 8087 Co- processor & 8089 I/O Processor.

256 KB of CMOS RAM using 62256

512 KB of EPROM loaded with monitor expandable further using 27512.

Battery Backup for RAM.

Total on-Board memory expansion to 384 KB.

72 programmable I/O lines through 8255.

Real time Clock interfaces.

Three 16-bit Timer/Counter through 8253.

RS 232C serial interface through 8251.

USB Interface for PC Interface

8 different level of interrupt through 8259.

1 Mask able interrupts.

8 non-maskable interrupt

On-board A/D Converter

On-board D/A Converter

On-board Relay having 2 NO and NC contacts.

On-board Opto Isolated input

On-board 8 Digital inputs

On-board 8 Digital Outputs

On-board Temperature Sensor

On-board Traffic light controller

On-board Printer Interface

20*2 LCD Display (40x2 optional)

104 Keys IBM Compatible Key Board (USB)

Two modes of Commands key board mode and serial mode.

All address data and control lines available at FRC connector as per multi-Bus.

Facility for Down/Up loading files from /to PC.

With Built in Power Supply.

8251 study card USART 8279 study card 8255 study card

SRAM and DRAM interface card with converter card DMA Controller

FEATURES:



• The PLC (Allenbradley/Siemens) system is equipped with 16 digital inputs, 16 digital outputs, 5 analog inputs, and 2 analog output, providing the necessary I/O capabilities for various industrial automation tasks. It also features Ethernet communication support, enabling seamless integration into industrial
• networks for remote monitoring, control, and diagnostics. The system comes with Licensed PLC programming software, allowing users to program the PLC using standard languages such as ladder logic or structured text.
• Real-world components liketoggle switches, proximity sensors, selector switches, visual and audio indicators, DC motors, relays, contactors, and voltage displays offer students a hands-on, practical experience with equipment they might encounter in the field.
• A Conveyor System with PLC control for the movement of bottles, including liquid filling operations and bottle counting, is aindustrial automation setup. This system is commonly used in bottling plants where bottles are moved along a conveyor, filled with liquid, and counted for packaging and distribution.
• Bottle Filling Control process monitor and control from anywhere using mobile devices and applications.

advance 8051 microcontroller trainer kitvpl-et-advhas been designed by using philips 89v51rd2 microcontroller. This controller provides in-system programming so that one may be able to write program and download directly in the controller through serial port without removing it from the system.

advance 8051 microcontroller trainer kit

specifications:

• cpu: philips 89v51rd2 microcontroller with clock frequency @11.0592 mhz.
• four seven segment displays
• 162 lcd display interface
• graphical lcd interface (opional)
• ewsn status leds 8 nos.
• 8 chanel adc interface
• dac 0800 interface
• led matrix interface (optional)
• 44 matrix keyboard interface
• ps2 keyboard interface
• traffic light interface
• stepper motor controller interface with stepper motor
• buzzer interface
• pwm & interrupt interface
• eight data switches
• lm35 temperature interface
• ir interface
• relay
• opto
• real time clock with battery backup
• at24c16 serial eeprom
• usb interface
• rs-485 interface
• rs-232 interface using rx/tx of mcu for uploading/downloading
• on-chip flash program memory with isp and iap capability

VPL-89c61is an Advanced Microcontroller Trainer Kit with 89C61 / 89C52 operating at 11.059MHz crystal with 32K user RAM.

pecifications For VPL-89C61:

• 89C61/89C52 CPU operating at 11.0592 MHz crystal.
• 32K user RAM using 62256 with battery backup using NICD battery.
• 16K bytes of powerful monitor EPROM using 27512.
• One memory socket is provided for expansion up to 64K
• On board ISP programming facility with windows based ISP software.
• 48 I/O lines using 2 nos. of 8255.
• Three channel Timer/Counter using 8253
• On board 12 bit ADC using AD574
• On board 1 channel DAC using DAC0800
• On board Real Time Clock using RTC6242
• Aux. RS-232C interface using 8251 terminated on 9 pin D-Type connector.
• 202 Alphanumeric LCD display with Backlite.
• 101 ASCII keyboard interface using 89C2051 operating @ 12MHz.
• Two external interrupts INT0 & INT1 are available at FRC connector.
• RS-232C using Rx/Tx of 8051 terminated on 9 pin D-Type connector.
• On board Single line Assembler/Disassembler
• Two modes of operation:
  • * Keyboard mode
  • * Serial mode
• Powerful software commands like EXAMINE/EDIT MEMORY, EXAMINE/EDIT REGISTERS, SINGLE STEPPING, EXECUTION, BREAK POINT can be used through ASCII keyboard or PC serial mode.
• Facility for uploading/downloading of files from/to PC.
• All Address, Data and Control Signals, are buffered and available at the FRC connector.
• Enclosed in attractive ABS plastic cabinet with cover.
• In-built Power Supply
• Users Manual, Cables & Connectors.

The Solar/Wind Energy Training System has the capability to train students in photovoltaic, small wind turbines, solar and wind hybrid systems, and the electronic components required to support these electricity-generating devices. The system allow the student to install, operate, and maintain photovoltaic and small wind systems, as well as learn troubleshooting techniques through the use of instructor-inserted faults. The training system contain the following equipment:



Mobile Workstation (Assembled):- 1 Qty.

• The Solar/Wind Energy Mobile Workstation consists of a
• sturdy, Welded Steel frame painted using powder coated paint
• for a durable surface.
• The unit is mounted on four swivel casters with a locking
• mechanism that allow easy motion and stable operation.
• The workstation includes two perforated work surfaces for
• module installation and operation.



Digital Multimeter 1Qty

• Type Digital, handheld (portable)
• Functions AC/DC voltage, dc current, resistance, continuity
• diode test, and battery test
• Accuracy ±2.0% or better
• Display 3% digit, liquid-crystal
• Safety-recessed test lead connections, low battery indication,
• audible continuity, overload protection, mounted on a base
• that clamps to the work surface using quick-lock fixations



Power Inverter with Remote Control 1 Qty.

• The Power Inverter with Remote Control consists of a 1 kW dcto- ac
• Converter that converts 12 V dc power to 120 V ac power
• Type Pure sinusoidal power inverter (with remote)
•  Input Rating 12 V dc

FEATURES:

• The PLC (Allenbradley/Siemens) system is equipped with 12 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog output, providing the necessary I/O capabilities for various industrial automation tasks.
• It also features Ethernet communication support, enabling seamless integration into industrial networks for remote monitoring, control, and diagnostics.
• The system comes withPLC programming software, allowing users to program the PLC using standard languages such as ladder logic or structured text.
• 7” HMI with Ethernet communication and Programming software.
• Real-world components liketoggle switches, proximity sensors, selector switches, visual and audio indicators, DC motors, relays, contactors, and voltage displays, AC Drive and induction motor and offer students a hands-on, practical experience with equipment they might encounter in the field.
• AC Motor Speed Control process monitor and control from anywhere using mobile devices and applications.

VPL-2131L provides a basic understanding of the concepts behind CDMA, and various issues that need to be considered in the design of a DSSS system. It has digital modulation & demodulation along with direct sequence spread spectrum (DSSS) generation and decoding, data signals, zero random bit signal generation.

VPL-2131L provides a basic understanding of the concepts behindCDMA, and various issues that need to be considered in the designof a DSSS system. It has digital modulation & demodulation alongwith direct sequence spread spectrum (DSSS) generation anddecoding, data signals, zero random bit signal generation.

FEATURES

• VLSI based design
• GOLD sequency, spread spectrum and de-spread spectrum
• Acquisition and tracking, synchronization extraction, errorcorrection encoding.
• Direct spread spectrum and de-spread spectrum
• Code division multiple access.
• Acquisition and tracking of pseudo-random sequence, bitsynchronization.
• Frame synchronization extraction, carrier recovery, errorcorrection coding and encoding.
• Plexy-glass baffle for protection.

EXPERIMENTS

• GOLD sequence characteristics
• Acquisition and tracking of GOLD sequence
• Spread spectrum and de-spread spectrum
• Carrier extraction
• PSK modulation and demodulation
• Bit synchronization extraction
• Frame synchronization extraction
• Error correction encoding
• CDMA mobile communication system

Our Microcontroller Trainer with LCD Display, USB Interface, ADC, DAC & Inbuilt Power Supply .

8031/51 Microcontroller Trainer TECHNICAL SPECIFICATIONS

• Trainer Based on 8051/89C52Microcontroller
• On board 32K RAM
• Battery backup for RAM area
• 64 K bytes of EPROM with powerful monitor program
• Total memory expandable upto 256K Bytes using four 28 pinsockets
• 3 channel programmable timer/counter using 8253
• IBM PC compatible keyboard
• 20 x 2 LCD display for standard model

[Display can be replace by 204 or 402 on request atadditional cost]

• 48 I/O lines using 2 nos. of 8255
• Onboard Analog to Digital converter using ADC0809
• Onboard Digital to Analog converter using DAC0800
• Real Onboard Time Clock
• IBM PC keyboard
• Two External interrupts INT0 & INT1
• RS-232C interface using 8251
• One serial USART interface provided by 89C51/89C52
• Auxiliary RS-232C using serial pins of 80C31
• USB Interface to connect kit to computer (OPTIONAL)
• V-USB Terminal Software to operate kit from USB Port toexecute all commands like
• Examine Mem, Execute, Assembler& Dissembler etc
• All data, address and control signals (TTL compatible) availableat FRC connector
• Powerful software commands like INSERT, DELETE, BLOCKMOVE, SET / CLEAR BREAK
• POINT, SINGLE STEP, EXAMINETHROUGH REGISTER, EXECUTE, EXAMINE, MODIFY,
• PROGRAM/ DATA/INTERNAL MEMORY etc
• Uploading/Downloading facility from PC in Intel Hex format
• Enclosed in an attractive ABS plastic cabinet with cover
• In-built Power Supply
• Users Manual.

FEATURES:



• The PLC (Allenbradley/Siemens) system is equipped with 6 digital inputs, 6 digital outputs, 2 analog inputs, and 1 analog output, providing the necessary I/O capabilities for various industrial automation tasks.
• It also features Ethernet communication support, enabling seamless integration into industrial networks for remote monitoring, control, and diagnostics.
• The system comes with PLC programming software, allowing users to program the PLC using standard languages such as ladder logic or structured text.
• Real-world components like Temperature Sensor, small heater and fan toggle switches, proximity sensors, selector switches, isual and audio indicators, DC motors, relays, contactors, and voltage displays offer students a hands-on, practical experience with equipment they might encounter in the field.
• Temperature Control process monitor and control from anywhere using mobile devices and applications

SPECIFICATIONS

CPU: Philips 89V51RD2 Microcontroller with clock frequency@11.0592MHz.

Four Seven Segment Displays

16x2 LCD Display Interface

Graphical LCD Interface

EWSN Status LED’s 8 Nos.

8 Channel ADC Interface

DAC 0800 Interface

LED Matrix Interface

4x4 Matrix Keyboard Interface

PS2 Keyboard Interface

Traffic Light Interface

Stepper Motor Controller interface with stepper motor

Buzzer Interface

PWM & Interrupt Interface

Eight Data Switches

LM35 Temperature Interface

IR Interface

Relay

Opto

Real Time Clock with battery backup

At24C16 Serial EEPROM

USB Interface

RS-485 Interface

RS-232 Interface using Rx/Tx of MCU for uploading/downloading

On-chip Flash Program Memory with ISP and IAP capability

ADC, DAC interfacing card Elevator Interfacing Card

Temperature loop interface card

Our Microcontroller Trainer KitVPL-31/51is based on 8031/8051/8751 Micro-controller included with LED Display, USB Interface & Inbuilt Power Supply.

SPECIFICATIONS FOR VPL-31/51:

• Based on 8031/8051/8751 operating at 10/12 MHz.
• On board 8K RAM.
• Battery backup for RAM area.
• 8/16K bytes of EPROM with powerful monitor program.
• Total memory expandable upto 128K Bytes.
• 48 I/O lines using 2 nos. of 8255.
• Two External interrupts INT0 & INT1.
• Hexadecimal Keyboard and Six Seven Segment displays.
• RS-232C interface using 8251.
• USB interface to connect kit to computer (optional)
• Auxiliary RS-232C using serial pins of 80C31.
• All data, address and control signals (TTL compatible) available at FRC connector.
• Powerful software commands like INSERT, DELETE, BLOCK MOVE, SET/CLEAR BREAK POINT, SINGLE STEP, EXAMINE THROUGH REGISTER, EXECUTE, EXAMINE, MODIFY, PROGRAM/DATA/INTERNAL MEMORY etc.
• Uploading/Downloading facility from PC in Intel Hex format.
• Enclosed in attractive ABS plastic cabinet with cover.
• In-built Power Supply.
• Users Manual, Cables & Connectors.

Advance 8051 Microcontroller Trainer Kit VPL-ET-ADV has been designed by using Philips 89V51RD2 Microcontroller. This controller provides in-system programming so that one may be able to write program and download directly in the controller through serial port without removing it from the system.

FEATURES:

• The PLC (Allenbradley/Siemens) system is equipped with 20 digital inputs, 12 digital outputs, 4 analog inputs, and 2 analog output, providing the necessary I/O capabilities for various industrial automation tasks.
• It also features Ethernet communication support, enabling seamless integration into industrial networks for remote monitoring, control, and diagnostics.
• The system comes with Licensed PLC programming software, allowing users to program the PLC using standard languages such as ladder logic or structured text.
• 7” HMI with Ethernet communication and Programming software.
• Real-world components like toggle switches, proximity sensors, selector switches, visual and audio indicators, DC motors, relays, contactors, and voltage displays, Baking system, Solenoid valve, BO motorand offer students a hands-on, practical experience with equipment they might encounter in the field.
• Understanding the concept of Baking System.

FEATURES:

• The platform includes a wide variety of common industrial sensors, representing different sensing principles (photoelectric, capacitive, inductive, fiber optic) and configurations (through-beam, retro- reflective, diffuse).
• Features like the protective enclosure, clear electrical terminals, and ease of operation suggest a user-friendly design suitable for beginners. The ready assignment details are particularly helpful for structured learning.
• The inclusion of a motorized module with speed control allows users to test thesensorsinadynamicenvironment, simulating real-world industrial applications. This is important for understanding sensor response in a control loop.
• It included necessary components like power supply, counter, tachometer, and relay makes the platform self- contained, minimizing the need for external equipment.

Features:

• This Conveyor belt training system is the basic training in the fields of automation technology and mechatronics.
• This setup is be modular and ergonomic learning system which allows learners to acquire essential skills in mechanical assembling, commissioning, and electrical commissioning as well as sensor and control technology.
• This setup possible to Microlevel dismantle & assembly for enhancing the skills in mechanical assembling, commissioning & electrical wiring.
• The learning system shall be suitable for use in both single workpiece flow and goods carrier flow with pallets infuture.

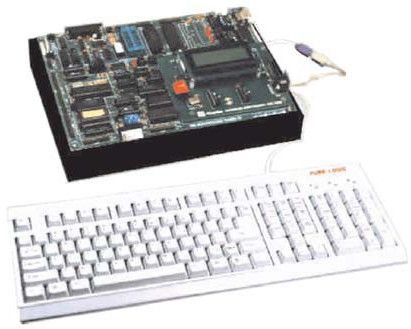

8085 Microprocessor Kit with Accessories/Peripherals and

Interfacing Devices.



SPECIFICATIONS

In addition to normal specifications

8251 study card USART 8279 study card 8255 study card

SRAM and DRAM interface card with converter card DMA Controller

Battery Backup for RAM.

Total on-Board memory expansion to 384 KB.

72 programmable I/O lines through 8255.

Real time Clock interfaces.

Three 16-bit Timer/Counter through 8253.

RS 232C serial interface through 8251.

USB Interface for PC Interface

8 different level of interrupt through 8259.

1 Mask able interrupts.

8 non-maskable interrupt

On-board A/D Converter

On-board D/A Converter

On-board Relay having 2 NO and NC contacts.

On-board Opto Isolated input

On-board 8 Digital inputs

On-board 8 Digital Outputs

On-board Temperature Sensor

On-board Traffic light controller

On-board Printer Interface

20*2 LCD Display (40x2 optional)

104 Keys IBM Compatible

Key Board (USB)

Two modes of Commands key board mode and serial mode.

All address data and control lines available at FRC connector as per multi-Bus.

Facility for Down/Up loading files from/to PC

With Built in Power Supply

FEATURES:

• A complete demonstration of conversion of Mechanical Energy into Electrical Energy
• Good quality Pelton wheel in double hemispherical cup/ bucket
• Compact Hydro Turbine with digital voltage and current measurement
• Various load applications like resistive bulb and fan are provided with the product
• Robust and transparent casing to observe Pelton wheel rotation with changing water flow
• 304 grade SS tank for storing water
•  Easily transportable



TECHNICAL SPECIFICATIONS:

• Water Pump: 0.5HP, Single Phase, 50Hz
• Ammeter: 0 to 2A
• Voltmeter: 0 to 100V
• Load Resistance SOU
• DC output: 20V, 1A
• Pelton wheel PCD: 100mm
• Nozzle Diameter: 5mm
