Leading Manufacturer, Supplier & Retailer of Regulator Type ARC Welding Machine Light Model, Treadle Shearing Machine, Regulator Type ARC Welding Machine Double Holder Heavy Model, Hydraulic Cylindrical Grinding Machine and Internal Grinding Machine.

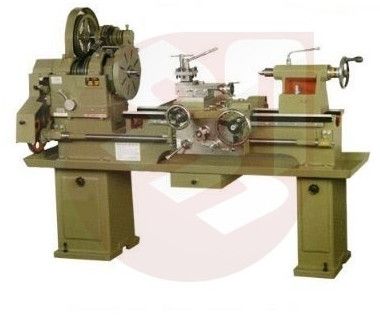

| “SHREE” Brand Cone Pulley Medium Duty Lathe Machine | ||||
| Model No. ( Series ) |
CPMD 1 ( A / B ) |
CPMD 2 ( A / B ) |
CPMD 3 ( A / B ) |
CPMD 4 ( A / B ) |
| Length of Bed | 4′ – 6″ ( 1370 mm ) |
5′ – 3″ ( 1600 mm ) |
6′ – 0″ ( 1825 mm ) |
7′ – 0″ ( 2130 mm ) |
| Admit Between Centre (Approx.) | 400 mm | 650 mm | 850 mm | 1200 mm |

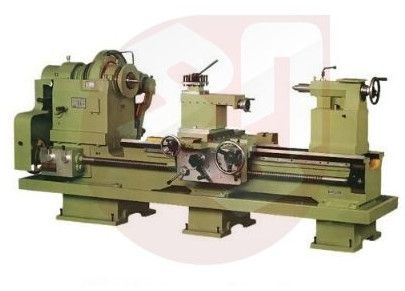

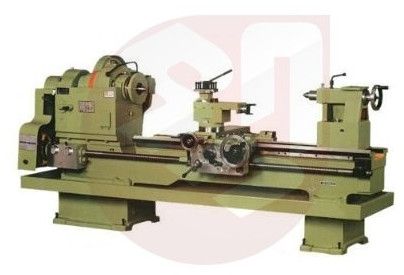

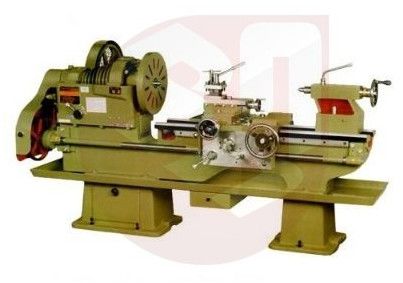

| “SHREE” Brand Cone Pulley Heavy Duty Lathe Machine 13 | ||||||
| Model No. ( Series ) |
CPHD 1 ( A / B / C / D ) |
CPHD 2 ( A / B / C / D ) |
CPHD 3 ( A / B / C / D ) |
CPHD 4 ( A / B / C / D ) |
CPHD 5 ( A / B / C / D ) |
|
| Length of Bed | 5′ – 6″ ( 1670 mm ) |
7′ – 0″ ( 2130 mm ) |
9′ – 0″ ( 2740 mm ) |
10′ – 0″ ( 3045 mm ) |
12′ – 0″ ( 3655 mm ) |
|
| Admit Between Centre (Approx.) | 450 mm | 900 mm | 1500 mm | 1800 mm | 2400 mm | |
| “SHREE” Brand Cone Pulley Pillar Drill Special Model | |
| Specification | CPPD25SP |
| Capacity | |
| Drilling capacity | 25 mm |
| Spindle | |
| Spindle Travel | 180 mm |
| Spindle Tapper | MT3 |
| No. of Spindle Speed | 8 |
| Spindle Speed Range (RPM) | 130 to 2600 |
| Working Range | |
| Pillar Diameter | 92 mm |
| Pillar Length | 1410 mm |
| Distance from spindle centre to pillar surface (max) | 250 mm |
| Spindle nose to table distance | 660 mm |
| Distance from spindle nose to base distance | 1045 mm |
| Table travel | 480 mm |
| Table size | 330 x 330 mm |
| Base Size | 370 x 580 mm |
| Motor Belt (V – Belt Nos. 1) | B – 52 |
| Electricals | |
| Electric Motor (HP / RPM) | 1 / 1440 |
| Machine Dimension & Weight (Approx.) | |
| Length x Width | 850 x 450 mm |
| Height | 1770 mm |
| Weight | 225 kg. |
| “SHREE” Brand Drilling Cum Milling Machine | ||
| Specification | DCM 19 | DCM 25 |
| Capacity | ||
| Drilling Capacity | 19 mm | 25 mm |
| Cross Travel | 275 mm | 350 mm |
| Longitudinal Travel | 150 mm | 200 mm |
| Table Size | 160 x 500 mm | 200 x 600 mm |
| Pillar Diameter | 74 mm | 87 mm |
| Pillar Length | 1200 mm | 1450 mm |
| Spindle | ||
| Spindle Nose to Table Distance | 670 mm | 690 mm |
| Spindle Nose to Base Distance | 930 mm | 1050 mm |
| Spindle Nose Center to Pillar Surface | 185 mm | 250 mm |
| Tapper in Spindle | MT – 2 | MT – 3 |
| Spindle Travel | 160 mm | 250 mm |
| Speed | ||
| Number of Speed | 8 | 8 |
| Range of Speed – RPM | 85 to 3360 | 75 to 1800 |
| Electrical | ||
| Electric Motor (HP / RPM) | 1 / 1440 | 1 / 1440 |
| Motor Belt(V – Belt Nos. 1) | A – 43 | B – 54 |
| Machine Dimension & Weight (Approx) | ||
| Length x Width (Front to Back Side) -mm | 290 x 460 | 405 x 610 |
| Height – mm | 1510 | 1730 |
| Weight – kg | 135 | 260 |
| “SHREE” Brand Cone Pulley Radial Drill Standard Model | ||
| Specification | CPRD25 | CPRD40 |
| Capacity | ||
| Drilling capacity | 25 mm | 40 mm |
| Spindle | ||
| Spindle Travel | 185 mm | 215 mm |
| Spindle Tapper | MT 3 | MT 4 |
| No. of Spindle Speed | 8 | 8 |
| Spindle Speed Range (RPM) | 130 to 2600 | 70 to 2000 |
| Working Range | ||
| Pillar Diameter | 130 mm | 170 mm |
| Pillar Length | 1265 mm | 1490 mm |
| Distance from spindle centre to pillar surface (max) | 635 mm | 790 mm |
| Spindle nose to table distance | 675 mm | 705 mm |
| Distance from spindle nose to base distance | 875 mm | 995 mm |
| Working Surface of Box-Table | 200 x 255 mm | 290 x 375 mm |
| Height of Working Table | 200 mm | 290 mm |
| Base size (Machined Area) | 585 x 915 mm | 735 x 1240 mm |
| Overall Base Size | 610 x 940 mm | 745 x 1260 mm |
| Overall height with pulley guard | 1700 mm | 1960 mm |
| Motor Belt (V-Belt) | B – 43 & A – 23 | B – 45 & A – 24 |
| Electricals | ||
| Drilling Head Motor (HP / RPM) | 1 / 1440 | 1.5 / 1440 |
| Elevator Motor (HP / RPM) | 0.5 / 1440 | 0.5 / 1440 |
| Machine Dimension & Weight (Approx.) | ||
| Length x Width | 1030 x 770 mm | 1300 x 940 mm |
| Height | 1770 mm | 2100 mm |
| Weight | 475 kg | 800 kg |
| “SHREE” Brand Cone Pulley Radial Drill Auto Feed | |
| Specification | CPRD40A |
| Capacity | |
| Drilling capacity | 40 mm |
| Spindle | |
| Spindle Travel | 215 mm |
| Spindle Tapper | MT4 |
| No. of Spindle Speed | 8 |
| Spindle Speed Range (RPM) | 70 to 2000 |
| Auto Feed Speed | 0.04 / 0.08 |
| Working Range | |
| Pillar Diameter | 170 mm |
| Pillar Length | 1490 mm |
| Distance from spindle centre to pillar surface (max) | 790 mm |
| Spindle nose to table distance | 705 mm |
| Distance from spindle nose to base distance | 995 mm |
| Working Surface of Box-Table | 290 x 375 mm |
| Height of Working Table | 290 mm |
| Base size (Machined Area) | 735 x 1240 mm |
| Overall Base Size | 745 x 1260 mm |
| Overall height with pulley guard | 1960 mm |
| Motor Belt (V-Belt) | B – 45 & A – 24 |
| Electricals | |
| Drilling Head Motor (HP / RPM) | 1.5 / 1440 |
| Elevator Motor (HP / RPM) | 0.5 / 1440 |
| Machine Dimension & Weight (Approx.) | |
| Length x Width | 1300 x 940 mm |
| Height | 2100 mm |
| Weight | 800 kg |
| “SHREE” Brand All Geared Radial Drill | |||
| Specifications | AGRD50 | AGRD65 | AGRD75 |
| Capacity | |||
| Max. Drilling Capacity in Steel (M.S.) | 50 mm | 65 mm | 75 mm |
| Max. Drilling Capacity in Cast – Iron (C.I.) | 56 mm | 70 mm | 80 mm |
| Tapping in Steel | 42 mm | 50 mm | 58 mm |
| Spindle | |||
| Spindle Travel | 250 mm | 300 mm | 330 mm |
| Spindle Taper | MT4 | MT5 | MT5 |
| No. of Spindle Speed | 9 | 9 | 9 |
| Spindle Speed Range (RPM) | 50 to 805 | 50 to 805 | 50 to 805 |
| Auto Power Feed | 0.115 | 0.115 | 0.115 |
| Optional Feed 6 | 0.13-1.10 | 0.13-1.10 | 0.13-1.10 |
| Working Range | |||
| Pillar Diameter | 280 mm | 330 mm | 355 mm |
| Max./ Min. Distance Spindle Center to Pillar Centre | 1325/615 mm | 1700/700 mm | 1800/800 mm |
| Horizontal Movement of Drilling Head | 710 mm | 1016 mm | 1420 mm |
| Max./ Min. Distance Spindle Nose to Base Plate | 1080/480 mm | 1120/460 mm | 1400/560 mm |
| Vertical Movement of Radial Arm | 600 mm | 660 mm | 680 mm |
| Working Surface of Box-Table | 560 x 460 mm | 560 x 460 mm | 560 x 460 mm |
| Height of Working Table | 400 mm | 400 mm | 400 mm |
| Base size (Machined Area) | 1020 x 800 mm | 1400 x 850 mm | 1500 x 950 mm |
| Height of the Base Plate | 190 mm | 210 mm | 210 mm |
| Electricals | |||
| Drilling Head Motor (HP / RPM) | 3/1440 | 5/1440 | 5/1440 |
| Elevating Motor (HP / RPM) | 2/1440 | 3/1440 | 3/1440 |
| Machine Dimension & Weight (Approx.) | |||
| Length x Width | 1680 x 930 mm | 2050 x 990 mm | 2100 x 990 mm |
| Height | 2360 mm | 2440 mm | 2515 mm |
| Weight | 2600 kg | 3150 kg | 3550 kg |
| “SHREE” Brand Tapping Machine | |||
| Specifications | TM6 | TM12 | TM12H |
| Capacity | |||
| Tapping Capacity | 6 mm | 12 mm | 12 mm |
| Drilling Capacity | 3 mm | 8 mm | 8 mm |
| Pillar Diameter | 47 mm | 74 mm | 75 mm |
| Table Size | 150 × 150 mm | 190 × 220 mm | 260 × 260 mm |
| Table Travel | 60 mm | – | – |
| Base Size | 370 × 250 mm | 480 × 350 mm | 550 × 410 mm |
| Spindle | |||
| Spindle Nose To Column | 80 mm | 140 mm | 375 mm |
| Spindle Travel | – | 75 mm | 75 mm |
| Spindle Nose To Base Distance | 190 mm | 450 mm | 450 mm |
| Spindle Nose To Table Distance | Movable | 380 mm | 380 mm |
| Speed | |||
| No. Of Speed | 3 | 3 | 3 |
| Range Of Speed – Forward (RPM) | 480/750/1400 | 350/620/1100 | 350/620/1100 |
| Range Of Speed – Reverse (RPM) | 480/750/1400 | 420/745/1315 | 420/745/1315 |
| Electricals | |||
| Electric Motor (HP / RPM) | 0.25/1440 | 1/1440 | 1/1440 |
| Machine Dimension & Weight (Approx.) | |||
| Length x Width | 540 x 270 mm | 600 x 370 mm | 600 x 370 mm |
| Height | 650 mm | 1245 mm | 1245 mm |
| Weight | 50 kg. | 120 kg. | 150 kg. |
| “SHREE” Brand Semi Geared Horizontal Milling Machine (Light Model) | ||
| Specification | SGHM1 | SGHM2L |
| Table | ||
| Working Surface | 750 × 175 mm | 1050 × 250 mm |
| No. of T-Slot / Size | 3 / 15 mm | 3 / 16 mm |
| Distance Between T-Slot | 62 mm | 62 mm |
| Table Swivelling | ± 45 Degree | ± 45 Degree |
| Movement | ||
| Longitudinal Manual / Auto Feed | 375 mm / 365 mm | 600 mm / 590 mm |
| Cross Manual / Auto Feed | 100 mm / N.A. | 230 mm / N.A. |
| Vertical Manual / Auto Feed | 225 mm / N.A. | 450 mm / N.A. |
| Vertical Movement
After Mounting Vertical Attachment |
120 mm | 320 mm |
| Spindle | ||
| Spindle Arbour | 25.4 mm | 25.4 mm |
| Spindle Nose Tapper | ISO30 | ISO40 |
| No. of Spindle Speed | 6 | 6 |
| Spindle Speed Range (RPM) | 65 to 560 | 50 to 525 |
| Spindle Bearing Front (Tapper Roller Bearing) | 32209 | 32212 |
| Spindle Bearing Rear (Tapper Roller Bearing) | 32207 | 32209 |
| Distance Form Base of Over Arm to Spindle Center | 125 mm | 125 mm |
| 1125 × 250 mm | 1400 × 280 mm | |
| No. of T-Slot / Size | 3 / 16 mm | 3 / 16 mm |
| Distance Between T-Slot | 63 mm | 63 mm |
| Table Swivelling | ± 25 Degree | ± 45 Degree |
| Movement | ||
| Longitudinal Manual / Auto Feed | 600 mm / 525 mm | 700 mm / 725 mm |
| Cross Manual / Auto Feed | 250 mm / N.A. | 280 mm / N.A. |
| Vertical Manual / Auto Feed | 425 mm / N.A. | 525 mm / N.A. |
| Vertical Movement
After Mounting Vertical Attachment |
300 mm | 380 mm |
| Spindle | ||
| Spindle Arbour | 25.4 mm | 25.4 mm |
| Spindle Nose Tapper | ISO40 | ISO40 |
| Size of Hole through Spindle | 22 mm | 22 mm |
| No. of Spindle Speed | 8 | 12 |
| Spindle Speed Range(RPM) | 50 to 800 | 70 to 1000 |
| Spindle Bearing Front (Tapper Roller Bearing) | 32214 | 32214 |
| Spindle Bearing Rear (Tapper Roller Bearing) | 32211 | 32211 |
| Distance Form Base of Over Arm to Spindle Center | 143 mm | 165 mm |
| “SHREE” Brand All Geared Horizontal Milling Machine | |||
| Specification | AGHM2 | AGHM3 | AGHM4 |
| Table | |||
| Working Surface | 1125 × 250 mm | 1400 × 280 mm | 1680 × 320 mm |
| No. of T-Slot / Size | 3 / 16 mm | 3 / 16 mm | 3 / 16 mm |
| Distance Between T – Slot | 63 mm | 63 mm | 63 mm |
| Table Swivelling | ± 25 Degree | ± 45 Degree | N.A. |
| Movement | |||
| Longitudinal Manual / Feed | 600 / 525 mm | 750 / 720 mm | 900 / 860 mm |
| Cross Manual / Feed | 250 / 220 mm | 250 / 220 mm | 320 / 300 mm |
| Vertical Manual / Feed | 425 / 400 mm | 525 / 500 mm | 550 / 525 mm |
| Spindle | |||
| Spindle Arbour | 25.4 mm | 25.4 mm | 25.4 mm |
| Spindle Nose Tapper | ISO40 | ISO40 | ISO40 |
| No. of Spindle Speed | 8 | 12 | 12 |
| Spindle Speed Range (RPM) | 50 to 800 | 50 to 1000 | 50 to 1000 |
| Head Swivelling to Both Side | ± 25 Degree | ± 45 Degree | ± 45 Degree |
| Spindle Bearing Front (Tapper Roller Bearing) | 32214 | 32214 | 32214 |
| Spindle Bearing Rear (Tapper Roller Bearing) | 32211 | 32211 | 32211 |
| “SHREE” Brand Vertical Turret Milling Machine | |
| Specification | VTM |
| Table | |
| Table Size | 1270 x 254 mm |
| T – Slot | 3 x 16 x 63 mm |
| Movement | |
| Travel X – Axis | 800 mm |
| Y – Axis | 400 mm |
| Z – Axis | 400 mm |
| Guide Way X – Axis | Triangle |
| Y – Axis | Triangle |
| Z – Axis | Triangle |
| Ram Travel | 480 mm |
| Spindle & Head | |
| Spindle Taper | ISO30 |
| Quill Travel | 127 mm |
| Spindle Nose To Table | 0 – 430 mm |
| Head Tilt | 90° Left & Right, 45° Front & Back |
| Speed Step Number | 16 |
| Spindle Speed | 66 – 4540 rpm |
| Auto Feeds | 0.04, 0.08, 0.15 |
| Electricals | |
| Electric Motor | 3 HP |

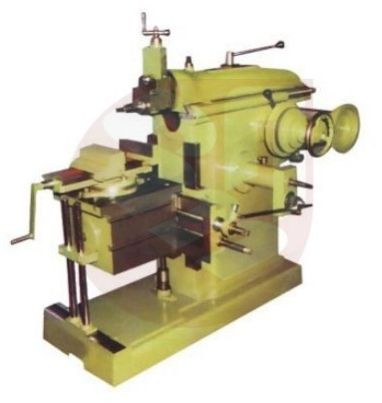

| “SHREE” Brand Cone Pulley Shapping Machine | ||||||
| Specification | CPSM14 | CPSM18 | CPSM24 | CPSM30 | CPSM36 | CPSM42 |
| Capacity | ||||||
| Stroke Capacity (Inch / mm) | 14” / 355 mm | 18” / 460 mm | 24” / 600 mm | 30” / 750 mm | 36” / 900 mm | 40”/ 1015 mm |
| Length of Ram | 660 mm | 970 mm | 1270 mm | 1473 mm | 1727 mm | 1880 mm |
| L × W of Ram Bearing | 660 × 178 mm | 685 × 250 mm | 838 × 292 mm | 990 × 317 mm | 1143 × 336 mm | 1194 × 336 mm |
| Max. & Min. Distance From Table to Ram | 342 & 25 mm | 470 & 50 mm | 475 & 76 mm | 483 & 76 mm | 508 & 102 mm | 559 & 102 mm |
| Table | ||||||
| Working Surface of Table | 305 × 203 mm | 406 × 280 mm | 610 × 356 mm | 762 × 381 mm | 914 × 432 mm | 1016 × 457 mm |
| Max. Table Travel Horizontal | 444 mm | 508 mm | 610 mm | 762 mm | 914 mm | 10637 mm |
| Max. Table Travel Vertical | 218 mm | 406 mm | 381 mm | 444 mm | 508 mm | 559 mm |
| Ang. Movement of Table | ± 90 Degree | ± 90 Degree | ± 60 Degree | ± 60 Degree | ± 60 Degree | ± 60 Degree |
| Length & Width of Base | 940 × 457 mm | 1270 × 460 mm | 1626 × 585 mm | 1880 × 660 mm | 2082 × 711 mm | 2134 × 762 mm |

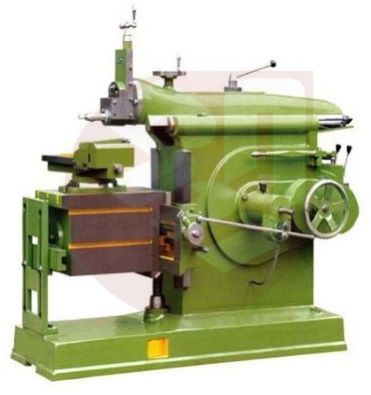

| “SHREE” Brand All Geared Shapping Machine | ||||||
| Specification | AGSM24 | AGSM36 | ||||
| Capacity | ||||||
| Stroke Capacity (Inch / mm) | 24” / 600 | 36” / 900 | ||||
| Length of Ram | 1270 mm | 1727mm | ||||
| L × W of Ram Bearing | 838 × 292 mm | 1143 × 336 mm | ||||
| Max. & Min. Distance From Table to Ram | 457 & 76 mm | 508 & 102 mm | ||||
| Table | ||||||
| Working Surface of Table | 610 × 356 mm | 914 × 432 mm | ||||
| Max. Table Travel Horizontal | 610 mm | 914 mm | ||||
| Max. Table Travel Vertical | 381 mm | 508 mm | ||||
| Ang. Movement of Table | ± 60 Degree | ± 60 Degree | ||||
| Length & Width of Base | 1626 × 585 mm | 2082 × 711 mm | ||||
| Tool Head | ||||||
| Max. Vertical Travel of Tool Slide | 146 mm | 228 mm | ||||
| Max. Swivel of Tool Head | ± 60 Degree | ± 60 Degree | ||||
| Speed & Feed | ||||||
| Range of Ram Speed in Cone Pulley | 4 | 3 | ||||
| Table Feed per Stroke of Ram | 0.229 mm | 0.229 mm | ||||
| Electrical | ||||||
| Electric Motor (HP / RPM) | 3 / 1440 | 5 / 1440 | ||||
| Machine Dimension & Weight (Approx.) | ||||||
| Length x Width (mm) | 1090 x 1980 mm | 1400 x 2350 mm | ||||
| Height | 1600 mm | 1800 mm | ||||
| “SHREE” Brand Slotting Machine | ||||||
| Specification | SM6 | SM10 | SM12 | |||
| Capacity | ||||||
| Stroke Capacity – INCH / MM | 6” / 150 mm | 10” / 250 mm | 12” / 300 mm | |||
| Longitudinal Travel | 200 mm | 230 mm | 330 mm | |||
| Cross Travel | 110 mm | 130 mm | 150 mm | |||
| Cross Slide Size | 280 × 335 mm | 280 × 335 mm | 340 × 340 mm | |||
| Ram | ||||||
| Ram Adjustment | 150 mm | 250 mm | 300 mm | |||
| Boring Size in Ram | 25.4 mm | 25.4 mm | 25.4 mm | |||
| Distance from Tool to Column | 210 mm | 330 mm | 450 mm | |||
| Distance from Cross Slide Surface to Head | 310 mm | 410 mm | 530 mm | |||
| Speed | ||||||
| Number of Speed | 3 | 3 | 3 | |||
| Counter Belt(V – Belt Nos. 1) | B – 41 | B – 45 | C – 49 | |||
| Electricals | ||||||
| Electric Motor (HP / RPM) | 1 / 1440 | 1.5 / 1440 | 2 / 1440 | |||
| Motor Belt(V – Belt Nos. 1) | B – 52 | B – 54 | B – 58 | |||
| Machine Dimension & Weight (Approx.) | ||||||
| Length x Width | 500 × 950 mm | 550 × 1150 mm | 600 × 1350 mm | |||
| Height | 1150 mm | 1350 mm | 1450 mm | |||
| Weight | 300 kg. | 400 kg. | 500 kg | |||
| “SHREE” Brand Mechanical Hacksaw Machine | |
| Specification | MH14 |
| Cutting Capacity – Round | 150 mm |
| Cutting Capacity – Square | 125 mm |
| Blade Size | 350 mm |
| Motor (HP / RPM) | 1 / 1440 |

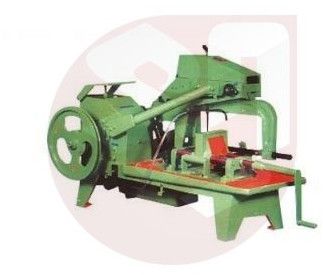

| “SHREE” Brand Semi Hydraulic Hacksaw Machine | |
| Specification | SHH14 |
| Cutting Capacity – Round | 175 mm |
| Cutting Capacity – Square | 150mm |
| Blade Size | 350 mm |
| Motor (HP / RPM) | 1 / 1440 |
| “SHREE” BRAND FULLY HYDRAULIC HACKSAW MACHINE | ||||||
| Specification | FHH14 | FHH16 | FHH18 | FHH20 | FHH24 | FHH30 |
| Cutting Round | 175 mm | 200 mm | 250 mm | 300 mm | 350 mm | 425 mm |
| Cutting Capacity | 150 mm | 150 mm | 200 mm | 250 mm | 350 mm | 425 mm |
| Blade Size | 350 mm | 400 mm | 450 mm | 500 mm | 600 mm | 750 mm |
| Motor (HP / RPM) | 1 / 1440 | 1 / 1440 | 1.5 / 1440 | 2 / 1440 | 5 / 1440 | 5 / 1440 |
| “SHREE” Brand Hinge Type Bandsaw Machine | |||||||
| Specification | HTB200 | HTB250 | HTB300 | HTB350 | HTB400 | HTB450 | HTB500 |
| Capacity | |||||||
| Cutting Capacity – Round | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm | 450 mm | 500 mm |
| Cutting Capacity – Square | 175 mm | 225 mm | 275 mm | 325 mm | 375 mm | 425 mm | 475 mm |
| Saw Blade Dimension (mm) | 3000 × 27 × 0.9 | 3300 × 27 × 0.9 | 3760 × 34 × 1.1 | 4100 × 34 × 1.1 | 4420 × 34 × 1.1 | 4570 × 34 × 1.1 | 4600 × 34 × 1.1 |
| Blade Speed(meter/min) | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 |
| Electricals | |||||||
| Drive Motor(HP / RPM) | 1 / 1440 | 1.5 / 1440 | 2 / 1000 | 2 / 1000 | 2 / 1000 | 2 / 1000 | 3 / 1000 |
| Coolant Pump Motor(HP / RPM) | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 | 0.25 / 2800 | 0.25 / 2800 |
| Machine Dimension & Weight (Approx.) | |||||||
| Length x Width | 1630 × 750 mm | 2000 × 750 mm | 2400 × 930 mm | 2550 × 930 mm | 2650 × 930 mm | 2750 × 930 mm | 3000 × 930 mm |
| Height | 870 mm | 950 mm | 1050 mm | 1050 mm | 1215 mm | 1225 mm | 1400 mm |
| Weight | 320 kg. | 390 kg. | 770 kg. | 820 kg. | 900 kg. | 990 kg. | 1100 kg |
| “SHREE” Brand Semi & Fully Automatic Hinge Type Bandsaw Machine | |||
| Specification | SAHTB200 | SAHTB250 | SAHTB300 |
| Capacity | |||
| Cutting Capacity – Round | 200 mm | 250 mm | 300 mm |
| Cutting Capacity – Square | 175 mm | 225 mm | 275 mm |
| Saw Blade Dimension (mm) | 3000 x 27 x 0.9 | 3300 x 27 x 0.9 | 3760 x 34 x 1.07 |
| Blade Speed (meter/min) | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 |
| Bundle Cutting Capacity | 200 x 90 mm | 250 x 120 mm | 300 x 170 mm |
| Job Stroke | 210 mm | 260 mm | 310 mm |
| Electricals | |||
| Drive Motor(HP / RPM) | 1.5 / 1440 | 2 / 1440 | 2 /960 |
| Hydraulic Drive Motor(HP / RPM) | 1 / 1440 | 1 / 1440 | 1 / 1440 |
| Coolant Pump Motor(HP / RPM) | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 |
| Tank Capacity | |||
| Hydraulic Tank | 40 ltrs. | 50 ltrs. | 60 ltrs. |
| Coolant Tank | 40 ltrs. | 50 ltrs. | 70 ltrs. |
| Machine Dimension & Weight (Approx.) | |||
| Length x Width | 1910 x 1450 mm | 2200 x 1610 mm | 2400 x 1825 mm |
| Height | 1000 mm | 1100 mm | 1200 mm |
| Weight | 495 kg | 670 kg | 870 kg |

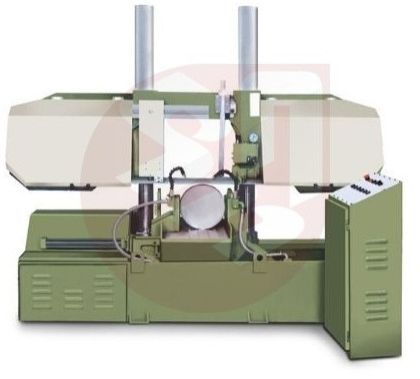

| “SHREE” Brand Semi Automatic Double Column Bandsaw Machine | |||||||
| Specification | SADCB240 | SADCB300 | SADCB400 | SADCB500 | SADCB650 | SADCB800 | SADCB1000 |
| Capacity | |||||||
| Cutting Capacity – Round | 241 mm | 311 mm | 421 mm | 531 mm | 651 mm | 801 mm | 1001 mm |
| Cutting Capacity – Square | 241 mm | 311 mm | 421 mm | 531 mm | 651 mm | 801 mm | 1001 mm |
| Saw Blade Dimension (mm) | 3760 × 27 × 0.9 | 4100 × 34 × 1.1 | 5450 × 41 × 1.3 | 6900 × 54 × 1.6 | 8000 × 67 × 1.6 | 8800 × 67 × 1.6 | 12300 × 80 × 1.6 |
| Blade Speed(meter/min) | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 |
| Electricals | |||||||
| Drive Motor(HP / RPM) | 2 / 1440 | 3 / 1440 | 5 / 1440 | 7.5 / 1440 | 10 / 1440 | 12.5 / 1440 | 12.5 / 1440 |
| Hydraulic Drive Motor(HP / RPM) | 1/ 1440 | 1/ 1440 | 1/ 1440 | 2 / 1440 | 2 / 1440 | 2 / 1440 | 2 / 1440 |
| Wire Brush Motor (HP / RPM) | 0.25/ 1440 | 0.25/ 1440 | 0.25/ 1440 | 0.25/ 1440 | 0.25/ 1440 | 0.25/ 1440 | 0.25/ 1440 |
| Coolant Pump Motor(HP / RPM) | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 | 0.25 / 2800 | 0.25 / 2800 | 0.25 / 2800 | 0.25 / 2800 |
| Tank Capacity | |||||||
| Hydraulic Tank | 80 ltrs. | 80 ltrs. | 100 ltrs. | 100 ltrs. | 100 ltrs. | 120 ltrs. | 120 ltrs. |
| Coolant Tank | 60 ltrs. | 60 ltrs. | 80 ltrs. | 80 ltrs. | 100 ltrs. | 100 ltrs. | 100 ltrs. |
| Machine Dimension & Weight (Approx.) | |||||||
| Length x Width (mm) | 2250 × 975 | 2430 × 1050 | 2430 × 1100 | 3000 × 1275 | 3900 × 1440 | 4380 × 1650 | 4875 × 1830 |
| Height | 1275 mm | 1275 mm | 1575 mm | 1950 mm | 2430 mm | 2820 mm | 3390 mm |
| Weight | 1260 kg. | 1530 kg. | 1980 kg. | 3630 kg. | 5150 kg. | 6150 kg. | 12270 kg. |
| “SHREE” BRAND C TYPE POWER PRESS | ||||||||
| Specification | PPC5 | PPC10 | PPC20 | PPC30 | PPC50 | PPC80 | PPC100 | PPC150 |
| Capacity | ||||||||
| Tonnage | 5 ton | 10 ton | 20 ton | 30 ton | 50 ton | 80 ton | 100 ton | 150 ton |
| Crank Shaft Diameter | 48 mm | 60 mm | 76 mm | 83 mm | 95 mm | 102 mm | 127 mm | 139 mm |
| Hole in RAM | 20 mm | 25 mm | 32 mm | 38 mm | 45 mm | 51 mm | 51 mm | 57 mm |
| Bed Size (mm) | 330 x 175 | 405 x 255 | 505 x 305 | 555 x 380 | 750 x 520 | 775 x 550 | 815 x 585 | 965 x 685 |
| Bed Thickness | 38 mm | 45 mm | 57 mm | 69 mm | 67 mm | 90 mm | 100 mm | 105 mm |
| Hole in Bed | 50 mm | 75 mm | 80 mm | 90 mm | 120 mm | 150 mm | 165 mm | 175 mm |
| Distance Between Bed to RAM | 180 mm | 225 mm | 295 mm | 355 mm | 405 mm | 455 mm | 505 mm | 560 mm |
| Stroke length | 38 mm | 51 mm | 75 mm | 75 mm | 100 mm | 114 mm | 127 mm | 127 mm |
| Day Light | 180 mm | 225 mm | 295 mm | 355 mm | 405 mm | 455 mm | 505 mm | 560 mm |
| Shut Height | 218 mm | 270 mm | 350 mm | 425 mm | 472 mm | 535 mm | 605 mm | 665 mm |
| Screw Adjustment | 30 mm | 38 mm | 45 mm | 50 mm | 50 mm | 75 mm | 75 mm | 75 mm |
| Shank Hole | 20 mm | 25 mm | 32 mm | 38 mm | 45 mm | 51 mm | 51 mm | 57 mm |
| Bed Opening | 200 mm | 254 mm | 265 mm | 305 mm | 330 mm | 395 mm | 435 mm | 510 mm |
| Strokes Per Minutes | 80 | 70 | 65 | 60 | 38 | 35 | 30 | 25 |
| Flywheel Diameter | 350 mm | 421 mm | 530 mm | 610 mm | 735 mm | 915 mm | 990 mm | 1140 mm |
| Main Gear Diameter | 275 mm | 359 mm | 405 mm | 495 mm | 605 mm | 850 mm | 962 mm | 1090 mm |
| Arrangement of Lubrication | Manual | Manual | Manual | Manual | Manual | Hand Pump | Hand Pump | Hand Pump |
| Electricals | ||||||||
| Electric Motor (HP / RPM) | 0.5 / 1440 | 1 / 1440 | 2 / 1440 | 3 / 1440 | 5 / 1440 | 7.5 / 1440 | 10 / 1440 | 15 / 1440 |
| Motor Belt (V – Belt) | B – 55/56 (Nos. 1) | B – 63/65 (Nos. 2) | B – 82/85 (Nos. 2) | B – 94/96 (Nos. 2) | C – 110/112 (Nos. 2) | C – 134/136 (Nos. 3) | C – 141/143 (Nos. 3) | C – 160/162 (Nos. 3) |
| Machine Dimension & Weight (Approx.) | ||||||||
| Floor to top of bed | 610 mm | 725 mm | 750 mm | 755 mm | 775 mm | 775 mm | 755 mm | 800 mm |
| Length x Width (mm) | 470 x 400 | 650 x 585 | 725 x 625 | 785 x 825 | 1050 x 960 | 1150 x 1250 | 1500 x 1550 | 1525 x 1650 |
| Height | 1400 mm | 1600 mm | 1900 mm | 2050 mm | 2200 mm | 2400 mm | 2650 mm | 2800 mm |
| Weight | 300 kg | 550 kg | 1050 kg | 1400 kg | 2600 kg | 4300 kg | 5800 kg | 6800 kg |

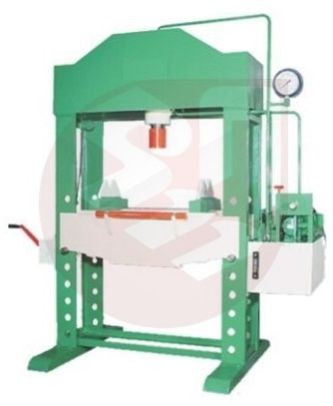

| “SHREE” Brand Motor Operated Hydraulic Press | |||||
| Model No. | Tonnage Capacity | Distance Between Column (L x W) (mm) | Distance Between Ram To Bed (Min. x Max.) (mm)
|
Ram Travelling
(mm) |
Electric Motor
(HP) |
| HPM5 | 5 | 500 x 200 | 75 x 600 | 150 | 1 |
| HPM10 | 10 | 600 x 200 | 75 x 600 | 200 | 1 |
| HPM15 | 15 | 650 x 200 | 75 x 600 | 200 | 1.5 |
| HPM25 | 25 | 850 x 300 | 180 x 910 | 200 | 1.5 |
| HPM40 | 40 | 950 x 350 | 180 x 910 | 250 | 2 |
| HPM50 | 50 | 1000 x 400 | 180 x 950 | 250 | 3 |
| HPM60 | 60 | 1050 x 450 | 180 x 975 | 250 | 3 |
| HPM75 | 75 | 1180 x 500 | 180 x 975 | 250 | 3 |
| HPM100 | 100 | 1200 x 600 | 180 x 975 | 225 | 5 |
| HPM150 | 150 | 1300 x 625 | 180 x 975 | 240 | 7.5 |
| HPM200 | 200 | 1325 x 660 | 180 x 975 | 240 | 10 |
| HPM250 | 250 | 1350 x 660 | 180 x 975 | 250 | 10 |
| HPM300 | 300 | 1450 x 700 | 180 x 1000 | 260 | 15 |
| HPM500 | 500 | 1500 x 1000 | 200 x 1100 | 300 | 20 |
| “SHREE” Brand Hand Operated Hydraulic Press | ||||
| Model No. | Tonnage Capacity | Distance Between Column (L x W)
(mm) |
Distance Between Ram To Bed (Min. x Max.)
(mm) |
Ram Travelling
(mm) |
| HPH5 | 5 | 500 x 200 | 75 x 600 | 100 |
| HPH10 | 10 | 600 x 200 | 75 x 600 | 125 |
| HPH15 | 15 | 650 x 200 | 75 x 600 | 150 |
| HPH25 | 25 | 850 x 300 | 180 x 910 | 150 |
| HPH40 | 40 | 950 x 350 | 180 x 910 | 150 |
| HPH50 | 50 | 1000 x 400 | 180 x 950 | 150 |
| HPH60 | 60 | 1050 x 450 | 180 x 975 | 150 |
| HPH75 | 75 | 1180 x 500 | 180 x 975 | 150 |
| HPH100 | 100 | 1200 x 600 | 180 x 975 | 150 |
| HPH150 | 150 | 1300 x 625 | 180 x 975 | 150 |
| HPH200 | 200 | 1325 x 660 | 180 x 975 | 150 |
| “SHREE” Brand C Type Hydraulic Press | ||||||
| Model No. | Tonnage Capacity | Distance Between Ram To Bed(mm) | Table Size
(mm) |
Stroke Per Min
(For 25 mmStroke) |
Electric Motor
(HP) |
Stroke Adjustment
(mm) |
| HPC5 | 5 | 153 | 305 x 178 | 30 | 0.75 | 15 – 75 |
| HPC10 | 10 | 204 | 406 x 254 | 30 | 1 | 15 – 75 |
| HPC15 | 15 | 254 | 508 x 305 | 30 | 2 | 15 – 100 |
| HPC20 | 20 | 254 | 508 x 305 | 30 | 2 | 15 – 100 |
| HPC30 | 30 | 280 | 558 x 355 | 25 | 3 | 15 – 100 |
| HPC40 | 40 | 317 | 584 x 381 | 28 | 3 | 15 – 100 |
| HPC50 | 50 | 332 | 660 x 406 | 30 | 5 | 15 – 100 |
| HPC80 | 80 | 381 | 762 x 508 | 30 | 7.5 | 15 – 100 |
| HPC100 | 100 | 406 | 813 x 584 | 26 | 7.5 | 15 – 100 |

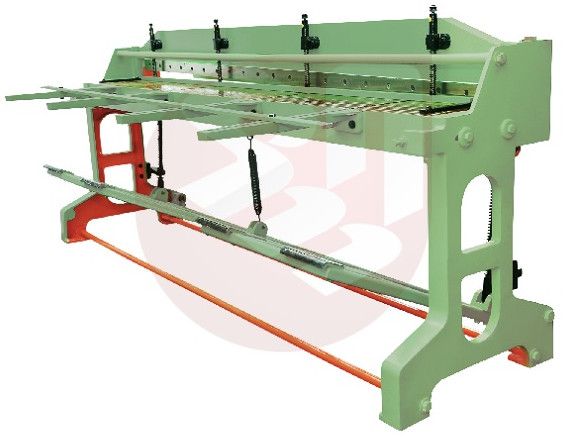

| “SHREE” Brand Treadle Shearing Machine | |||||
| Model | CuttingCapacity In M.S. (Length x Thickness) (mm) |
Size Of Bed (Length x Width) (mm) |
Blade ( L x W x T ) (mm) |
Floor to Top of Bed (mm) |
Weight (kg) |
| TS309 | 305 x 0.9 | 407 x 203 | 305x62x14 | 863 | 90 |
| TS459 | 458 x 0.9 | 559 x 280 | 482 x62x14 | 889 | 210 |
| TS619 | 610 x 0.9 | 712 x 280 | 635x62x14 | 889 | 260 |
| TS919 | 915 x 0.9 | 1020 x 280 | 940x62x14 | 889 | 300 |
| TS1029 | 1020 x 0.9 | 1118 x 305 | 1041 x62x14 | 889 | 380 |
| TS1278 | 1270 x 0.8 | 1372 x 305 | 1295 x62x14 | 889 | 460 |
| TS1258 | 1524 x 0.8 | 1651 x 305 | 1550 x62x14 | 889 | 525 |
| TS2058 | 2058 x 0.8 | 2159 x 305 | 2057 x62x14 | 915 | 675 |

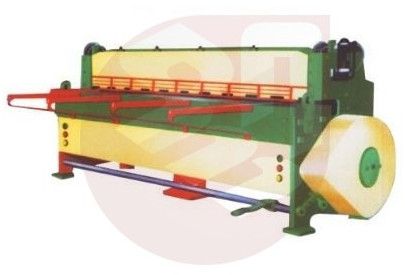

| “SHREE” Brand Mechanical Shearing Machine Under Crank | ||||||||||
| Model | CuttingCapacity In M.S.(Length x Thickness)(mm) |
Front Gauge(mm) |
Rear Gauge(mm) |
Table (H x W)(mm) |
Blade ( L x W x T )(mm) |
Stroke Per Minute |
Hold Down ToKnife Edge |
Electric
Motor (HP) |
Machine
Dimension (Approx.) |
Weight
(Approx.) Kgs. |
| MSU1 | 610 x 1.5 | 450 | 450 | 800 x 305 | 635x62x14 | 60 | 5 | 1 | 1170x1000x1150 | 475 |
| MSU2 | 914 x 1.5 | 450 | 450 | 800 x 305 | 940x62x14 | 60 | 7 | 1 | 1470x1000x1150 | 600 |
| MSU3 | 1270 x 1.5 | 450 | 450 | 800 x 305 | 1295x62x14 | 55 | 9 | 2 | 1900x1100x1220 | 875 |
| MSU4 | 1525 x 1.5 | 450 | 450 | 800 x 305 | 1550x62x14 | 55 | 11 | 2 | 2200x1100x1220 | 1000 |
| MSU5 | 2030 x 1.5 | 450 | 450 | 800 x 315 | 2050x62x14 | 50 | 13 | 3 | 2700x1200x1220 | 1275 |
| MSU6 | 610 x 2 | 600 | 600 | 800 x 355 | 635x62x14 | 60 | 5 | 2 | 1470x1150x1120 | 860 |
| MSU7 | 914 x 2 | 600 | 600 | 800 x 355 | 940x62x14 | 60 | 7 | 2 | 1770x1150x1220 | 950 |
| MSU8 | 1270 x 2 | 600 | 600 | 800 x 355 | 1295x62x14 | 50 | 7 | 3 | 2200x1200x1400 | 1350 |
| MSU9 | 1525 x 2 | 600 | 600 | 800 x 355 | 1550x62x14 | 50 | 9 | 3 | 2450x1200x1400 | 1500 |
| MSU10 | 2030 x 2 | 600 | 600 | 800 x 400 | 2050x62x14 | 45 | 11 | 5 | 2950x1300x1400 | 2600 |
| MSU11 | 2540 x 2 | 600 | 600 | 800 x 400 | 2550x62x14 | 45 | 13 | 5 | 3450x1300x1400 | 2800 |
| MSU12 | 610 x 4 | 600 | 600 | 825 x 355 | 635x75x18 | 50 | 5 | 3 | 1470x1200x1400 | 1100 |
| MSU13 | 914 x4 | 600 | 600 | 825 x 355 | 940x75x18 | 50 | 7 | 3 | 1770x1200x1400 | 1320 |
| MSU14 | 1270 x 4 | 600 | 600 | 825 x 400 | 1295x75x18 | 45 | 7 | 5 | 2290x1300x1500 | 2100 |
| MSU15 | 1525 x 4 | 600 | 600 | 825 x 400 | 1550x75x18 | 45 | 9 | 5 | 2540x1300x1500 | 2500 |
| MSU16 | 2030 x 4 | 600 | 750 | 825 x 450 | 2032x75x18 | 40 | 11 | 7.5 | 3050x1400x1525 | 3200 |
| MSU17 | 2540 x 4 | 600 | 750 | 825 x 450 | 2550x75x18 | 40 | 13 | 7.5 | 3550x1400x1525 | 3600 |

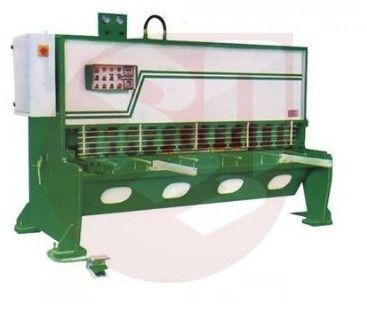

| “SHREE” Brand Hydraulic Shearing Machine | |||||||||||||
| Model | Cutting
Capacity (Length mm)
|
Cutting Capacity
(M.S. in mm) |
Cutting Capacity
(S.S. in mm) |
Std.
Rake Angle (Degree) |
Variable
Rake Angle (Degree)
|
Stroke per Minute | No. of Hold downs | Electric Motor
(HP) |
Machine Dimension
( L x W x H )Approx. |
Weight
(Kg.)(Approx.) |
|||
| Rake Angle | Min.
RakeAngle |
Max.
Rake Angle |
|||||||||||
| Min. | Max. | Min. | Max. | ||||||||||
| HS154 | 1525 | 3 | 4 | 2 | 3 | 1° 15 | 0.5-2° | 24 | 12 | 9 | 5 | 2250x1850x2050 | 2400 |
| HS204 | 2030 | 3 | 4 | 2 | 3 | 1° 15 | 0.5-2° | 20 | 11 | 11 | 5 | 2700x1850x2050 | 3200 |
| HS254 | 2540 | 3 | 4 | 2 | 3 | 1° 15 | 0.5-2° | 25 | 13 | 13 | 5 | 3200x1850x1950 | 3600 |
| HS314 | 3100 | 3 | 4 | 2 | 3 | 1° 15 | 0.5-2° | 21 | 9 | 17 | 5 | 3700x1850x1950 | 4000 |
| HS156 | 1525 | 4 | 6 | 3 | 4 | 1° 37 | 0.5- 3° | 28 | 15 | 9 | 7.5 | 2250x1850x2050 | 3000 |
| HS206 | 2030 | 4 | 6 | 3 | 4 | 1° 37 | 0.5- 3° | 24 | 12 | 11 | 7.5 | 2750x1850x2400 | 3500 |
| HS256 | 2540 | 4 | 6 | 3 | 4 | 1° 37 | 0.5- 3° | 21 | 10 | 13 | 7.5 | 3300x2250x2400 | 4300 |
| HS316 | 3100 | 4 | 6 | 3 | 4 | 1° 37 | 0.5- 3° | 21 | 10 | 17 | 10 | 3700x2250x2400 | 5500 |
| HS406 | 4000 | 4 | 6 | 3 | 4 | 1° 45 | 0.5- 3° | 15 | 7 | 20 | 10 | 4500x2250x2400 | 7200 |
| HS158 | 1525 | 6 | 8 | 4 | 6 | 1° 45 | 0.5- 3° | 22 | 10 | 9 | 10 | 2250x1900x2100 | 3900 |
| HS208 | 2030 | 6 | 8 | 4 | 6 | 1° 45 | 0.5- 3° | 22 | 10 | 11 | 10 | 2750x1900x2100 | 4100 |
| HS258 | 2540 | 6 | 8 | 4 | 6 | 1° 45 | 0.5- 3° | 25 | 11 | 13 | 15 | 3300x2250x2500 | 5700 |
| HS318 | 3100 | 6 | 8 | 4 | 6 | 1° 45 | 0.5- 3° | 22 | 9 | 17 | 15 | 3800x2250x2500 | 7000 |
| HS408 | 4000 | 6 | 8 | 4 | 6 | 1° 45 | 0.5- 3° | 22 | 10 | 20 | 20 | 4800x2250x2500 | 8200 |
| HS1510 | 1525 | 8 | 10 | 6 | 8 | 2° | 0.5- 3° | 18 | 8 | 9 | 15 | 2250x2050x2200 | 4300 |
| HS2010 | 2030 | 8 | 10 | 6 | 8 | 2° | 0.5- 3° | 22 | 8 | 11 | 15 | 2750x2050x2200 | 5200 |
| HS2510 | 2540 | 8 | 10 | 6 | 8 | 2° | 0.5- 3° | 18 | 7 | 13 | 20 | 3300x2350x2600 | 7200 |
| HS3110 | 3100 | 8 | 10 | 6 | 8 | 2° | 0.5- 3° | 18 | 6 | 17 | 20 | 3800x2350x2600 | 8500 |
| HS4010 | 4000 | 8 | 10 | 6 | 8 | 2° | 0.5- 3° | 16 | 5 | 20 | 25 | 4800x2350x2600 | 11500 |
| HS1512 | 1525 | 10 | 12 | 8 | 10 | 2° | 0.5- 3° | 20 | 10 | 9 | 15 | 2250x2050x2300 | 5000 |
| HS2012 | 2030 | 10 | 12 | 8 | 10 | 2° | 0.5- 3° | 18 | 8 | 11 | 15 | 2750x2050x2300 | 5600 |
| HS2512 | 2540 | 10 | 12 | 8 | 10 | 2° | 0.5- 3° | 15 | 7 | 13 | 20 | 3300x2500x2800 | 7100 |
| HS3112 | 3100 | 10 | 12 | 8 | 10 | 2° | 0.5- 3° | 14 | 7 | 17 | 20 | 3800x2500x2800 | 10500 |
| HS4012 | 4000 | 10 | 12 | 8 | 10 | 2° | 0.5- 3° | 15 | 6 | 20 | 30 | 4800x2500x2800 | 12800 |
| HS1516 | 1525 | 12 | 16 | 10 | 12 | 2° | 1 -3° | 16 | 8 | 9 | 20 | 2300x2100x2300 | 5800 |
| HS2016 | 2030 | 12 | 16 | 10 | 12 | 2° | 1 -3° | 14 | 6 | 11 | 25 | 2750x2200x2500 | 6800 |
| HS2516 | 2540 | 12 | 16 | 10 | 12 | 2° | 1 -3° | 13 | 5 | 13 | 25 | 3350x2600x2800 | 8000 |
| HS3116 | 3100 | 12 | 16 | 10 | 12 | 2° | 1 -3° | 12 | 5 | 17 | 25 | 3800x2600x2800 | 11500 |
| HS4016 | 4000 | 12 | 16 | 10 | 12 | 2° | 1 -3° | 9 | 4 | 20 | 30 | 4850x2200x2800 | 15000 |
| HS2020 | 2030 | 16 | 20 | 12 | 16 | 2° | 1 -3° | 15 | 6 | 11 | 25 | 2750x2200x2600 | 10800 |
| HS2520 | 2540 | 16 | 20 | 12 | 16 | 2° | 1 -3° | 15 | 5 | 13 | 30 | 3500x2600x2900 | 13500 |
| HS3120 | 3100 | 16 | 20 | 12 | 16 | 2° | 1 -3° | 12 | 5 | 17 | 30 | 4000x2600x2900 | 15000 |
| HS4020 | 4000 | 16 | 20 | 12 | 16 | 2° | 1 -3° | 9 | 4 | 20 | 30 | 5100x2750x2900 | 18000 |
| HS2025 | 2030 | 20 | 25 | 16 | 20 | 2° | 1 -3° | 13 | 7 | 11 | 40 | 2900x2500x2600 | 16000 |
| HS2525 | 2540 | 20 | 25 | 16 | 20 | 2° | 1 -3° | 14 | 5 | 13 | 40 | 3500x2750x3000 | 17000 |
| HS3125 | 3100 | 20 | 25 | 16 | 20 | 2° | 1 -3° | 11 | 5 | 17 | 40 | 4000x2750x3000 | 18000 |
| HS4025 | 4000 | 20 | 25 | 16 | 20 | 2° | 1 -3° | 9 | 4 | 20 | 50 | 5100x2800x3000 | 22000 |
| “SHREE” Brand Hydraulic Press Brake | |||||||||||||
| Model | Tonnage
Capacity |
Table Length(mm) |
BendingCapacity (In M.S. UTS – MM) 450 kg/mm2 |
Table Width(mm) |
Clear Pass(mm) |
Throat Depth (mm) |
Ram Stroke(mm) |
Open Height(mm) |
Elect. Motor (HP)
|
Ram
Speed
|
Machine Dimension
( L x W x H )Approx. |
Weight
(Kg.)(Approx.) |
|
| HPB152 | 20 | 1525 | 1525×2 | 1250×3 | 150 | 1050 | 200 | 100 | 250 | 3 | 35-9-60 | 1700x1050x1900 | 1800 |
| HPB202 | 30 | 2030 | 2030×2 | 1525×3 | 150 | 1550 | 200 | 100 | 250 | 3 | 30-9-53 | 2200x1150x1900 | 2200 |
| HPB252 | 40 | 2540 | 2540×2 | 2030×3 | 150 | 2050 | 200 | 100 | 250 | 5 | 35-9-55 | 2700x1150x1900 | 2600 |
| HPB312 | 50 | 3100 | 3100×2 | 2540×3 | 180 | 2050 | 200 | 100 | 250 | 5 | 30-7-55 | 3350x1200x2030 | 3600 |
| HPB154 | 50 | 1525 | 1525×4 | 1250×5 | 180 | 2550 | 200 | 100 | 250 | 5 | 30-7-55 | 1700x1050x1900 | 2300 |
| HPB204 | 60 | 2030 | 2030×4 | 1525×5 | 180 | 1550 | 200 | 100 | 330 | 5 | 25-6-50 | 2200x1150x1900 | 3500 |
| HPB254 | 80 | 2540 | 2540×4 | 2030×5 | 200 | 2050 | 250 | 150 | 330 | 7.5 | 37-6-41 | 2700x1150x2030 | 4200 |
| HPB314 | 100 | 3100 | 3100×4 | 2540×5 | 200 | 2550 | 250 | 150 | 330 | 10 | 40-5-40 | 3350x1200x2030 | 5300 |
| HPB404 | 125 | 4000 | 4000×4 | 3100×5 | 200 | 3100 | 250 | 150 | 330 | 10 | 41-6-41 | 4200x1650x2540 | 7500 |
| HPB156 | 80 | 1525 | 1525×6 | 1250×8 | 200 | 1050 | 250 | 100 | 330 | 7.5 | 37-6-41 | 1750x1550x2000 | 2800 |
| HPB206 | 100 | 2030 | 2030×6 | 1525×8 | 200 | 1550 | 250 | 150 | 330 | 10 | 40-5-40 | 2250x1550x2200 | 4800 |
| HPB256 | 125 | 2540 | 2540×6 | 2030×8 | 250 | 2050 | 300 | 150 | 350 | 10 | 41-6-41 | 2750x1650x2540 | 5900 |
| HPB316 | 160 | 3100 | 3100×6 | 2540×8 | 250 | 2550 | 300 | 150 | 350 | 15 | 40-6-40 | 3350x1800x2600 | 7600 |
| HPB406 | 200 | 4000 | 4000×6 | 3100×8 | 250 | 3550 | 300 | 200 | 350 | 20 | 37-5-37 | 4350x2050x2750 | 9600 |
| HPB158 | 100 | 1525 | 1525×8 | 1250×10 | 200 | 1050 | 250 | 150 | 330 | 10 | 40-5-40 | 1750x1700x2100 | 4300 |
| HPB208 | 125 | 2030 | 2030×8 | 1525×10 | 250 | 1550 | 300 | 150 | 350 | 10 | 41-6-41 | 2250x1800x2300 | 5800 |
| HPB258 | 160 | 2540 | 2540×8 | 2030×10 | 250 | 2050 | 300 | 150 | 350 | 15 | 40-6-40 | 2750x1800x2600 | 7200 |
| HPB318 | 200 | 3100 | 3100×8 | 2540×10 | 250 | 2550 | 300 | 200 | 400 | 20 | 37-5-37 | 3350x2050x2750 | 8700 |
| HPB408 | 250 | 4000 | 4000×8 | 3100×10 | 250 | 3550 | 300 | 200 | 400 | 25 | 40-5-40 | 4350x2100x2800 | 12000 |
| HPB1510 | 125 | 1525 | 1525×10 | 1250×12 | 250 | 1050 | 300 | 150 | 330 | 10 | 41-6-41 | 1750x1850x2600 | 5100 |
| HPB2010 | 200 | 2030 | 2030×10 | 1225×12 | 250 | 1550 | 300 | 200 | 350 | 20 | 37-5-37 | 2250x1850x2600 | 6500 |
| HPB2510 | 200 | 2540 | 2540×10 | 2030×12 | 300 | 2050 | 300 | 200 | 400 | 20 | 37-5-37 | 2750x1800x2600 | 8700 |
| HPB3110 | 250 | 3100 | 3100×10 | 2540×12 | 300 | 2550 | 300 | 200 | 400 | 25 | 40-5-40 | 3350x2100x2800 | 11500 |
| HPB4010 | 300 | 4000 | 4000×10 | 3100×12 | 300 | 3550 | 300 | 250 | 400 | 30 | 36-5-36 | 4350x2150x2900 | 14500 |
| HPB2012 | 200 | 2030 | 2030×12 | 1525×16 | 300 | 1550 | 300 | 200 | 400 | 20 | 37-5-37 | 2250x2000x2600 | 7200 |
| HPB2512 | 250 | 2540 | 2540×12 | 2030×16 | 300 | 2050 | 300 | 200 | 400 | 25 | 40-5-40 | 2750x2000x2700 | 10500 |

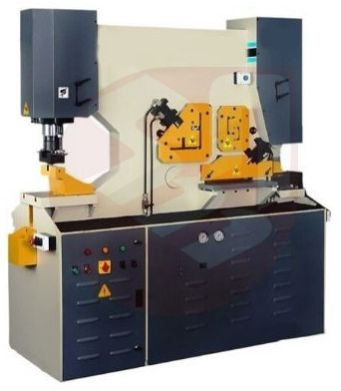

| “SHREE” Brand Hydraulic Iron Worker | ||||||
| Specifications | HIW45 | HIW55 | HIW65 | HIW85 | HIW110 | HIW135 |
| PUNCHING | ||||||
| Punching Pressure | 45 Ton | 55 Ton | 65 Ton | 85 Ton | 110 Ton | 135 Ton |
| Punch Capacity | 20 × 15 | 22 × 16 | 22 × 20 | 26 × 22 | 26 × 26 | 33 × 27 |
| (Diameter × Thickness) | 35 × 8 | 45 × 8 | 50 × 9 | 50 × 12 | 50 × 15 | 50 × 18 |
| Throat Depth In S /SD Model | 175/- | 275/- | 310 / 510 | 310 / 510 | 310 / 510 | – / 570 |
| Maximum Stock Length | 60 | 100 | 100 | 100 | 100 | 100 |
| Cycles / Min. (20mm Stroke) | 30 | 25 / 32 | 20 | 21 | 21 | 20 |
| Working Height Up to Die | 910 | 910 | 910 | 950 | 950 | 1020 |
| FLAT SHEARING | ||||||
| Flat Bar Shear | 250 × 8 | 300 × 12 | 350 × 15 | 460 × 15 | 610 × 16 | 610 × 18 |
| (Width × Thickness) | 180 × 12 | 240 × 16 | 240 × 20 | 300 × 20 | 400 × 20 | 400 × 25 |
| Blade Length | 260 | 310 | 360 | 465 | 620 | 620 |
| Angle Flange Trim | 65 | 65 | 75 | 100 | 100 | 100 |
| Working Height | 800 | 820 | 920 | 920 | 950 | 950 |
| “SHREE” Brand Mechanical Centerless Grinding Machine | |||
| Specification | MCLG50 | MCLG75 | MCLG100 |
| Capacity | |||
| Maximum Grinding Dia. | 40 mm | 75 mm | 100 mm |
| Minimum Grinding Dia. | 1 mm | 1 mm | 2 mm |
| Maximum Length in Through Feed | 150 mm | 200 mm | 250 mm |
| Grinding Wheel Size (D x W x H) mm | 250 x 50 x 76.2 | 300 x 80 x 127 | 350 x 100 x 127 |
| Grinding Wheel Speed | 2300 rpm | 1900 rpm | 1700 rpm |
| Regulating Wheel Head | |||
| Regulating Wheel Size (D x W x H) mm | 180 x 50 x 76.2 | 200 x 80 x 76.2 | 230 x 100 x 76.2 |
| Regulating Wheel Speed | 16 – 30 – 55 – 100 | 16 – 30 – 55 – 100 | 16 – 30 – 55 – 100 |
| Swivel of Regulating Wheel Head | ± 5 Degree | ± 5 Degree | ± 5 Degree |
| Grinding Wheel & Regulating Wheel Head | Manual Dresser | Manual Dresser | Manual Dresser |
| Electricals | |||
| Wheel Head Electric Motor (HP / RPM) | 2 / 1440 | 3 / 1440 | 5 / 1440 |
| Regulating Wheel Head Electric Motor (HP / RPM) | 0.5 / 1440 | 0.5 / 1440 | 1 / 1440 |
| Coolant Pump (HP / RPM) | 0.15 / 2800 | 0.15 / 2800 | 0.15 / 2800 |

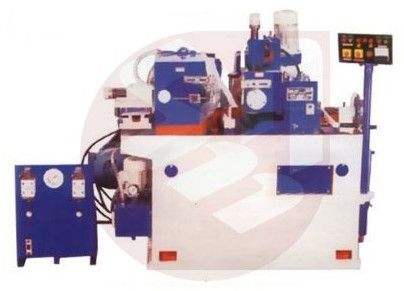

| “SHREE” Brand Hydraulic Centerless Grinding Machine | |||
| Specification | HCLG75 | HCLG100 | HCLG150 |
| Grinding range diameter | 2-75 mm | 2-100 mm | 5-150 mm |
| Grinding wheel size (OD x W x I.D.) | 350 x 100 x 127 mm | 350 x 150 x 127 mm | 500 x 200 x 304.8 mm |
| Regulating wheel size (OD x W x I.D.) | 225 x 100 x 76.2 mm | 225 x 150 x 76.2 mm | 300 x 200 x 127 mm |
| Maximum Length in in feed grinding | 100 mm | 150 mm | 200 mm |
| Maximum Length in through feed grinding (Length x OD) | 300 mm x 75 mm | 250 mm x 100 mm | 200 mm x 150 mm |
| Grinding wheel speed (RPM) | 1800 | 1800 | 1200 |
| Regulating wheel speed (RPM) | 20-40-60 (Variable speed (Optional) D.C./A.C./Hydraulicdriveif required) |
20-40-60 (Variable speed (Optional)D.C./A.C./Hydraulic drive if required) |
Infinitely Variable D.C./A.C./Hydraulic drive motor |
| Grinding wheel motor (HP / RPM) | 5 / 1440 | 7.5 / 1440 | 20 / 1440 |
| Regulating wheel motor | 1 HP Flange / 1440RPM
3 Phase |
1 HP / 1440RPM
3 Phase |
3 HP
D.C. Motor |
| Coolant pump motor. | 0.15 HP | 0.15 HP | 0.50 HP |
| Hydraulic power pack(For dressing unit) | 0.5 HP | 0.5 HP | 0.5 HP |
| Regulating wheel Angle tilting | 5 degree | 5 degree | 5 degree |
| Upper Slide swiveling | 3 degree | 3 degree | 3 degree |
| Machine Dimension & Weight (Approx.) | |||
| Length x Width | 1850 x 1100 mm | 1850 x 1100 mm | 2500 x 1700 mm |
| Height | 1600 mm | 1600 mm | 1650 mm |
| Weight | 1800 kg. | 2000 kg. | 4500 kg. |

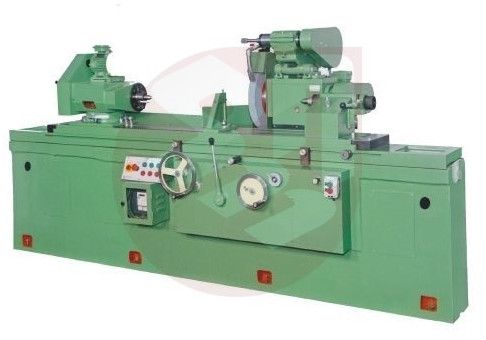

| “SHREE” Brand Hydraulic Cylindrical Grinding Machine | ||||||||
| Specification | HCG300 | HCG500 | HCG600 | HCG750 | HCG1000 | HCG1250 | HCG1500 | HCG2000 |
| Capacity | ||||||||
| Distance Between Center | 300 mm | 500 mm | 600 mm | 750 mm | 1000 mm | 1250 mm | 1500 mm | 2000 mm |
| Height of Center (mm) | 125/150 mm | 125/150 mm | 125/150 mm | 150/175 mm | 175 mm | 175 mm | 175 mm | 175 mm |
| Maximum Swing Over Bed | 250 mm | 250 mm | 250 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Maximum Admissible Length | 325 mm | 525 mm | 625 mm | 775 mm | 1025 mm | 1275 mm | 1525 mm | 2025 mm |
| Table | ||||||||
| Swivelling Angle | 7° + 2° | 8° + 3° | 7° + 2° | 7° + 2° | 8° + 3° | 8° + 3° | 8° + 3° | 8° + 3° |
| Speed of Table Infinitely Variable (Mtr./min.) | 0.05 to 1.5 | 0.05 to 1.5 | 0.05 to 1.5 | 0.05 to 1.5 | 0.05 to 1.5 | 0.05 to 1.5 | 0.05 to 1.5 | 0.05 to 1.5 |
| Maximum Travel | 300 mm | 500 mm | 600 mm | 750 mm | 1050 mm | 1275 mm | 1525 mm | 2025 mm |
| Table Width | 250 mm | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Wheel Head | ||||||||
| Grinding Wheel Size (D × W × H) mm | 300 × 40 × 127 | 350 × 40 × 127 | 400 × 40 × 127 | 350 × 40 × 127 | 500 × 50 × 205 | 500 × 50 × 203.2 | 500 × 50 × 203.2 | 500 × 50 × 203.2 |
| Grinding Wheel Speed (RPMM) | 1900 | 1900 | 1600/2060 | 1600/2060 | 1600/2060 | 1450/1900 | 1450/1900 | 1450/1900 |
| In Feed of Hand Wheel Per Division | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.02 mm | 0.02 mm | 0.02 mm |
| Maximum Travel of Wheel Head | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 150 mm | 150 mm | 150 mm |
| Wheel Head Swivel | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° |
| Rapid Approach | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Work Head | ||||||||
| Spindle Speed | 65 – 140 – 205 – 300 | 10 – 300 | ||||||
| Spindle in Tapper | MT 4 | MT 4 | MT 4 | MT 4 | MT 5 | MT 5 | MT 5 | MT 5 |
| Work Head Swivel | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° | ±45° |
| Tail Stock | ||||||||
| Tapper in Quill | MT 3 | MT 3 | MT 3 | MT 3 | MT 4 | MT 4 | MT 4 | MT 4 |
| Maximum Quill Travel | 25 mm | 30 mm | 30 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Electricals | ||||||||
| Work Head Elect. Motor (HP/RPM) | 0.5 /
720 & 1440 |
0.5 /
720 & 1440 |
0.5 /
720 & 1440 |
0.5 /
720 & 1440 |
0.5 /
720 & 1440 |
1 / 1440 | 1 /1440 | 1 / 1440 |
| Hydraulic Power Pack Elect. Motor (HP/RPM) | 1 / 1440 | 1 / 1440 | 1 / 1440 | 1 / 1440 | 1.5 / 1440 | 1.5 / 1440 | 1.5 / 1440 | 2 / 1440 |
| Wheel Head Elect. Motor (HP/RPM) | 2 / 1440 | 2 / 1440 | 3 / 1440 | 3 / 1440 | 5 / 1440 | 5 / 1440 | 5 / 1440 | 5 / 1440 |
| Internal Elect. Motor (HP/RPM) | 0.5 / 2800 | 0.5 / 2800 | 1 / 2800 | 1 / 2800 | 1 / 2800 | 1 / 2800 | 1 / 2800 | 1 / 2800 |
| Coolant Pump Elect. Motor (HP /RPM) | 0.15 / 2800 | 0.15 / 2800 | 0.25 / 2800 | 0.25 / 2800 | 0.25 / 2800 | 0.5 / 2800 | 0.5 / 2800 | 0.5 / 2800 |

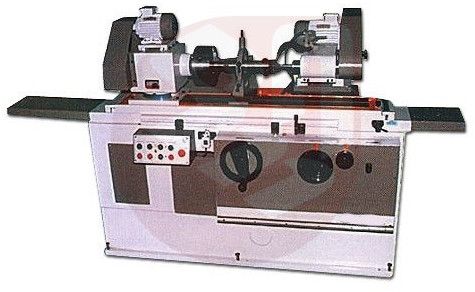

| “SHREE” Brand Internal Grinding Machine | ||||||
| Specification | IG150 | IG300 | IG450 | IG500 | IG600 | |
| Capacity | ||||||
| Distance Between Work Spindle Nose to Grinding Spindle Nose | 160 mm | 325 mm | 475 mm | 550 mm | 650 mm | |
| Height of Center | 102 mm | 102 mm | 130 mm | 150 mm | 150 mm | |
| Minimum Bore Diameter | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | |
| Maximum Bore Diameter | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | |
| Coolant Tank Capacity | 35 ltr. | 35 ltr. | 50 ltr. | 50 ltr. | 50 ltr. | |
| Work Head | ||||||
| Swivel In Degree | ±9 | -4 to +10 | -3 to +9 | -3 to +7 | -3 to +7 | |
| Speed In Range RPM | 90-210-360 | 90-180-360 | 90-180-360 | 90-180-360 | 90-180-360 | |
| Tapper in Quill | MT 3 | MT 3 | MT 3 | MT 4 | MT 4 | |
| Grinding Wheel Spindle | ||||||
| Spindle Size | 60 × 200 mm | 60 × 200 mm | 60 × 250 mm | 60 × 250 mm | 60 × 250 mm | |
| Spindle Speed – Standard | 12000 rpm | 12000 rpm | 16000 rpm | 16000 rpm | 16000 rpm | |
| “SHREE” Brand Single Stage Single Piston Air Compressor | ||||
| Specification | SSAC1 | SSAC2 | SSAC3 | SSAC4 |
| Motor | 1 | 1 | 1 | 1.5 |
| No. of Piston | 1 | 1 | 1 | 1 |
| Displacement | 3 | 3 | 3 | 3 |
| Receiver – Size | 10”× 30” | 12”× 34” | 14”× 36” | 16”× 36” |
| Receiver – Ltrs. | 40 | 65 | 90 | 120 |
| “SHREE” Brand Single Stage Double Piston Air Compressor | |||||||||
| Specification | SSAC5 | SSAC6 | SSAC7 | SSAC8 | SSAC9 | SSAC10 | SSAC11 | SSAC12 | SSAC13 |
| Motor | 1 | 1 | 1 | 1.5 | 2 | 2 | 2 | 2/3 | 2/3 |
| No. of Piston | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Displacement | 5 | 5 | 5 | 5 | 10 | 10 | 10 | 10 | 10 |
| Receiver – Size | 10” × 30” | 12” × 34” | 14” × 36” | 16” × 36” | 14” × 36” | 16” × 36” | 18” × 40” | 18” × 46” | 18” × 52” |
| Receiver – Ltrs. | 40 | 65 | 90 | 120 | 90 | 120 | 165 | 190 | 225 |
| “SHREE” Brand Portable Stud Type Welding Machine | ||
| Specification | Units | PAW 200 |
| Input Supply | Volts | 230 |
| Phase | 1 | |
| Frequency | Hzs | 50 |
| Welding Current Range With Low & High Range Selection | Amps | 90 – 200 |
| Insulation Class | A/F | |
| Max. Open Circuit Voltage (O.C.V.) | Volts | 45 |
| Max. Continuous Hand Welding Current At 60% Duty Cycle | Amps | 90 |
| Welding Electrode Size Min. | mm | 2 |
| Welding Electrode Size Max. | mm | 3.15 |
| Cooling | Fan Cooled | |
| Approx Dimensions | Height | 300 mm |
| Length | 310 mm | |
| Width | 190 mm | |
| Approx Weight | 19 kg | |
| “SHREE” Brand Inverter Look Type Portable Welding Machine | |||
| Specification | Units | PIAW 200 | PIAW 250 |
| Input Supply | Volts | 230 | 230 |
| Phase | 1 | 1 | |
| Frequency | Hzs | 50 | 50 |
| Welding Current Range With Low & High Range Selection | Amps | 50 – 200 | 50 – 250 |
| Insulation Class | A/F | A/F | |
| Max. Open Circuit Voltage (O.C.V.) | Volts | 50 | 50 |
| Max. Continuous Hand Welding Current At 60% Duty Cycle | Amps | 150 | 170 |
| Welding Electrode Size Min. | mm | 1.6 | 1.6 |
| Welding Electrode Size Max. | mm | 3.15 | 3.15 |
| Cooling | Fan Cooled | ||
| Approx Dimensions | Height | 315 mm | 400 mm |
| Length | 400 mm | 450 mm | |
| Width | 170 mm | 200 mm | |
| Approx Weight | 20 kg | 32 kg | |
| “SHREE” Brand Regular Type Welding Machine – Heavy Model | ||||||||
| Specification | Units | Heavy Duty Model | ||||||
| Model | Amps | RAWH 300 | RAWH 400 | RAWH 600 | RAWH 400 | RAWH3 300 | RAWH3 400 | RAWH3 600 |
| Input Supply | Volts | 230/440 | 230/440 | 380/440 | 380/440 | 380/440 | 380/440 | 380/440 |
| Phase | 1/2 | 1/2 | 2 | 2 | 3 | 3 | 3 | |
| Frequency | Hzs | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Welding Current Range With Low & High Range Selection | Amps | 60 – 300 | 80 – 400 | 90 – 600 | 80 – 400 | 60 – 300 | 80 – 400 | 90 – 600 |
| Insulation Class | A | A | A | A | A | A | A | |
| Max. Open Circuit Voltage (O.C.V.) | Volts | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Max. Continuous Hand Welding Current At 60% Duty Cycle | Amps | 300 | 400 | 600 | 400 | 300 | 400 | 600 |
| Welding Electrode Size Min. | mm | 2.5 | 2.5 | 3.15 | 2.5 | 2.5 | 2.5 | 3.15 |
| Welding Electrode Size Max. | mm | 4 | 4 | 5 | 4 | 4 | 4 | 5 |
| Cooling | Natural Air | |||||||
| Approx Dimensions | Height | 625 mm | 625 mm | 660 mm | 660 mm | 980 mm | 980 mm | 980 mm |
| Length | 800 mm | 800 mm | 865 mm | 865 mm | 620 mm | 620 mm | 700 mm | |
| Width | 510 mm | 510 mm | 685 mm | 685 mm | 600 mm | 600 mm | 670 mm | |
| Approx Weight | 115 kg | 125 kg | 175 kg | 140 kg | 170 kg | 185 kg | 225 kg | |
| “SHREE” Brand Regular Type Welding Machine – Double Holder Heavy Model | |||
| Specification | Units | Double Holder | |
| Model | Amps | RAWD 300 | RAWD 400 |
| Input Supply | Volts | 380/440 | 380/440 |
| Phase | 2 | 2 | |
| Frequency | Hzs | 50 | 50 |
| Welding Current Range With Low & High Range Selection | Amps | 60 – 300 | 80 – 400 |
| Insulation Class | A | A | |
| Max. Open Circuit Voltage (O.C.V.) | Volts | ||
| Max. Continuous Hand Welding Current At 60% Duty Cycle | Amps | 300 | 400 |
| Welding Electrode Size Min. | mm | 2.5 | 2.5 |
| Welding Electrode Size Max. | mm | 4 | 4 |
| Cooling | Natural Air | ||
| Approx Dimensions | Height | 840 mm | 840 mm |
| Length | 840 mm | 840 mm | |
| Width | 630 mm | 630 mm | |
| Approx Weight | 155 kg | 190 kg | |
| “SHREE” Brand Pedal Type Spot Welding Machine – Light Model | ||||
| Light Duty Model | ||||
| Model | Unit | PRSWL 6 | PRSWL 8 | PRSWL 10 |
| Rating @50% Duty Cycle | K.V.A. | 6 | 8 | 10 |
| Input Supply | Volts | 230/440 | 230/440 | 230/440 |
| Phase | 1/2 | 1/2 | 1/2 | |
| Single Phase / 2 Line Of 3 Phase Supply | ||||
| Insulation Class | A (CU.) | A (CU.) | A (CU.) | |
| Nominal Throat Clearance | mm | 230 | 230 | 230 |
| Throat Depth | mm | 450 | 450 | 450 |
| Max. Electrode Stroke | mm | 40 | 40 | 40 |
| Nominal Electrode Force (Approx.) | Kgs. | 100 | 100 | 100 |
| Max. Available Short Circuit Current | K. Amps | 7.5 | 7.5 | 7.5 |
| Welding Range | ||||
| Mild Steen Thickness In | mm | 1.5 | 2 | 2.5 |
| mm | 0.3 | 0.3 | 0.3 | |
| Brass Steel Thickness In | mm | 0.8 | 0.9 | 1.1 |
| mm | 0.1 | 0.1 | 0.2 | |
| Stainless Steel Thickness In | mm | 1.5 | 1.8 | 2.2 |
| mm | 0.2 | 0.25 | 0.28 | |
| “SHREE” Brand Pedal Type Spot Welding Machine – Heavy Model | ||||||
| Heavy Duty Model | ||||||
| Model | Unit | PRSWH 8 | PRSWH 10 | PRSWH 12 | PRSWH 15 | PRSWH 20 |
| Rating @50% Duty Cycle | K.V.A. | 8 | 10 | 12 | 15 | 20 |
| Input Supply | Volts | 230/440 | 230/440 | 230/440 | 380/440 | 380/440 |
| Phase | 1/2 | 1/2 | 1/2 | 2 | 2 | |
| Single Phase / 2 Line Of 3 Phase Supply | ||||||
| Insulation Class | A (CU.) | A (CU.) | A (CU.) | A (CU.) | A (CU.) | |
| Nominal Throat Clearance | mm | 230 | 230 | 230 | 230 | 230 |
| Throat Depth | mm | 450 | 450 | 450 | 450 | 450 |
| Max. Electrode Stroke | mm | 40 | 40 | 40 | 40 | 40 |
| Nominal Electrode Force (Approx) | Kgs. | 100 | 100 | 100 | 100 | 100 |
| Max. Available Short Curcit Current | K. Amps | 7.5 | 7.5 | 8 | 10 | 12 |
| Welding Range | ||||||
| Mild Steen Thickness In | mm | 2 | 2.5 | 3 | 3.5 | 4 |
| mm | 0.3 | 0.3 | 0.4 | 0.5 | 0.6 | |
| Brass Steel Thickness In | mm | 0.9 | 1.1 | 1.2 | 1.5 | 2 |
| mm | 0.1 | 0.2 | 0.25 | 0.3 | 0.3 | |
| Stainless Steel Thickness In | mm | 1.8 | 2.2 | 2.4 | 2.4 | 3 |
| mm | 0.25 | 0.28 | 0.32 | 0.35 | 0.4 | |
| Colling For Arms & Electrode | Water | |||||
| Colling | Natural Air | |||||
| Approx Dimensions | Height | 1280 mm | 1280 mm | 1280 mm | 1280 mm | 1280 mm |
| Length | 660 mm | 660 mm | 660 mm | 660 mm | 700 mm | |
| Wight | 465 mm | 465 mm | 465 mm | 465 mm | 500 mm | |
| Approx Weight 100% Copper | 150 kg | 155 kg | 158 kg | 160 kg | 185 kg | |
| Approx Weight Semi – Copper | – | 150 kg | 152 kg | 155 kg | – | |
| “SHREE” Brand Pneumatic Roker ARM Type Spot Welding Machine | ||||
| Model | Unit | PRSW 10 | PRSW 12 | PRSW 15 |
| Rating @50% Duty Cycle | K.V.A. | 10 | 12 | 15 |
| Input Supply | Volts | 380/440 | 380/440 | 380/440 |
| Phase | 2 | 2 | 2 | |
| 2 Line Of 3 Phase Supply | ||||
| Insulation Class | A (CU.) | A (CU.) | A (CU.) | |
| Nominal Throat Clearance | mm | 250 | 250 | 250 |
| Throat Depth | cm | 50 | 50 | 50 |
| Max. Available Short Circuit Current | K. Amps | 7.5 | 8 | 10 |
| Max. Electrode Force @ 6 kg/cm² | 450 | 450 | 450 | |
| Max.Upper Electrode Stroke | mm | 50 | 50 | 50 |
| Colling For Arms & Electrode | Water | |||
| Colling | Natural Air | |||
| Approx Dimension In | Height | 1280 mm | 1280 mm | 1280 mm |
| Length | 660 mm | 660 mm | 660 mm | |
| Wight | 465 mm | 465 mm | 465 mm | |
| Approx Weight 100% Copper | 172 kg | 175 kg | 180 kg | |
| Approx Weight Semi – Copper | 165 kg | 167 kg | 173 kg | |
| “SHREE” Brand Pneumatic Spot Welding Machine WITH Micro Controller | |||||
| Pneumatic Type | |||||
| Model | Unit | PCSW 15 | PCSW 20 | PCSW 25 | PCSW 30 |
| Rating @50% Duty Cycle | K.V.A. | 15 | 20 | 25 | 30 |
| Input Supply | Volts | 380/440 | 380/440 | 380/440 | 380/440 |
| Phase | 2 | 2 | 2 | 2 | |
| 2 Line Of 3 Phase Supply | |||||
| Insulation Class | A (CU.) | A (CU.) | A (CU.) | A (CU.) | |
| Nominal Throat Clearance | mm | 250 | 250 | 250 | 250 |
| Throat Depth | cm | 50 | 50 | 50 | 50 |
| Max. Available Short Circuit Current | K. Amps | 10 | 12 | 15 | 18 |
| Max. Electrode Force @ 6 kg/cm² | 450 | 450 | 450 | 450 | |
| Max.Upper Electrode Stroke | mm | 50 | 50 | 50 | 50 |
| Colling For Arms & Electrode | Water | Water | Water | Water | Water |
| Colling | Natural Air | ||||
| Approx Dimension | Height | 1620 mm | 1620 mm | 1900 mm | 1900 mm |
| Length | 750 mm | 750 mm | 1040 mm | 1040 mm | |
| Wight | 500 mm | 500 mm | 510 mm | 510 mm | |
| Approx Weight 100% Copper | 225 kg | 255 kg | 290 kg | 320 kg | |
| Approx Weight Semi – Copper | 217 kg | 245 kg | – | – | |
| User Has To Provide The Following Services | |||||
| Size Of Main Supply Copper Cable | MM² | 16 | 20 | 25 | 25 |
| Recommended Switch Rating | Amps | 32 | 40 | 60 | 75 |
| Delayed Action Fuse Rating | Amps | 32 | 32 | 63 | 63 |
| External Water Supply At Max. Temp. 30°c | Lit./Min | 6 | 7 | 7 | 7 |
Anand Ravani (Bhavesh Engineering Works)
�8 Maninagar,rn�Mavdi Plot, rn�Rajkot - 360 004,rn�Gujarat (India) - 360004
Share us via
