Bhavya Machine Tools

Satellite, Ahmedabad, Gujarat

Model NoPBR315 - PBR6060

3 Roll Pyramid type design machine.The robust welded structure is made of UT tested IS:2062 M.S. plates.The top roll adjustment is by Screw Jack.Bottom rolls are power driven.Bending rolls are made of alloy steel.

Roll PYRAMID Type Design Machine.The Robust Welded Structure Is Made Of UT Tested IS:2062 M.S. Plates.The Top Roll Adjustment Is By Hydraulic Cylinder.Bottom Rolls Are Power Driven.Bending Rolls Are Made Of Alloy Steel.

Overload protection.Built-in cone bending attachment.Bending rolls are made of alloy steel.International quality Hydraulic & Electrical.Dropper end protection by hydraulic cylinders.Bottom rolls up-down through hydraulic cylinders.Top roll is fixed and bottom rolls moves up & down.3 Roll Pyramid Type design with double pre-pinching arrangement.Two bottom rolls are power driven by planetary gear box with electric or hydraulic motor.Low role, smooth operation and less power consumption due to hydraulic system operates at lower pressure in smaller thickness.

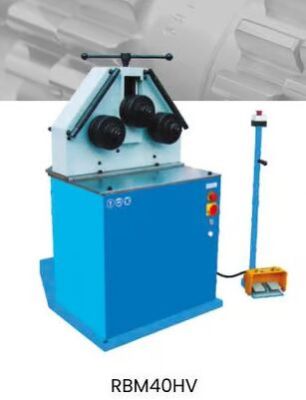

High Strength Steel Roll.Quick Release Top Roller.Standard Series Wire Core Groove.Asymmetrical Roll Bending Machine.Fixed Top Roller, Adjustable Lower and Rear Roller.

High Strength Steel Roll.Conical Bending Feature.Electric lifting of back roller.Standard Series Wire Core Groove.Asymmetrical Roll Bending Machine.Top Roll Swing Out Across Cam Lock.Digital indicator of back roller position.Fixed Top Roller, Adjustable Lower and Rear Roller.

Use high function imported Japan Yuken hydraulic components.Have big capacity cooling system and can control the working temperature.The machine is NC control, hydraulic drive, can have different bending degree to prefabricate.The machine have easy convenient, stable function, high efficiency, high safety factor, is the ideal choice for the pipe processing.English display screen, Man-machine dialogue operation. Can choose manual, semi-automatic, portable pedal have start, emergency stop function.

4 sets standard rollers.Special steel adjustable.Heavy and solid cast iron construction.

Instruction Manual.Standard roller: 30mm.Grinds any diameter from 20-76mm.Grinds at any angle from 30 to 90.With dust collector connector in PRS-76C.With double speed motor, forward and reverse control.Combination of tube grinding, surface grinding and wheel grinding three function.

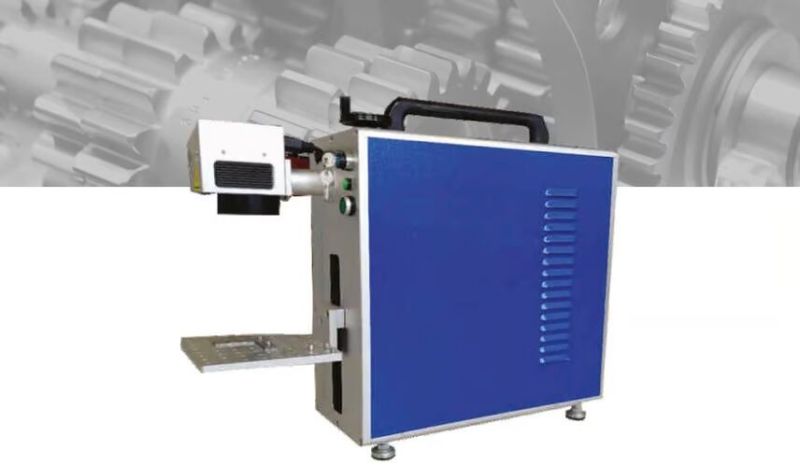

Model YLH-20L/YLH-30L/YLH-50LLaser Source RaycusLaser Type FiberPower 20W/30W/50WWork Precision 0.01mmSoftware EZCAD 2.12 ProfessionalCooling Air CooledPower consumption d"500Work Area 110x110mm/175x175mm/200x200mmMaximum Marking Speed 12000mm/sMin Character 0.2mm X 0.2mmMarking Depth 0.01-1.0mm (Subject to Material)Wavelength 1064mmLaser Module Life 1, 00, 000 HoursLaser Repetition Frequency 20KHz-80KHz (Adjustable)Power Requirement AC 220V/50Hz/2AOptimum Working Temperature 13-30 CSupport Format PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG, PCX

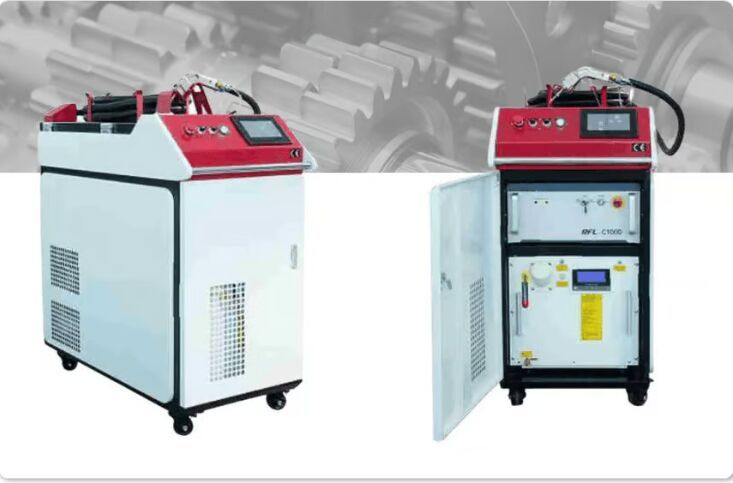

Environmental Protection: In traditional argon arc welding, considerations such as arc radiation, metal fume, and harmful gases make recruitment difficult. However, compared with fiber-optic handheld laser welding machines, it is easy to solve.Portable Design: Because Bhavya's handheld fiber laser welding machine uses the design of an integrated cabinet. Which integrates lasers, cooling devices, software control, etc. And has the advantages of small footprint, convenient movement, and powerful functions.More Convenient for Operation: Now hand-held welding, using a handheld welding gun instead of a fixed light path, is more convenient to operate. The welding work piece has no deformation, no welding marks, and the welding is firm.Photo Gallery

Machine EnclosureLive Cutting ScreenAuto Focus HeadAuto Pallet ChangerPipe CuttingFumes Extraction SystemScrap Collection SystemApplicationsJob & Machine Shop ApplicationsAerospaceAutomotive ComponentsAgricultural Machinery Pharma MachineryPrinting MachineryTextile MachineryConstructional MachineryEarth Moving MachineryWood Processing MachineryPaper Processing MachineryFood Processing MachineryArchitectural Profiles

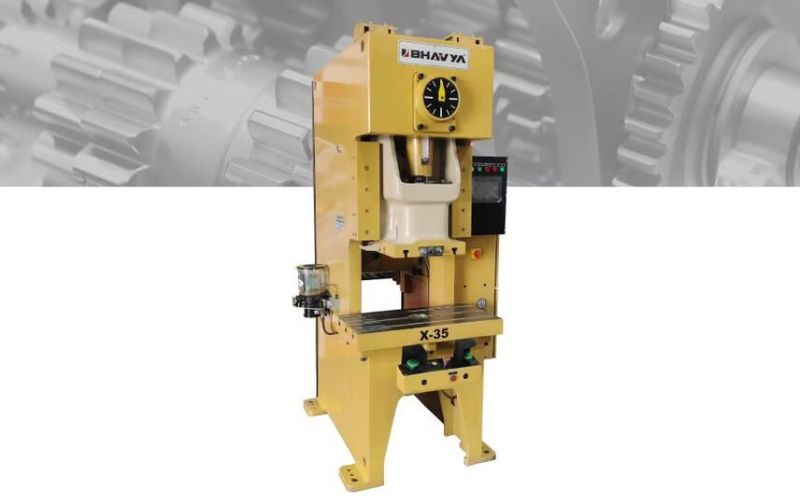

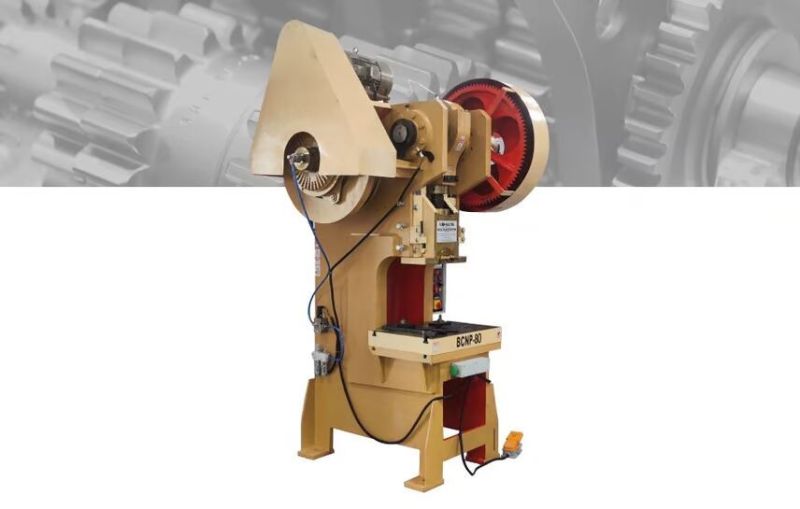

Frame: The frame is of all steel construction, fabricated from rolled steel plates with suitable cross ribbings. The structure is designed for perfectly balanced distribution of stress over the cross section, eliminating deflection and vibration. This results in increased tool and machine life.Clutch: The clutches are of pin/rolling key-type and well supported with high rigidity. The clutch is made of special alloy steel, while the pin/rolling key is manufactured from W.P.S. / EN24 material and properly heat-treated to ensure trouble-free long life and continuous strokes for mass production.Crank Shaft: The crank shaft is made of special alloy steel, precisely machined to a grind finish with closed accuracy. It is fitted in bronze bushes for smooth working, longer life, and consistent performance.Adjustable Stroke: The unique feature of adjustable stroke enables the press to perform all kinds of operations by employing short strokes for blanking and forming operations.Flywheel: The properly sized flywheel is made of high-grade cast iron, designed for storing and releasing adequate energy for the pressing operation. It is also properly balanced for smooth running.Gears: Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.Ram & Bed: Ram Slides is made of high grade heavy duty cast iron & properly seasoned, aligned & fitted with Hylum Sheet on back side for friction free travel through slides, ensuring longer life of die and easy operation. Bed is made of high grade heavy duty cast iron & properly seasoned & properly aligned with ram to obtain high accuracy and precision press operation.

Frame: The frame is of all steel construction, fabricated from rolled steel plates with suitable cross ribbings. The structure is designed. for perfectly balanced distribution of stress over the cross section eliminating deflection & vibration, in result increased tool & machine life.Clutch:The clutches of pin/rolling key-type and well supported with high rigidity. The Clutch is made of special alloy steel, the pin/rolling key is manufactured from W.P.S./EN24 material & with proper heat treatment to ensure trouble free long life & give continues stroke for mass production.Crank Shaft: The Crank shaft is made of special alloy steel with precisely machined to grind finish having closed accuracy and fitted in bronze bushes for smooth working, longer life with consistent performance.Adjustable Stroke: The unique feature of adjustable stroke enables the press to perform all kinds of operations by employing short stroke for blanking and forming operation.Flywheel: Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the pressing operation, and properly balanced for smooth running.Gears: Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machineRam & Bed: Ram Slides is made of high grade heavy duty cast iron & properly seasoned, aligned & fitted with Hylum Sheet on back side for friction free travel through slides, ensuring longer life of die and easy operation. Bed is made. of high grade heavy duty cast iron & properly seasoned & properly aligned with ram to obtain high accuracy and precision press operation.

Rigid frame with less deflection.High accuracy meets the QMS 1st level.High torque, low noise wet clutch and brake.Forced Lubrication system with default monitor ensures the operation reliability.High accuracy transmission gears and high rigidity crank ensure press long life and accuracy.User-friendly design and all-function electric control system enable the accessories to attach easily.

Repeated positioning fast, tapping speed, high production efficiency.Step less speed change, manual, automatic, linkage three modes of work, whatever you choose.Automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.Advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non-deformation, beautiful appearance.The machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy work piece, locate quickly, and process accurately.

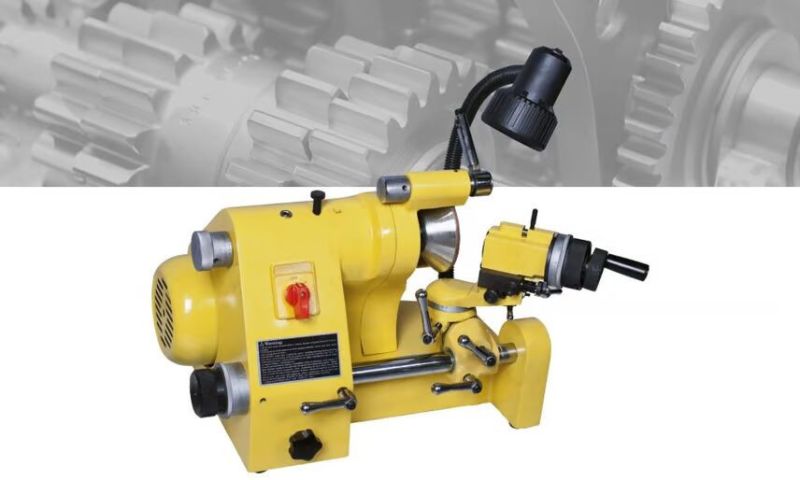

Model U2Collet Diamenter 03 - 16mm (25mm)Motor 220 V/380 V 1/3 HP 50HzGrinding wheel 100 50 20Speed 5300 rpmDimension 54 x 42 x 34 cmWeight 47 kg

Collet Attachment & Collets4" Self Centering ChuckPositive Indexing AttachmentExtension Piece for Internal Grinding SpindleCutter ArborsWheel FlangesDressing DiamondMachine Lamp with Transformer

Model 20GGrinding Range 3 - 20Point Angle 100 (90) - 135Power AC 220 VMotor 120 WSpeed 4800 rpmGrinding Wheel CBN (for HSS)Dimension 32 x 19 x 20 cmWeight 11 kg

Model X8Grinding Range 6.0 - 20 mmPoint Angle 0 3Power 220V / 250WSpeed 4400 rpmPackage 53 x 29 x 37 cmNet/Gross Weight 40 kg
