ENERGY METER CALIBRATOR

We are leaders in the market for providing best range of Three Phase Kwh Meter Test Equipment and HANDHELD THREE PHASE ENERGY METER CALIBRATOR

Three Phase Kwh Meter Test Equipment

Three Phase Kwh Meter Test Equipment
₹ 4.32 Lakh / Set Get Latest Price
  • Min. Order (MOQ) 1 Set(s)
  • Accuracy 0.05%, 0.1% Power Supply One Phase AC 180-265V, frequency 50/60Hz.
  • Range(U1,U2,U3) 57.7V, 100V, 220V, 380V or 69.3V, 120V, 240V, 480V( optional) Adjustment range (0-120)%RG(1)
  • Adjustment range (0-120)%RG(1) Stability 0.01%/120s
  • Distortion 0.3% (Non-capacitive load) Output load each phase 25VA
  • Measuring accuracy 0.05%RG Accuracy 0.05%RG
INTRODUCTION:The Portable Three Phase kWh Meter test equipment is used for grid corporation of measurement and energy test center, management department of power supply bureau, national energy measurement of testing authorities, and also used to test each kind of singlethree phase kWh meter of industries and mining enterprises as well as electric meter manufacturers. Meanwhile, the calibrator also can be used as one high precision standard power source.FEATURES1. Able to test basic error, shunt running, start, standard error automatically and manually in single-step of singlethree phase, according to relative regulation of kWh meter.2. Able to do change test caused by voltage influence, frequency influence and harmonic influence.3. Output of power source is speedy and stable, AC maximum output of each phase can reach 120A in maximum.4. Voltage, current and phase position of each phase can be adjusted in split-phase, improving the flexibility of power source.5. Frequency of each impulse input port can reach 40Hz.6. 7-inch TFT color display touch screen, English menu, simple and convenient operation, commonly used functions and current basic load point can be controlled in one button.7. Each meter position can provide one standard, dependent RS485 port, and able to perform multi-function test, such as communication test.8. Impulse port of each meter position, external polarity can be set randomly, able to adapt kWh meter of impulse cascade and common-anode. PARAMETERSElectrical parametersAccuracy 0.05%, 0.1%Power Supply One Phase AC 180-265V, frequency 5060Hz.AC Voltage OutputRange(U1, U2, U3) 57.7V, 100V, 220V, 380Vor 69.3V, 120V, 240V, 480V( optional)Adjustment range (0-120)%RG(1)Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.Stability 0.01%120sDistortion 0.3% (Non-capacitive load)Output load each phase 25VAMeasuring accuracy 0.05%RG

Additional Information:

Payment Terms : T/T, Western Union,

Delivery Time : 7 Days

View Complete Details
Ask Latest Price & Details

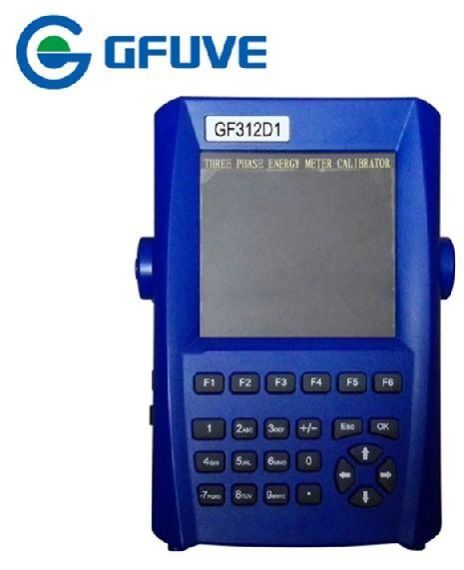

HANDHELD THREE PHASE ENERGY METER CALIBRATOR

HANDHELD THREE PHASE ENERGY METER CALIBRATOR
₹ 4.05 Lakh / Set Get Latest Price
  • Min. Order (MOQ) 3 Set(s)
  • Accuracy class 0.05%, 0.1% Power supply One Phase AC 100-265V, frequency 50/60Hz.
  • Range(U1,U2,U3) 57.7V, 100V, 220V, 380V or 69.3V, 120V, 240V, 480V( optional) Adjustment range (0-120)%RG(1)
  • Adjust fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. Stability 0.01%/120s
  • Distortion 0.3% (Non-capacitive load) Output load each phase 30VA
INTRODUCTION:The instrument is a precision AC energy meter testing instrument, mainly used to test three phase energy meter error on site and measure all various of AC parameters. FEATURES AND FUNCTIONSThree phase active or reactive electricity energy meter.Calibrate three phase, single phase, and active or reactive meter error.Measure U(voltage) of three phase or single phase.Measure I(current) of three phase or single phase.Measure active power of three phase or single phase.Measure reactive power of three phase or single phase.Measure apparent power of three phase or single phase.Measure power factor of three phase or single phase.Measure phase angle between voltage and current.Measure frequency of power line.Display vector diagram.Display waveform of U and I.Analyze and display content of harmonic of U and I.Measure 2-64 harmonic of U, I.Store and display measured data.Optional 5A, 20A, 100A, 500A, 1000A, 2000A, 3000A current clamp.Measure CT variable ratio.Measure the ratio or lag-angle of low-voltage transformer.Adopt 32 bit ARM processor, multi-channel 16 bit precision AD convertor, high resolution TFT color LCD.Inner equipped with 0.01% wide-range current transformer and can be equipped with various type current clamps, wide range of measurement and high veracity.Low consumption circuit design, high energy Lithium battery supply, intellectual power management software, which enables the instrument continuously working up to 10 hours. PARAMETERSElectrical parametersAccuracy class 0.05%, 0.1%Resolution 6TFT (640480)Power supply 220V10%, 5060HzLi-polymer battery (size (mm): 110x51x16, nominal output voltage: 7.2V, capacity: 5000mAh)Power line supply (U1, UN), 85V-265V 5060HzCommunication port RS232Test voltageRange 0-480VError 0.05% (30V-480V)0.1% (5V-30V)Harmonic 2nd-64st

Additional Information:

Payment Terms : T/T, Western Union,

Delivery Time : 7 Days

View Complete Details
Ask Latest Price & Details
