AMMETER RECORDER

We offer a complete product range of High Voltage Wireless Primary Current Sensor and XQ20 High Precision Standard Mini Clamp-on Current Sensor Ct

High Voltage Wireless Primary Current Sensor

High Voltage Wireless Primary Current Sensor
₹ 4.10 Lakh / Set Get Latest Price
  • Min. Order (MOQ) 1 Set(s)
  • Data recording interval 1min, 5min, 10min,15min, 30min; Time can be set from 1 second to 60 minutes Communication distance(wireless) Max 100m
  • Communication 433M, 868M or 915M (option) Installation Installation with electricity; Disassemble with electricity
  • Battery 3.6 volt lithium battery,9000mAh; Battery can be replaced Software requirements PC-Linksoftware & microsoft Excel
  • Processor 100 MHz or higher (200 MHz or higher recommended) RAM 32 MB, 64M recommended
We are offering high voltage wireless primary current sensor.Introduction:gf2018 is the newest version of the wireless primary current sensor. Rational design and adopts 433m transmit technology for data transfer. It makes the current data recording more stable and accuracy. The primary current sensor using the pc and abs material, new waterproof technology, it can keep working on line in extreme weather. Features1.collect and analyze load profiles2.easily clamps to the line in a few seconds3.check for load balance4.patented open ct sensor with 1% accuracy5.433m communication with no annoying cables to connect6.recorded data quickly downloads into the user's pc7.pc-link software interface downloads directly into microsoft excel8.generate reports and create graphs for profile analysis description1. The primary current sensor uses the same sensor technology as the original rogowski coil. The true rms inductive sensor does not use magnetic materials. The opening of the sensor is electronically closed and external currents are electronically rejected.2. The accuracy, external current reject, and range of currents measured by the patented amp sensor substantially exceed the performance of the best clamp-on sensors. The key feature of the unit is the ability to leave it deployed on the line to record readings every 15 minutes for 90+ days. It easily attaches to the line with a standard insulating bar. Once on the line, it immediately begins to collect and record the primary current on the line.3. The primary current sensor is equipped with a 433m wireless port for communicating the recorded data into the users pc. The data is downloaded through gf2018s pc-link software, which allows the user to download, view and query the data stored on the primary current recorder.

Additional Information:

Payment Terms : T/T, Western Union,

Delivery Time : 7 Days

View Complete Details
Ask Latest Price & Details

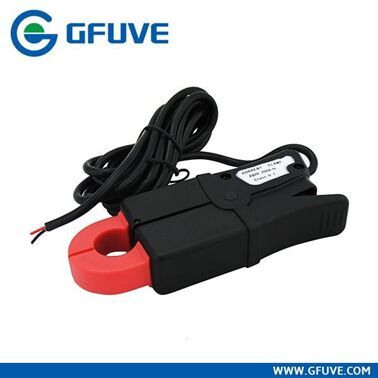

XQ20 High Precision Standard Mini Clamp-on Current Sensor CT

XQ20 High Precision Standard Mini Clamp-on Current Sensor CT
₹ 7,280 / Piece Get Latest Price
  • Min. Order (MOQ) 3 Piece(s)
  • Brand Name GFUVE
  • Phase Single
  • Material PC+ABS+Polycarbonate, UL94 V0
  • Country of Origin Beijing/China
  • Usage The model XQ20 clamp on current sensor is suitable for 200A cable online measurement, the user frien
  • Rated Voltage 69kV, 35kV, 20KV, 10kV, 6kV
  • Model Number XQ20
  • Current 0 - 200A AC ;0 - 200mA AC (customized);240A;
  • Dimensions (L x W x H) (mm) 52.5 x 137.5 x 28
  • Weight (g) 400
  • Ratio 1000: 1 or 2000:1 (customized)
  • Accuracy class 0.1%, 0.2%
  • Frequency range 40Hz-2000Hz
  • Temperature range -20°C to +55°C
Introductionxq20 high precision standard mini clamp-on current sensor ctthe model xq20 clamp on current sensor is suitable for 200a cable online measurement, the user friendly shape make it easily clamp onto cables or bus bars.Applications 1. electric energy meter calibrator (on site) 2. double clamp type ground resistance tester 3. double clamp type phase volt-ampere meter 4. digital multi-meter 5. multi-function energy meter 6. oscilloscope 7. power quality analyzer 8. matched instruments 9. calibration instrument on sitefeatures 1. measurement range of 1ma to 200a ac 2. small, compact size 3. improved ergonomic design and easy operation 4. low phase shift for power measurement 5. with load capacity 4 6. output model: lead output(2.5m)parametersratio 1000: 1 or 2000:1 (customized) accuracy class 0.1%, 0.2% primary current 0 - 200a ac secondary current 0 - 200ma ac (customized) max. Cont. Input current 240a load capacity 4 over voltage category cat iii 600v output signal (ac current) from 0 to 200ma ac at nominal input current electrical parameters output signal (ac voltage) from 0 to 2v ac at nominal input current frequency range 40hz-2000hz dielectric strength 3kv 50hz60hz at 1minute temperature range -20c to +55c output 2.5 meter cable with d01 connector max. Voltage not insulated conductors 600 v standard en 61010-1, en 61010-2-032, iec60044-1 installation clamp type output mode lead output (2.5m)dimensions (l x w x h) (mm) 52.5 x 137.5 x 28 weight (g) 400 holding wire diameter (mm) 20 max. Jaw opening (mm) 20 jaw color red, yellow, blue, green, black material pc+abs+polycarbonate, ul94 v0

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Packaging Details : standard export wooden box

Delivery Time : within 10 days

View Complete Details
Ask Latest Price & Details
