Min. Order (MOQ)
3 Set(s)
-
FU8000
Gray
-
Programmable PT, CT ratio, address, baud rate and other parameters.
Accuracy 0.5 class, frequency 0.2 class
-
Display figures 4 bits (4½ bits for DC)
Power supply AC220V ± 20% or DC100-300V (Customization)
-
Rated input Current: 1A,5A; Voltage: 100V, 220V, 380V; Temperature: PT100,J,K,T,E thermocouple.
Over range Current: 1.2 times continuous, 10 times/10s ; Voltage: 2 times continuous
-
MTBF ≥50000Hrs
Real-time output DC4-20mA, load capacity: ≤400Ω

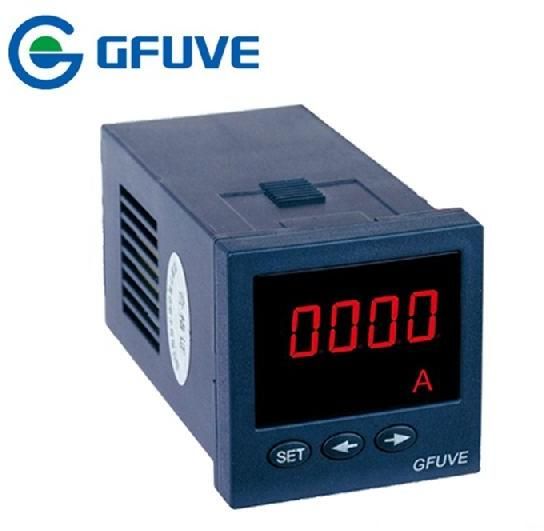

Introduction:fu8000 series single phase current and voltage display meter has replaced the traditional digital meter products. This product has the function of traditional products, also has programmable functions, such as dc4-20ma analog output, rs-485 communication interface port and the switching power output function. It has high accuracy, excellent emc and good appearance and so on. features1.it has programmable function2.dc4-20ma analog output3.high accuracy, excellent emc and good appearance4.rs-485 communication interface port technical parametersprogrammable pt, ct ratio, address, baud rate and other parameters. Accuracy 0.5 class, frequency 0.2 classdisplay figures 4 bits (4 bits for dc)rated input current: 1a, 5a; voltage: 100v, 220v, 380v;temperature: pt100, j, k, t, e thermocouple. Over range current: 1.2 times continuous, 10 times10s ;voltage: 2 times continuousfrequency 50hz 60hz 10%power supply ac220v 20% or dc100-300v (customization)power consumption
Additional Information:
Payment Terms :
T/T, Western Union
Delivery Time : 7 Days
