UV Sensor

We offer the best product range of GUVC-S10GD Aluminium Gallium Nitride UV Sensor, GUVV-T20GD-U Sterilization Lamp Monitoring UV Sensor, SG01M-5Lens Concentrator Lens SiC Based UV Photodiode UV Sensor, SG01D-5Lens Concentrator Lens SiC Based UV Photodiode UV Sensor and GUVB-C21SD UV-B Sensor UV Sensor.

GUVC-S10GD Aluminium Gallium Nitride UV Sensor

GUVC-S10GD Aluminium Gallium Nitride UV Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Spectral Detection Range 220-280nm
  • Operating Temperature -30 to +85’C
  • Active area 0.076mm2
1.featuresaluminium gallium nitride based materialschottky-type photodiodephotovoltaic mode operationgood solar blindness 2.applicationspure uv-c monitoringsterilization lamp monitoring 3.specificationsspectral detection range: 220-280nmactive area: 0.076mm2package: smd 3535 pkgchip size: 0.4mmresponsivity: 0.07 awstorage temperature: -40 to +90coperating temperature: -30 to +85c.

Additional Information:

Payment Terms : T/T

Delivery Time : 5~7 work days

View Complete Details
Ask Latest Price & Details

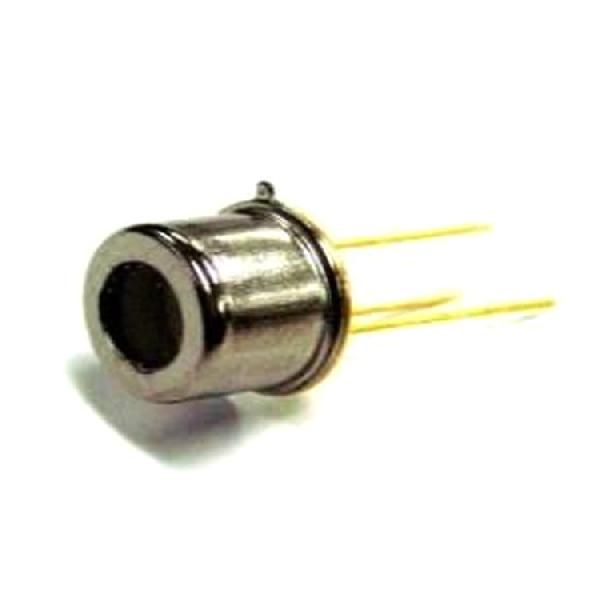

GUVV-T20GD-U Sterilization Lamp Monitoring UV Sensor

GUVV-T20GD-U Sterilization Lamp Monitoring UV Sensor
₹ 91 / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Number Of Flower Uv Sensor
  • Brand Name Genicom
  • Country of Origin South Korea
  • Model Number GUVV-T20GD-U
  • Spectral Detection Range 230-395nm
  • Active area 6.894mm2
  • Operating Temperature -30 to +85'C

1.features indium gallium nitride based material schottky-type photodiode photovoltaic mode operation high responsivity & low dark current 2.applications full uv band monitoring uv-a lamp monitoring sterilization lamp monitoring 3.specifications spectral detection range: 230-395nm active area: 6.894mm2 package: to 39 pkg chip size: 3.4mm responsivity: 0.15 aw storage temperature: -40 to +90'c operating temperature: -30 to +85'c.

Additional Information:

Payment Terms : T/T

Delivery Time : 5~7 work days

View Complete Details
Ask Latest Price & Details
SG01M-5Lens Concentrator Lens SiC Based UV Photodiode UV Sensor

SG01M-5Lens Concentrator Lens SiC Based UV Photodiode UV Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower sensor
  • Brand Name Sglux
  • Country of Origin Germany
  • Model Number SG01M-5Lens
  • Responsivity Range (S=0.1*Smax) 221 … 358nm
  • Typical Responsivity at Peak Wavelength 0.130 A/W
  • Sensitive Area 11.0 mm2
SiC based UV photodiode SG01M-5LENSConcentrator lens SiC based UV photodiode Avirtual = 11.0 mm2 1. Properties of the SG01M-5LENS UV photodiode* Broadband UVA+UVB+UVC, PTB reported high chip stability, for very weak radiation* Radiation sensitive area A = 11.0 mm2* TO5 hermetically sealed metal housing with concentrator lens, 1 isolated pin and 1 case pin* 10Wcm2 peak radiation results a current of approx. 140 nA 2. Spectral CharacteristicsTypical Responsivity at Peak Wavelength: 0.130 AWWavelength of max. Spectral Responsivity: 280nmResponsivity Range (S=0.1*Smax ): 221 358nmVisible Blindness (SmaxS >405nm ): >10^10 3. General Characteristics (T=25'C)Sensitive Area (chip size = 0.50 mm 2 ): 11.0 mm2Dark Current (1V reverse bias): 0.7fACapacitance: 50pFShort Circuit (10Wcm 2 at peak): 140nATemperature Coefficient: 0.1%K 4. Maximum RatingsOperating Temperature: 55 +170 'CStorage Temperature: 55 +170 'CSoldering Temperature (3s): 260 'CReverse Voltage: 20V
View Complete Details
Ask Latest Price & Details

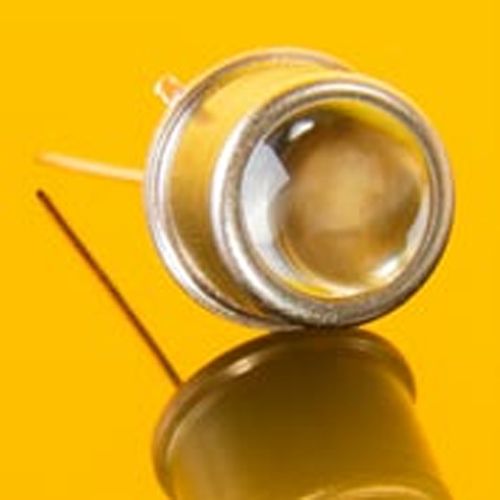

SG01D-5Lens Concentrator Lens SiC Based UV Photodiode UV Sensor

SG01D-5Lens Concentrator Lens SiC Based UV Photodiode UV Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower sensor
  • Brand Name Sglux
  • Country of Origin Germany
  • Model Number SG01D-5Lens
  • Typical Responsivity at Peak Wavelength 0.130 A/W
  • Responsivity Range 221 … 358nm
  • Sensitive Area 11.0 mm2
Sic based uv photodiode sg01d-5lensconcentrator lens sic based uv photodiode avirtual = 11.0 mm2 1. Properties of the sg01d-5lens uv photodiode* broadband uva+uvb+uvc, ptb reported high chip stability, for very weak radiation* radiation sensitive area a = 11.0 mm2* to5 hermetically sealed metal housing with concentrator lens, 1 isolated pin and 1 case pin* 10wcm2 peak radiation results a current of approx. 350 na 2. Spectral characteristicstypical responsivity at peak wavelength: 0.130 awwavelength of max. Spectral responsivity: 280nmresponsivity range (s=0.1*smax ): 221 358nmvisible blindness (smaxs >405nm ): >10^10 3. General characteristics (t=25'c)sensitive area (chip size = 0, 50 mm 2 ): 11.0 mm2dark current (1v reverse bias): 1.7facapacitance: 125pfshort circuit (10wcm2 at peak): 350natemperature coefficient: 0.1%k 4. Maximum ratingsoperating temperature: -55 +170 'cstorage temperature: -55 +170 'csoldering temperature (3s): 260 'creverse voltage: 20v
View Complete Details
Ask Latest Price & Details

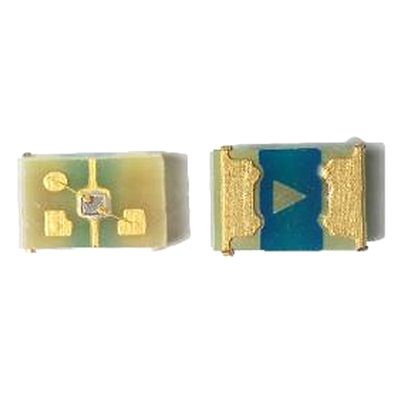

GUVB-C21SD UV-B Sensor UV Sensor

GUVB-C21SD UV-B Sensor UV Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower UV Sensor
  • Brand Name Genicom
  • Country of Origin South Korea
  • Model Number GUVB-C21SD
  • Operating Temperature -30~85℃
  • Temperature Coefficient 0.1%/℃
  • Responsivity 0.11A/W
  • Spectral Detection Range 240~320nm
1. Featuresaluminium gallium nitride based materialschottky-type photodiodephotovoltaic mode operationgood visible blindnesshigh responsivity & low dark current 2. Applicationsuv index monitoring 3. Absolute maximum ratingsstorage temperature: -4090operating temperature: -3085reverse voltage: 3vforward current: 1maoptical source power range: 0.1100m wcm2soldering temperature: 260 4. Characteristics (at 25)dark current: 1natemperature coefficient: 0.1%responsivity: 0.11awspectral detection range: 240320nmactive area: 0.07mm2
View Complete Details
Ask Latest Price & Details
GUVB-T21GD-U UV Sensor

GUVB-T21GD-U UV Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower UV Sensor
  • Brand Name Genicom
  • Country of Origin South Korea
  • Model Number GUVB-T21GD-U
  • Operating Temperature -30~85℃
  • Dark Current(Max.) 90nA
  • Responsivity 0.13A/W
  • Spectral Detection Range 220~320nm
1. Featuresaluminium gallium nitride based materialschottky-type photodiodephotovoltaic mode operationgood visible blindnesshigh responsivity & low dark current 2. Applicationsuv-b lamp monitoringuv-b led monitoring 3. Absolute maximum ratingsstorage temperature: -4090operating temperature: -3085reverse voltage: 3vforward current: 1maoptical source power range: 0.001100m wcm2soldering temperature: 260 4. Characteristics (at 25)dark current(max.): 90naphoto current(typ.): 7.4atemperature coefficient: 0.1%responsivity: 0.13awspectral detection range: 220320nmactive area: 6.89mm2
View Complete Details
Ask Latest Price & Details

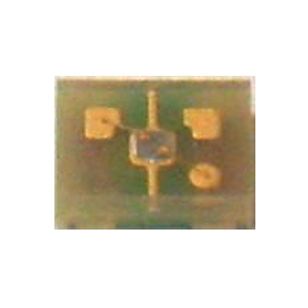

GUVA-C22SD UV-A Sensor

GUVA-C22SD UV-A Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower UV Sensor
  • Brand Name Genicom
  • Country of Origin South Korea
  • Model Number GUVA-C22SD
  • Operating Temperature -30~85℃
  • Responsivity 0.14A/W
  • Spectral Detection Range 240~370㎚
  • Active area 0.076㎟
1. Featuresgallium nitride based materialschottky-type photodiodephotovoltaic mode operationgood visible blindnesshigh responsivity & low dark current 2. Applicationsuv index monitoringuv-a lamp monitoring 3. Absolute maximum ratingsstorage temperature: -4090operating temperature: -3085reverse voltage: 5vforward current: 1maoptical source power range: 0.1100m wsoldering temperature: 260 4. Characteristics (at 25)dark current: 1na maxtemperature coefficient: 0.08%responsivity: 0.14awspectral detection range: 240370active area: 0.076
View Complete Details
Ask Latest Price & Details

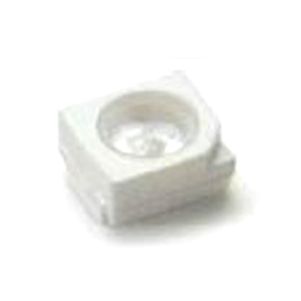

GUVA-S12SD UV-A Sensor UV Sensor

GUVA-S12SD UV-A Sensor UV Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower Sensor
  • Brand Name Genicom
  • Country of Origin South Korea
  • Model Number GUVA-S12SD
  • Operating Temperature -30~85℃
  • Responsivity 0.14A/W
  • Spectral Detection Range 240~370㎚
  • Active area 0.076mm2
1.featuresgallium nitride based materialschottky-type photodiodephotovoltaic mode operationgood visible blindnesshigh responsivity & low dark current 2.applicationsuv index monitoringuv-a lamp monitoring 3.absolute maximum ratingsstorage temperature: -4090operating temperature: -3085reverse voltage: 5vforward current: 1maoptical source power range: 0.1u100m wcm2soldering temperature: 260 4.characteristics (at 25)dark current: 1natemperature coefficient: 0.08%responsivity: 0.14awspectral detection range: 240370active area: 0.076mm2.

Additional Information:

Payment Terms : T/T

Delivery Time : 5~7 work days

View Complete Details
Ask Latest Price & Details
UV Sensor GUVB-S11SD

UV Sensor GUVB-S11SD
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower UV Sensor
  • Brand Name Genicom
  • Country of Origin South Korea
  • Model Number GUVB-S11SD
  • Operating Temperature -30~85℃
  • Dark Current 1nA
  • Responsivity 0.11A/W
  • Spectral Detection Range 240~320nm
  • Active area 0.076mm2
1. Ftatures- chip size:0.4mm, smd 3528 pkg- aluminium gallium nitride based material- schottky-type photodiode- photovoltaic mode operation- good visible blindness- high responsivity & low dark current 2. Applicationuv index monitoring 3. Absolute maximum ratingsstorage temperature: -4090operating temperature: -3085reverse voltage: 3vforward current: 1maoptical source power range: 0.1100m wcm2soldering temperature: 260 4. Characteristics (at 25)dark current: 1natemperature coefficient: 0.1%responsivity: 0.11awspectral detection range: 240320nmactive area: 0.076mm2
View Complete Details
Ask Latest Price & Details
GUVA-T11GD-L UV-A Sensor UV Sensor

GUVA-T11GD-L UV-A Sensor UV Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower UV Sensor
  • Brand Name Genicom
  • Country of Origin South Korea
  • Model Number GUVA-T11GD-L
  • Operating Temperature -30~85℃
  • Responsivity 0.18A/W
  • Spectral Detection Range 220~370㎚
  • Active area 1.536㎟
1.FeaturesGallium Nitride Based MaterialSchottky-type PhotodiodePhotovoltaic Mode OperationGood Visible BlindnessHigh Responsivity & Low Dark Current 2.ApplicationsFull UV Band MonitoringUV-A Lamp Monitoring 3. Absolute Maximum RatingsStorage Temperature: -4090Operating Temperature: -3085Reverse Voltage: 5VForward Current: 1mAOptical Source Power Range: 0.01100m WSoldering Temperature: 260 4. Characteristics (at 25)Dark Current: 20nAPhoto Current: 2.83.4, 3.4(Typ)Temperature Coefficient: 0.05%Responsivity: 0.18AWSpectral Detection Range: 220370Active area: 1.536

Additional Information:

Payment Terms : T/T

Delivery Time : 5~7 work days

View Complete Details
Ask Latest Price & Details
GUVB-T11GD-L UV-B Sensor UV Sensor

GUVB-T11GD-L UV-B Sensor UV Sensor
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower UV Sensor
  • Brand Name Genicom
  • Country of Origin South Korea
  • Model Number GUVB-T11GD-L
  • Operating Temperature -30~85℃
  • Responsivity 0.13A/W
  • Spectral Detection Range 220~320nm
  • Active area 1.536mm2
1. Featuresaluminium gallium nitride based materialschottky-type photodiodephotovoltaic mode operationgood visible blindnesshigh responsivity & low dark current 2. Applicationsuv-b lamp monitoringuv-b led monitoring 3. Absolute maximum ratingsstorage temperature: -4090operating temperature: -3085reverse voltage: 3vforward current: 1maoptical source power range: 0.01100m wcm2soldering temperature: 260 4. Characteristics (at 25)dark current(max.): 20naphoto current(typ.): 1.5temperature coefficient: 0.1%responsivity: 0.13awspectral detection range: 220320nmactive area: 1.536mm2
View Complete Details
Ask Latest Price & Details
