Our Products
Our product range contains a wide range of Pressure and Temperature Data Logger (Series DLP) and High Temperature Data Logger (Model HTDL-20/30)
Pressure and Temperature Data Logger (Series DLP)

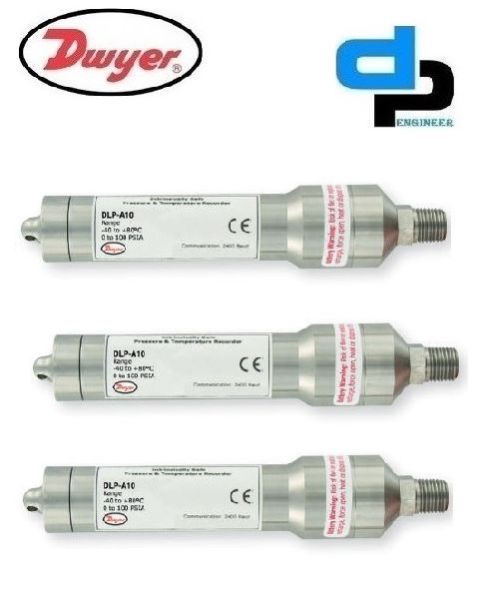

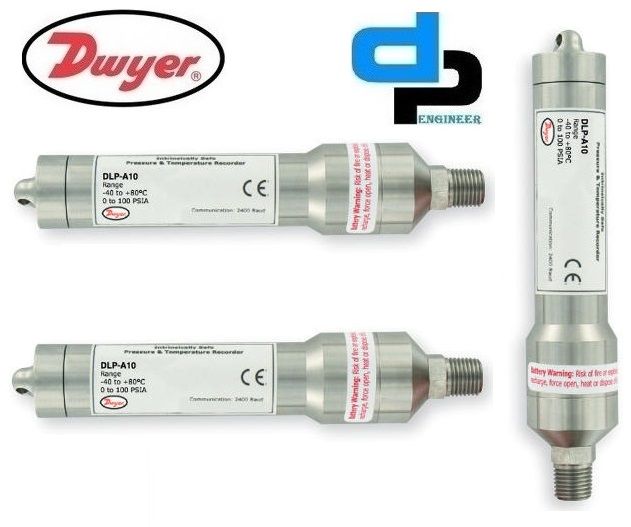

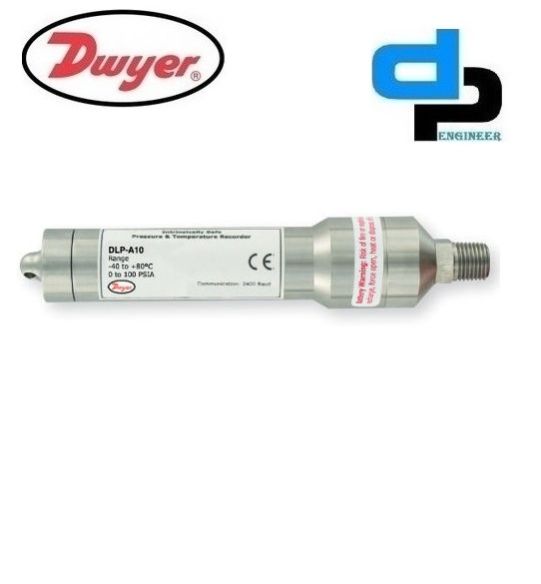

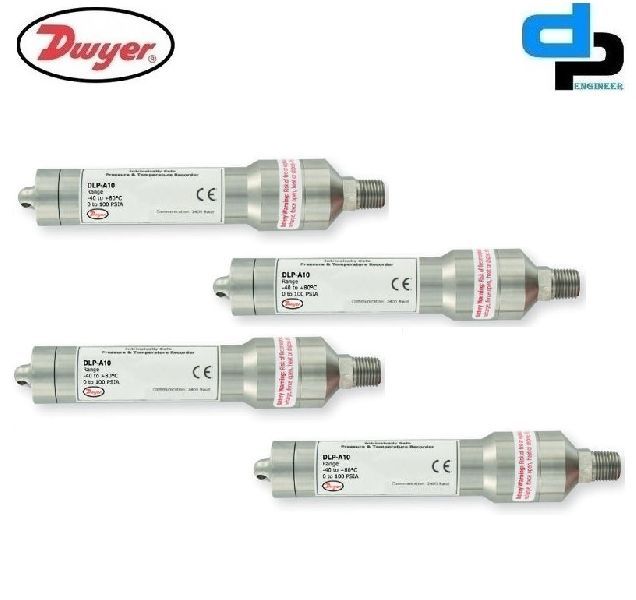

Series DLP Pressure/Temperature Data Logger
1/4" NPT Fitting, Up to 5000 psia
The Series DLP Data Logger can record pressure and temperature. The 1/4" NPT fitting comes standard and allows the logger to be adapted to almost any pressure fitting. The internal temperature sensor provides accurate temperature measurements without the need of a separate temperature recorder, and many of the models provide a choice between measuring pressure in psia or psig. The DLP can easily be started and stopped from a PC or delayed to start up to six months in advance. The battery-powered data logger can store over 16, 000 measurements per channel, and the easy to use DL700 software makes retrieving data simple.
Product Applications
Building automation
Clean room
Operating rooms
Process applications
Labs
Regulated environments
ModelDescription
DLP-A08Pressure/temperature data logger, range 0-30 psia.
DLP-A10Pressure/temperature data logger, range 0-100 psia.
DLP-A13Pressure/temperature data logger, range 0-300 psia.
DLP-A14Pressure/temperature data logger, range 0-500 psia.
DLP-A15Pressure/temperature data logger, range 0-1000 psia.
DLP-A19Pressure/temperature data logger, range 0-5000 psia.
DLP-G08Pressure/temperature data logger, range 0-30 psig.
DLP-G10Pressure/temperature data logger, range 0-100 psig.
DLP-G13Pressure/temperature data logger, range 0-300 psig.
DLP-G14Pressure/temperature data logger, range 0-500 psig.
Specifications
Range:Temperature: -40 to 176F (-40 to 80C); Pressure: 0 to 30 psia(g), 0 to 100 psia(g), 0 to 300 psia(g), 0 to 500 psia(g), 0 to 1000 psia, and 0 to 5000 psia depending on the model.
Memory Size:16, 383 readings per channel.
Accuracy:Temperature: 0.9F (0.5C); Pressure: 2% FSR, 0.25% at 77F (25C) typical.
Resolution:Temperature: 0.2F (0.1C); Pressure: 0.002 psia(g), 0.005 psia(g), 0.05 psia(g), 0.05 psia, and 0.2 psia depending on the model.
Sampling Method:Stop on memory full.
Sampling Rate:Selectable from 2 sec to 12 hrs.
Computer Requirements:Windows 95, Windows 98, Windows 2000, Windows ME, Windows NT, and Windows XP operating system, one free USB port.
Power Requirements:3.6 V TL2150 lithium metal battery, installed functional, user replaceable.
Battery Life:1 yr (approx).
Interface:USB port (interface cable required).
Material:Stainless steel.
Weight:12 oz (340 g).Agency
Approvals:CE.
Features
Efficient data capture tool to review processes are running correctly or to analyze alarm and out-of-spec conditions
Battery-powered reduces need to hard wire power allowing device to be used in a as a tool in a variety of in-and-out testing
PC start and stopping allows centralized control of data collection
Accessories
Model NumberDescription
DL700Software, manual and USB interface cable(6').
TL-2150Replacement battery.
Related Products
Series 763 & 764 Field-Fillable & Glycerin-Filled Process Gage
Series IS626 Intrinsically Safe Pressure Transmitter
Certification : YES
Usage : Building Automation
Material : Stainless Steel
Brand Name : DWYER USA
Warranty : 1Year
Weight : 12 Oz (340 G).
Name : Series DLP Pressure/Temperature Data Logger
Power Source : User Replaceable.
Color : White
Voltage : User Replaceable.
Features : Light Weight
Type : Pressure And Temperature Data Logger
Condition : New
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
high temperature data logger (model htdl-20/30)
high temperature data logger
series htdl-20/30 high temperature data logger
submersible, continuous recording, user replaceable battery
the model htdl-20/30 is a high temperature data logger that can measure temperatures up to 500f (260c) and record up to 32, 700 measurements.
product applications
thermal testing
process monitoring or troubleshooting
modeldescription
htdl-20high temperature data logger with 2" rigid probe.
htdl-30high temperature data logger with 24" flexible probe.
specifications
range:-328 to 500f (-200 to 260c).
memory size:32, 700 readings.
accuracy:0.18f (0.1c) @ 68 to 284f (20 to 140c); 0.54f (0.3c) @ -4 to 67.98f (-20 to 19.99c).
resolution:0.02f (0.01c).
temperature limits:-4 to 284f (-20 to 140c).
sampling method:stop on memory full or continuous recording.
sampling rate:selectable from 1 s. To 24 hrs.
computer requirements:windows xp sp3, windows vista, windows 7 operating systems.
power requirements:3.6 v 1/2 aa er14250sm lithium metal battery, installed functional, user replaceable.
battery life:1 year (approx).
interface:docking station and usb cable.
housing material:316 ss.
weight:4.2 oz (120 g).
agency approvals:ce.
features
submersible and portable
temperature measurement up to 500f
remote probe option for chamber or oven logging
delay startup timer
accessories
model numberdescription
htdl-dsdocking station, software, interface cable.
er1425s-ht3.9 v lithium ion replacement battery.
accuracy : 0.18f (0.1c) @ 68 to 284f (20 to 140c); 0.54f (0.3c) @ -4 to 67.98f (-20 to 19.99c).
certification : yes
voltage : user replaceable.
condition : new
name : series htdl-20/30 high temperature data logger
brand name : dwyer usa
power source : user replaceable.
material : stainless steel, 316 ss.
weight : 4.2 oz (120 g).
usage : process monitoring or troubleshooting
color : black
warranty : 1year
type : high temperature data logger
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T
