We offer the best product range of Ice Cube Relays (Series 784).

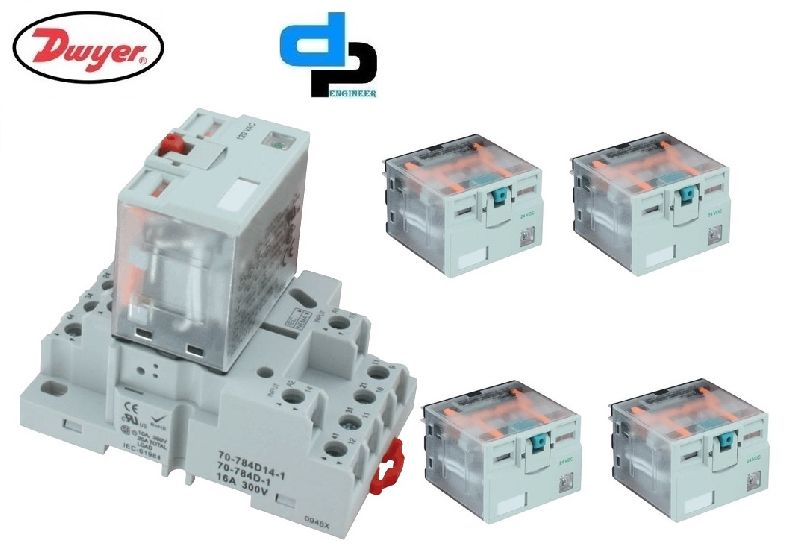

ice cube relays (series 784)

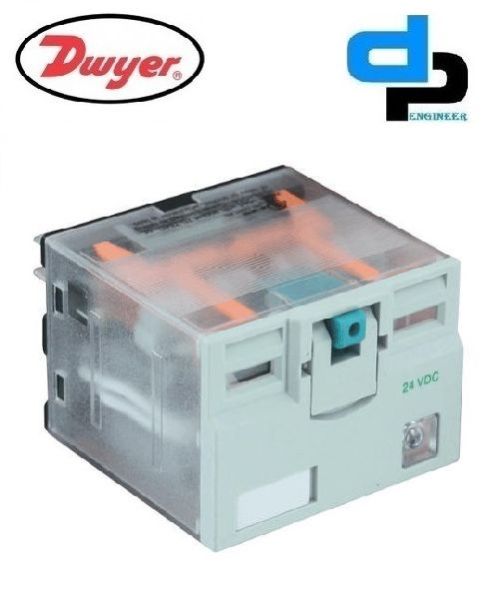

series 784 4pdt ice cube relays
15 amp, 4pdt operation
the series 784 electromechanical ice cube relay is a full-featured 4pdt relay that can be used to handle loads up to 15 amps for ac or dc circuits. Utilizing the same trigger, this relay can be used in underground parking garage applications to signal audible and visual alarms for high levels of carbon monoxide, while opening the dampers and starting the exhaust fans. It features a flag status indicator and a led status lamp to let the user know when the relay is activated. In order to differentiate between ac and dc actuated models, the push-to-test button is color-coded. For testing the operation, a removable lockdown lever holds the test button in place. The clear plastic housing gives a view of the contacts and there is a removable i.d. Tag for labeling the circuit.
product applications
refrigeration compressor systems
hvac motor controls
water/wastewater pump control
modeldescription
784xdxm4l-120a4pdt ice cube relays, 15 amp rating, 120 vac 50/60 hz, coil resistance 2220
784xdxm4l-24a4pdt ice cube relays, 15 amp rating, 24 vac 50/60 hz, coil resistance 84.5
784xdxm4l-24d4pdt ice cube relays, 15 amp rating, 24 vdc 50/60 hz, coil resistance 388
specifications
operating and load voltage range:24 to 120 vac; 24 vdc.
electrical connection:silver alloy plug-in contacts.
switching operation:4pdt.
electrical rating:15 a @ 120 vac 50/60hz; 12 a @ 277 vac 50/60 hz or 28 vdc.
temperature limits:storage: -40 to 185f (-40 to 85c); operation: -40 to 131f (-40 to 55c).
power consumption:1.5 va; 1.5 w.
cycle life:200, 000 cycles (electrical); 10, 000, 000 cycles (mechanical).
housing:plastic polycarbonate.
weight:2.8 oz (80 g).
agency approvals:ce, csa, rohs, cul, ul, cur, ur.
features
clear plastic housing to easily view the contacts
flag and led status indicators for visual confirmation of relay state
socket mounted for quick installation/replacement
accessories
model numberdescription
70-asmm-24protection modules, mov suppressor, 24 vac/vdc
70-asmm-120protection modules, mov suppressor, 120 vac/vdc

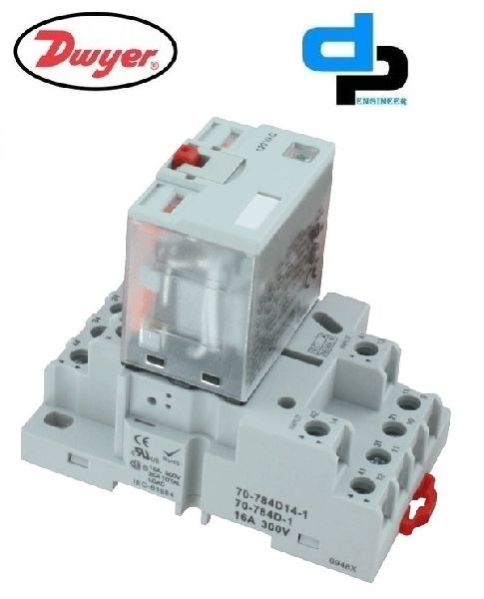

70-784d14-1socket for 784 series relay
70-asmd-250protection modules, protection diode, 6 to 250 vdc
16-750/788cbj-1coil bus jumpers
related products
series 781 spdt ice cube relays
series 781 spdt ice cube relays
series 782 dpdt ice cube relays
series 782 dpdt ice cube relays
series 783 3pdt ice cube relays
shape : square
brand name : dwyer usa
use : refrigeration compressor systems
features : light weight
certification : yes
type : series 784 4pdt ice cube relays
plastic : abs
condition : new
material : abs
warranty : 1 yeras
color : creamy
