Our Products

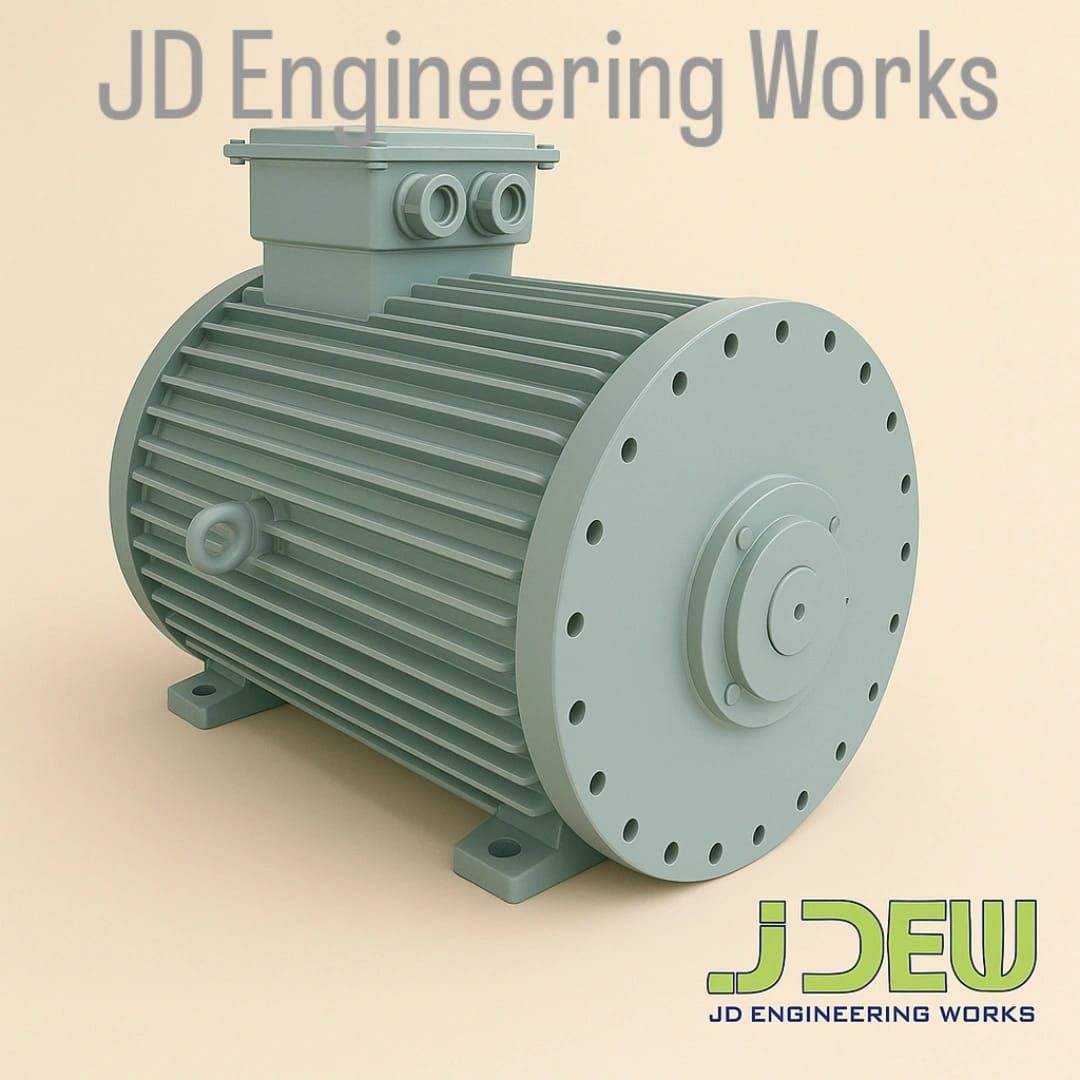

Our product range contains a wide range of Axial Flux Permanent Magnet Alternator, Three Phase Wind Turbine Alternator, Three Phase Permanent Magnet Alternator, Low RPM Permanent Magnet Alternator and Wind Driven Permanent Magnet Alternator
Permanent magnet generator is a device used to convert mechanical energy to electrical with highest efficiency. In conventional alternator the rotor is made of amination and the copper wire is wounded to rotor to generate magnetic field. On rotation the rotor cut the magnetic field, flux is cut and emf is induced to generate alternating current.
Specifications
| Phase | Three Phase |
|---|---|
| Speed | 375, 0-375 |
| Fuel Type | Wind |
| Power | 1 kW |
| Voltage | 415 V or as per request |
| Insulation | H Class |
| Minimum Efficiency | Above 90% |
| Frequency | 50, 50 |
| Rated Torque | 25 NM |
| Working Temperature | -40 to 80 Degree Celsius |
Specifications
| Brand | JDEW |
|---|---|
| Phase | Three Phase |
| Power | 7.5 kW |
| Voltage | 220 V AC or as per request |
| Frequency | 50 Hz |
| Insulation | H Class |
| Working Temperature | -40 to 80 Degree Celsius |
| Minimum Efficiency | Above 90% |
| Rated Torque | 46 nm |
| Speed | 0-1500 rpm |
Permanent magnet generator is a device used to convert mechanical energy to electrical with highest efficiency. In conventional alternator the rotor is made of amination and the copper wire is wounded to rotor to generate magnetic field. On rotation the rotor cut the magnetic field, flux is cut and emf is induced to generate alternating current.
Additional Information:
Payment Terms :
Packaging Details : Wooden Packing
Specifications
| Power | 20KW |
|---|---|
| Voltage | 415VAC Three Phase |
| Usage/Application | Wind Turbine,Hydro Turbine,Coupled with Motor and Flywheel |
| Speed | 120RPM |
| Material | Cast Iron |
| Frequency | 50Hz |
| Product Code | PMG-120G-20 |
| Temperature | -30 degree Celcius to 80 degree Celcuis |
| Mounting | Radial Flux Foot Mounting |
| No. Of Poles | 50 |
| Current | 31 Ampere |
| Winding | 100% Copper |
| Ins Cl | H |
| Duty | S1 |
| I Deal In | New Only |
| Protection Class | IP54 |
| Country of Origin | Made in India |
| Brand Name | J. D. Engineering Works |
Specifications
| Power | 6 kW at 500 RPM |
|---|---|
| Fuel Type | Diesel |
| Material | Copper |
| Frequency | 50 |
| Condition | New |
| I Deal In | New Only |
| Country of Origin | Made in India |
| Insulation Class | H |
| Min Efficiency | 93.00% |
| Axial Thrust Load | 1500 Kgf |
| Protection | IP 54 |
| Rated Voltage | 270/440 Volts at 1/3 Phase |
| Working Temperature | -40 to 80 Degree Celsius |
| Starting Torque | Less than 9 nm |
| Weight | 90 Kg |
Specifications
| Power | 100 Watts |
|---|---|
| Brand | J.D. Engineering Works |
| Voltage | 220 |
| Phase | Single Phase |
| Speed | 1000 RPM |
| Material | Cast Iron |
| Frequency | 50 HZ |
| Temperature | -30 degree Celcius to 80 degree Celcuis |
| Mounting | Radial Flux Foot Mounting |
| No. Of Poles | 6 |
| Rated Output | 0.91 |
| Ins Cl | H class |
| Amps | 0..50 |
Additional Information:
Packaging Details : Wooden Packing
Specifications
| Power | 40KW |
|---|---|
| Brand | J. D. Engineering Works |
| Voltage | 220VAC/415VAC |
| Phase | Both |
| Usage/Application | Wind Turbine, Hydro Turbine, Coupled with Motor and Flywheel |
| Speed | 500 RPM |
| Material | Cast Iron |
| Frequency | 50Hz |
| Product Code | PMG-500G-40 |
| Temperature | -30 degree Celcius to 80 degree Celcuis |
| Mounting | Radial Flux Foot Mounting |
| No. Of Poles | 12 |
| Current | 202Amp/ 61.8Amp |
| Winding | 100% Copper |
| I Deal In | New Only |
| Protection Class | IP54 |
| Country of Origin | Made in India |
| Bearing Brand | SKF |
| Shaft Material | EN8 |
Specifications
| Phase | Single Phase |
|---|---|
| Kva | 2 KW |
| Speed | 500 RPM |
| Fuel Type | Water Flow |
| Power | 2KW |
| Voltage | 230 |
| Application | Industrial, Power, Agriculture |
| Insulation | H Clss |
| Minimum Efficiency | 90.00% |
| Material | Iron |
| Frequency | 50 HZ |
| Condition | New |
Permanent magnet generator is a device used to convert mechanical energy to electrical with highest efficiency. In conventional alternator the rotor is made of amination and the copper wire is wounded to rotor to generate magnetic field. On rotation the rotor cut the magnetic field, flux is cut and emf is induced to generate alternating current.
Additional Information:
Packaging Details : Wooden Packing
Permanent magnet generator is a device used to convert mechanical energy to electrical with highest efficiency. In conventional alternator the rotor is made of amination and the copper wire is wounded to rotor to generate magnetic field. On rotation the rotor cut the magnetic field, flux is cut and emf is induced to generate alternating current.
Additional Information:
Packaging Details : Wooden Packing
