Our Products
Leading Manufacturer, Supplier & Retailer of Gearless Elevator Motor, Three Phase Energy Efficient Motor, JDEW IE4 Premium Efficiency Motor and Wind Turbine Generator.
One of the best manufacturers of Elevator Traction Machines is “J.D. Engineering Works” since 1975 they are in the Engineering Profession. The technical team is always enthusiastic towards their work. They always try to manufacture products that are eco-friendly or consume less input or give more output. J.D. Engineering Works always serve better to their customers.

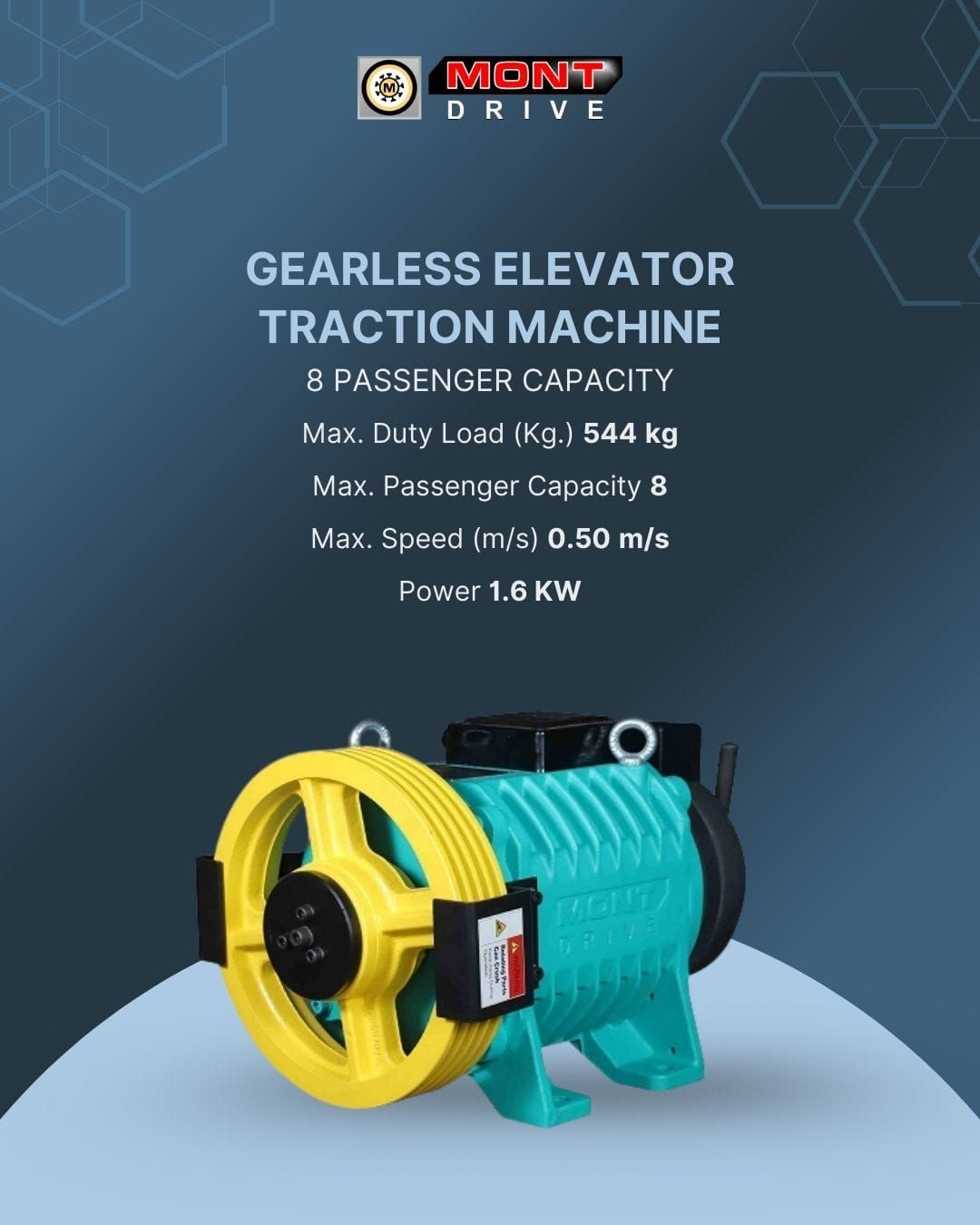

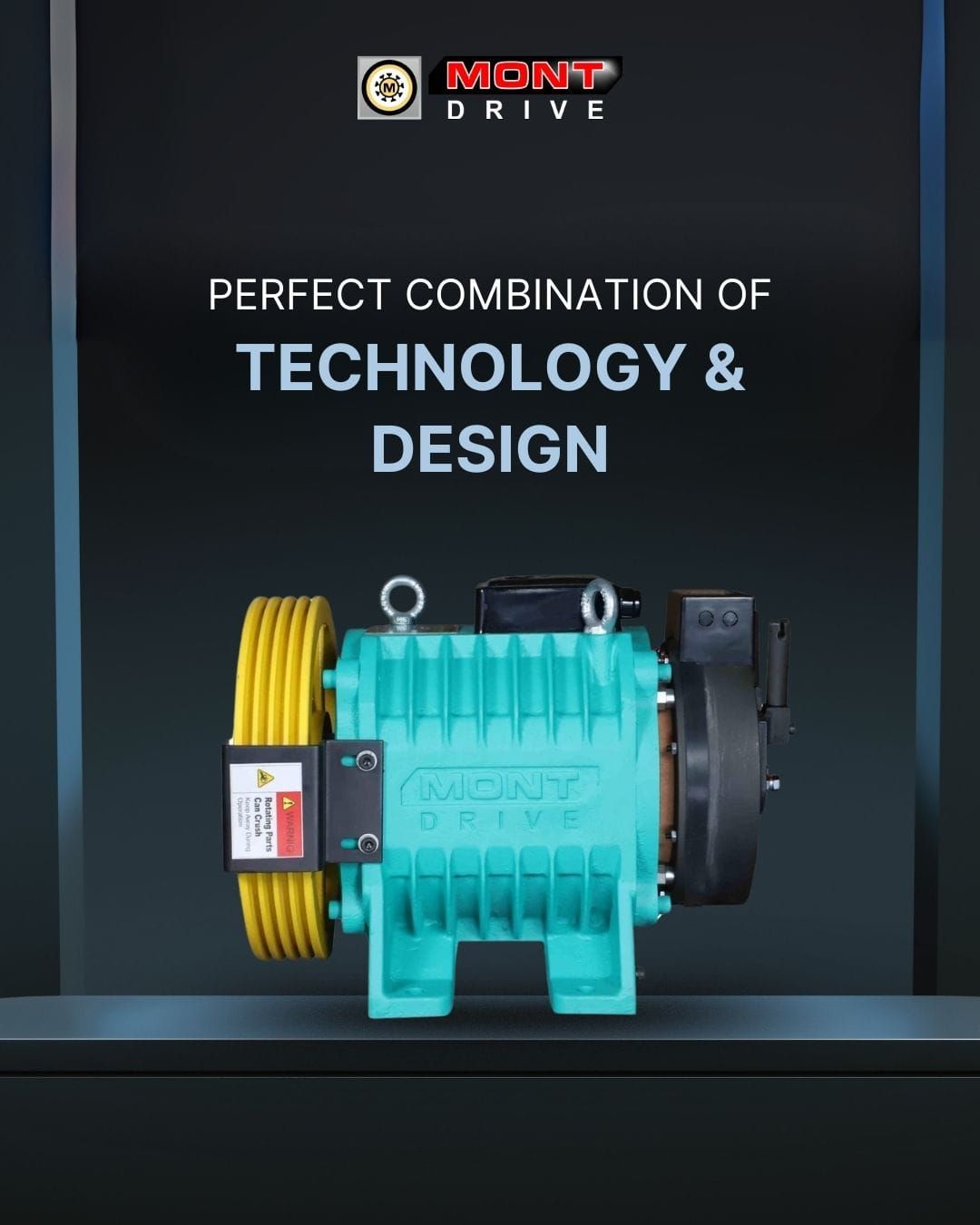

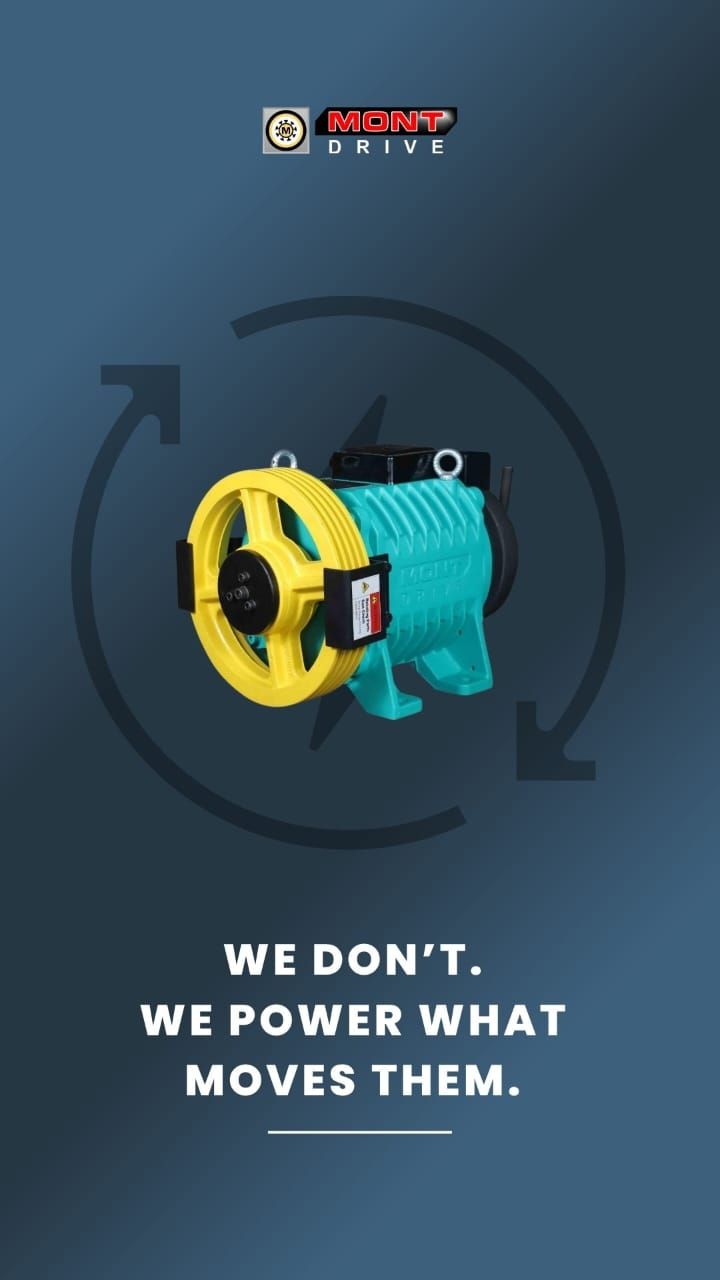

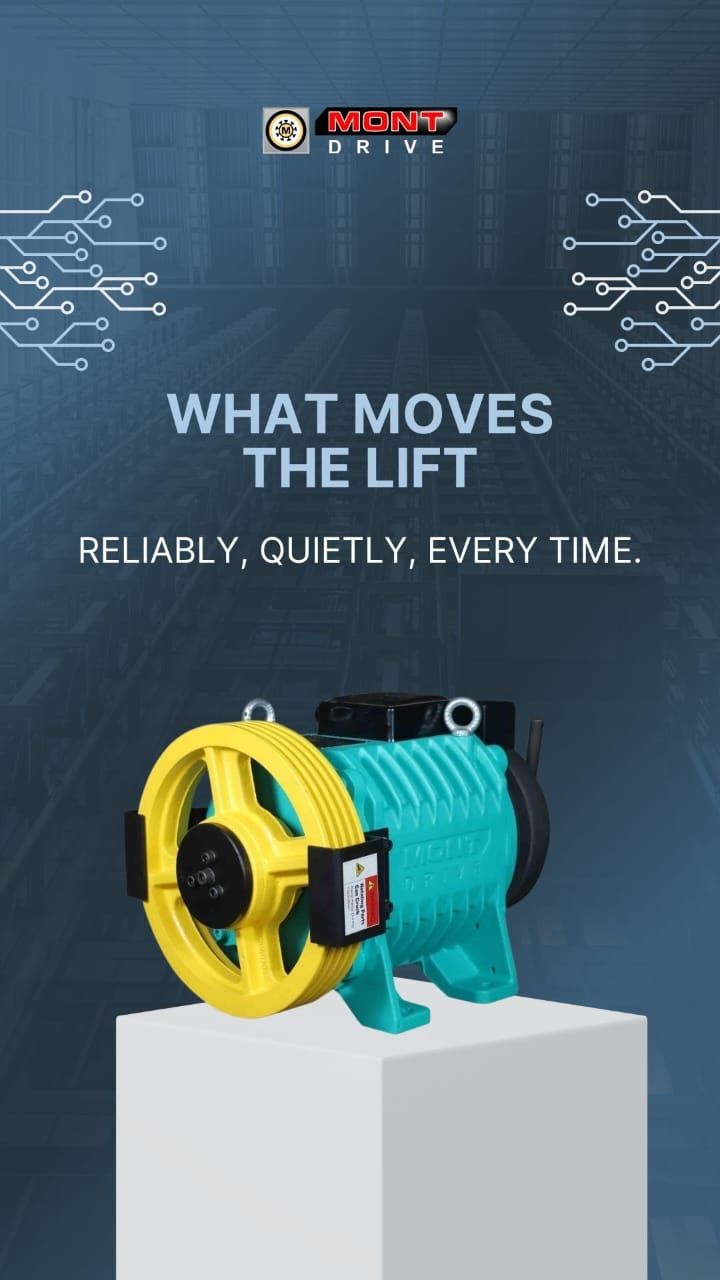

Gearless Elevator Traction Machine
A gearless elevator machine is a head on direct-drive system, there is no gear between the motor and direct sheave (pulley). Manual breaking system is also present in the machine.
Because of Low rpm the life of the bearing is drastically high. JD Engineering Works choose best and quality approved raw material to make their products.
J.d. Engineering Works are manufacturing series of elevator machine:-
1. JDE 24P 6 Series: This is basically a 6 passenger elevator motor2. JDE 24P 8 Series: This is basically an 8 passenger elevator motor.3. JDE 24P 10 Series: This is basically a 10 passenger elevator motor4. JDE 24P 13 Series: This is basically an 13 passenger elevator motor.5. JDE 24P 15 Series: This is basically an 15 passenger elevator motor.
Speciality of JD Engineering Works Elevator Motor:-
Gearless Technology: Gearless Technology has been used in this Motor, which helps to boost the speed and makes the ride experience better.
Additional Information:
Payment Terms :
Packaging Details : PACKING LIST :-
Gearless Machine
Break Releaser
Break Releaser Wire
Encoder Wire
4mm Three-phase Wire
Specifications
| Material | Cast Iron |
|---|---|
| Usage/Application | Lifts or Elevators |
| No. of Poles | 24 |
| Power | 2.8 KW |
| Voltage | 380V Three Phase |
| Capacity | 6 Passengers |
| Features | Easy to install, low weight, Gearless |
| Color | Grey |
| Frequency | 24 HZ |
| Brand | J. D. Engineering Works |
| Current | 8 amp |
| Warranty | 4 years |
| Weight Capacity | 160 Kgs |
| Torque | 220 NM |
| Duty | 408 Kg |
| Ip Degree Of Protection | IP 41 |
| Brake Voltage | 110V DC |
| Motor Type | Elevator motor |
| I Deal In | New Only |
| Country of Origin | Made in India |
| Number of Ropes | 4 |
| Passenger Capacity | 6 Passengers |
| Encoder | Heidenhain (1387) / Innovance |
| Ratio of Roping | 2 |
| Sheave Diameter | 320 mm |
Specifications
| Power | 1 HP |
|---|---|
| Brand | J. D. Engineering Works |
| Speed | 1500RPM & 3000RPM |
| Voltage | 415VAC Three Phase & Customized |
| Mounting Type | Foot Mounting |
| Ambient Temperature | 50 |
| Usage/Application | Cooling Towers, Bag Filters, Paper Machines, Paper Coil Winders, Conveyors, Pumps, Looms, Direct Cur |
| Frequency | 50 HZ |
| IP Rating | IP55 |
| Warranty | 24 Months |
| Bearing Type | Antifriction Ball Bearing |
| Duty | S1 |
| Winding | 100% Copper |
| Temp. Rise | 70 degree Celsius |
| I Deal In | New Only |
| Efficiency | More than 90% |
| Country of Origin | Made in India |

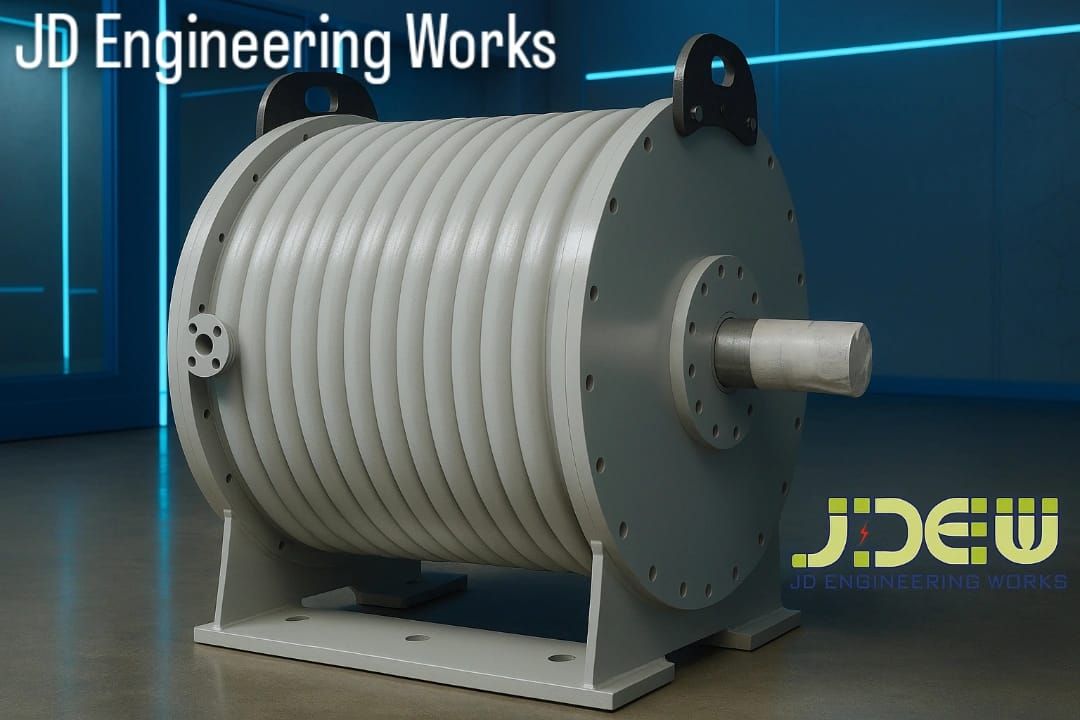

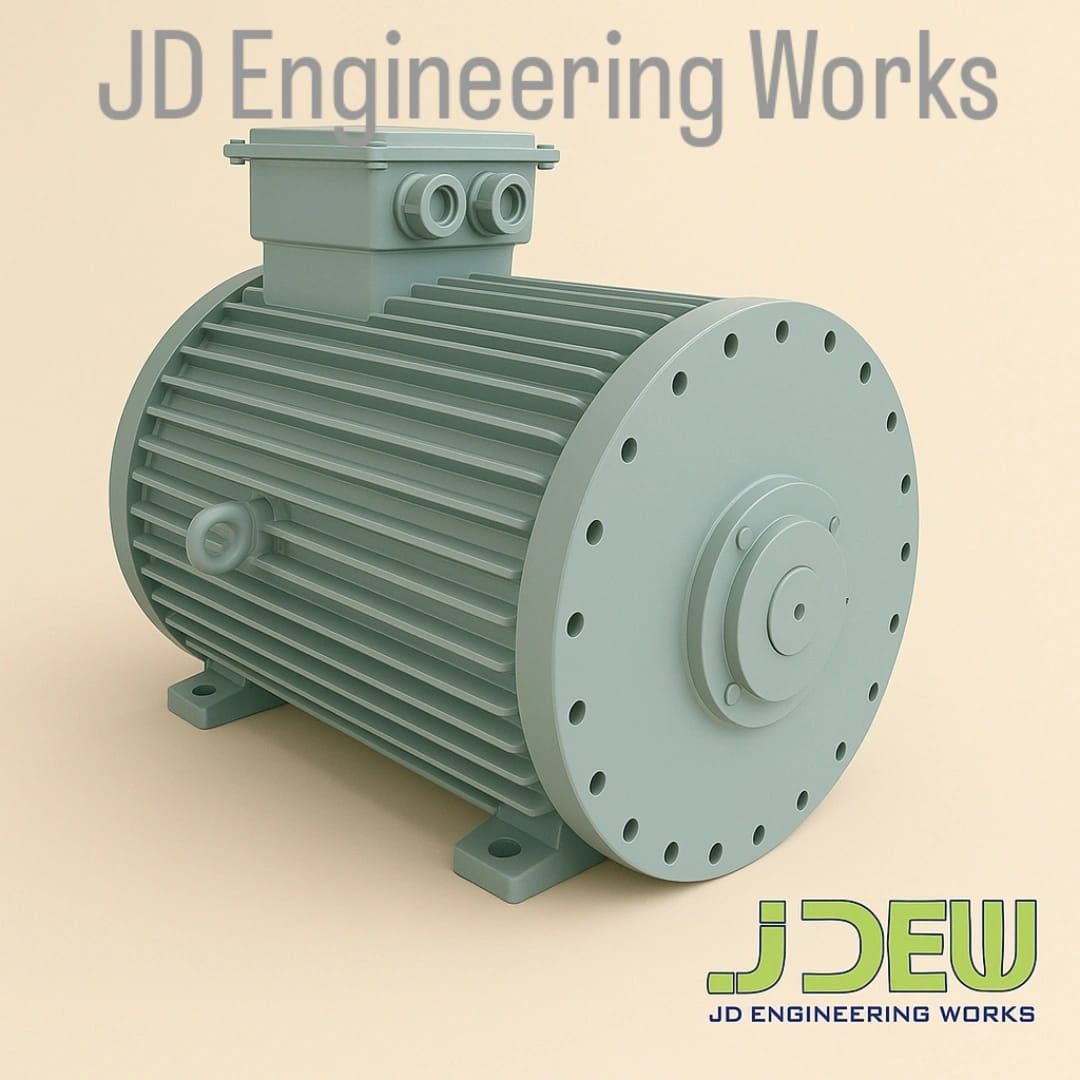

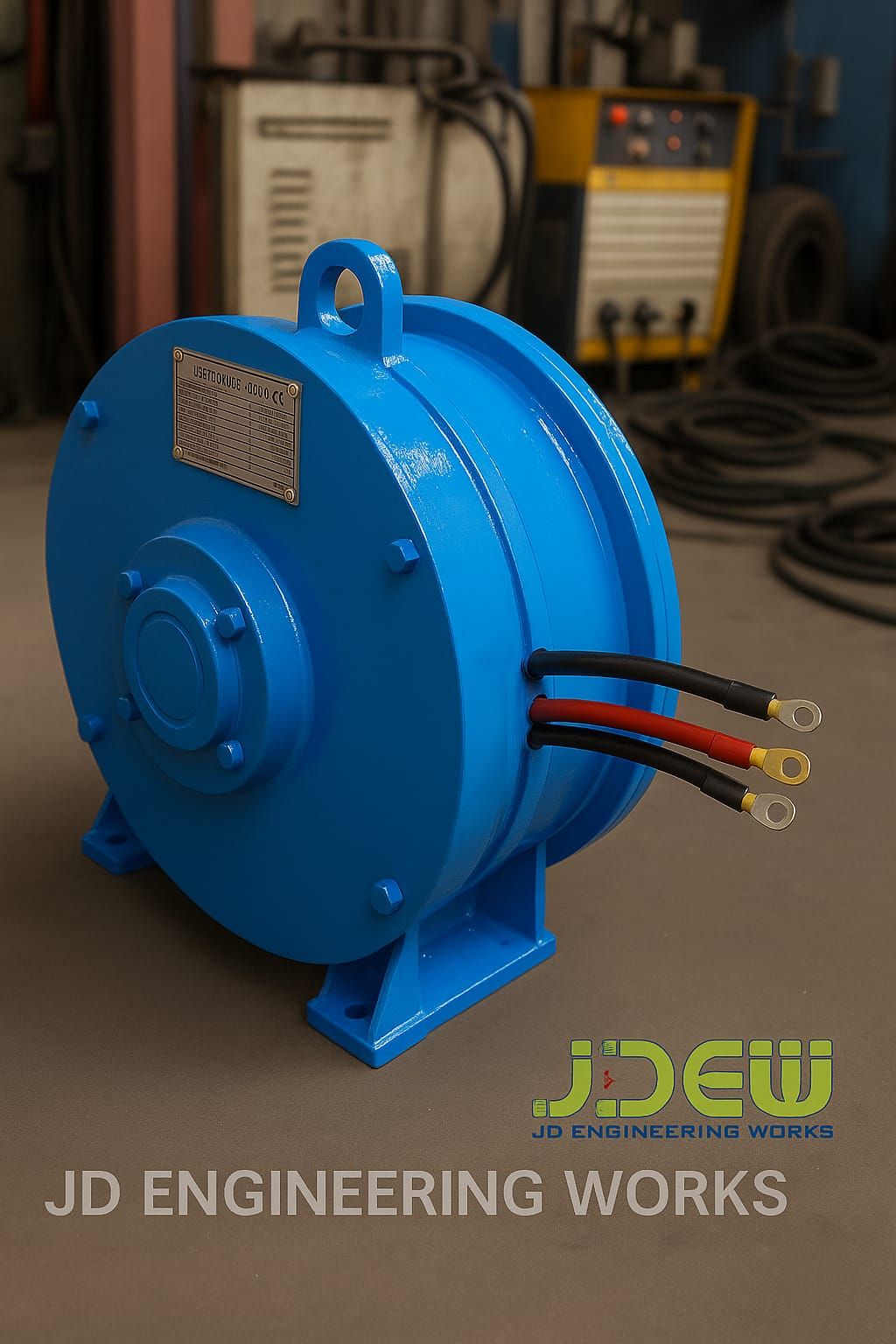

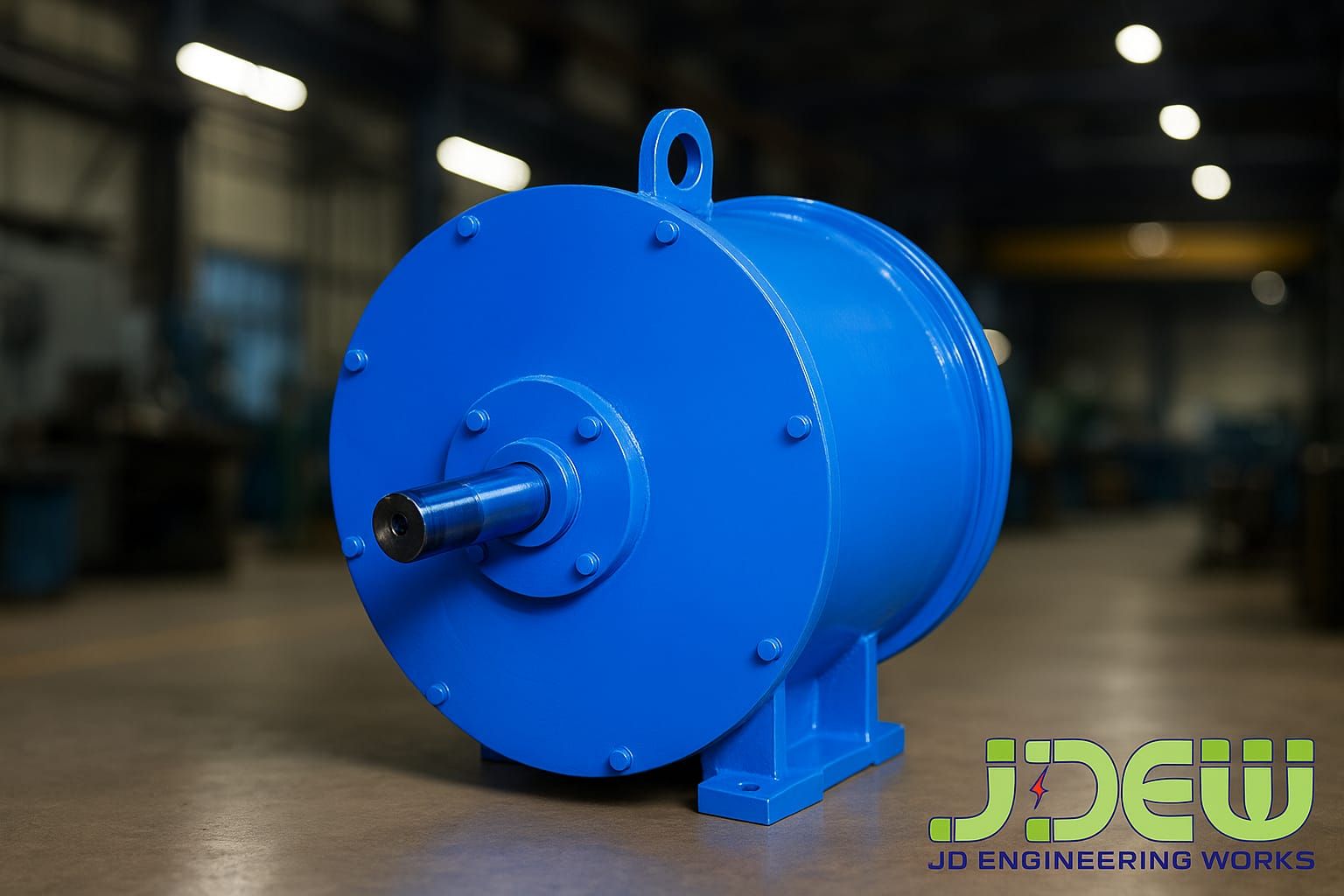

A permanent magnet generator is a device used to convert mechanical energy to electrical with the highest efficiency. In a conventional alternator, the rotor is made of amination and the copper wire is wound to the rotor to generate a magnetic field. On rotation the rotor cuts the magnetic field, flux is cut and emf is induced to generate alternating current.
Additional Information:
Packaging Details : Wooden Packing
Specifications
| Phase | Three Phase |
|---|---|
| Usage/Application | Wind Turbine, Hydro Turbine, Couple with Motor and flywheel |
| Speed | 300 |
| Power | 5 kW |
| Voltage | 415 V AC or As per request |
| I Deal In | New Only |
| Speed (Revolution Per Minute) | 0-300 |
| Mounting | Foot & vertical mounting |
| No. Of Poles | 20 |
| Current | AC Three Phase |
| Winding | 100% Copper |
| Country of Origin | Made in India |
| Frequency | 50 Hz |
| Insulation | H Class |
| Working Temperature | -40 to 80 Degree Celsius |
| Minimum Efficiency | Above 90% |
| Rated Torque | 152 NM |
| Duty | S1 |
| Shaft Material | EN8 |
| Protection | IP54 |
| Bearing Brand | SKF |
| Warranty | 24 Months |
