Our Products

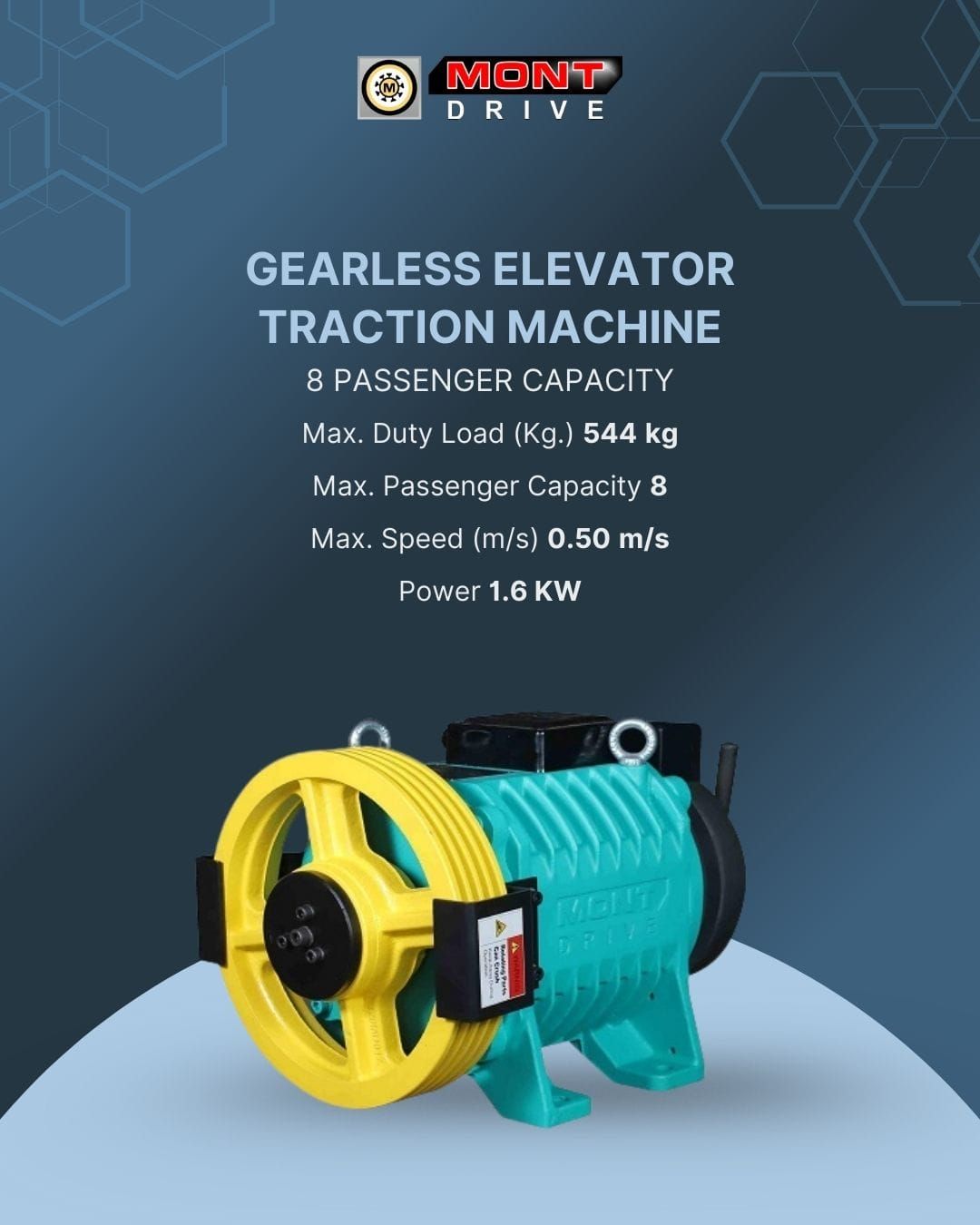

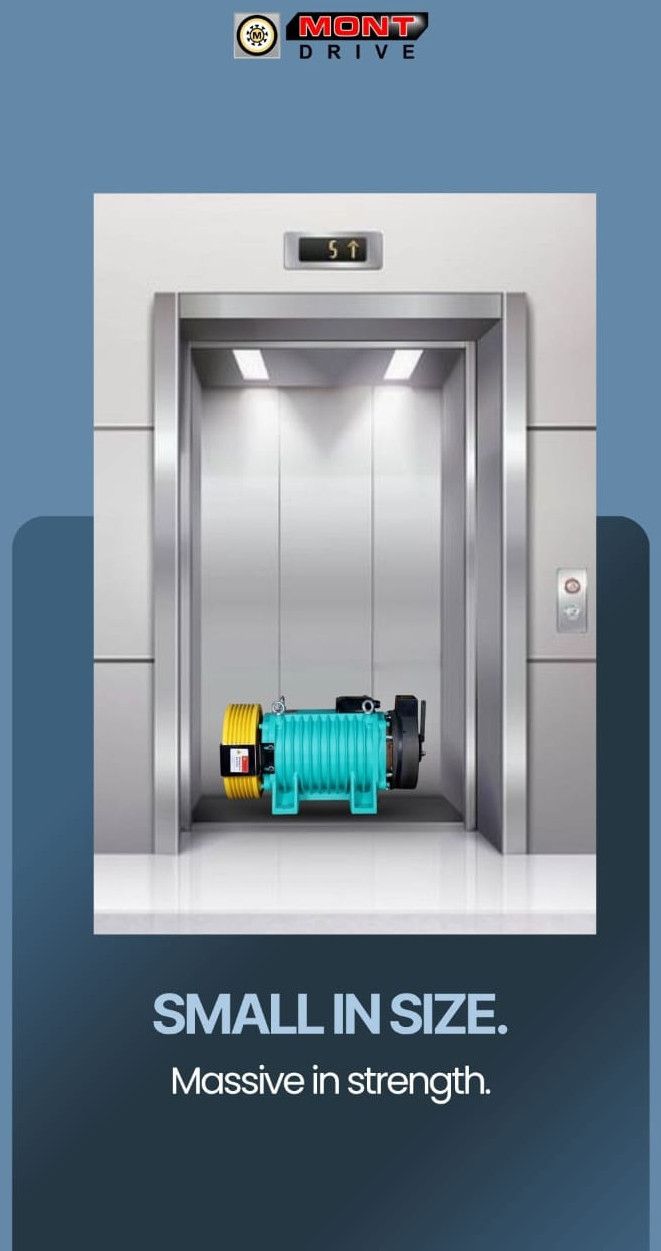

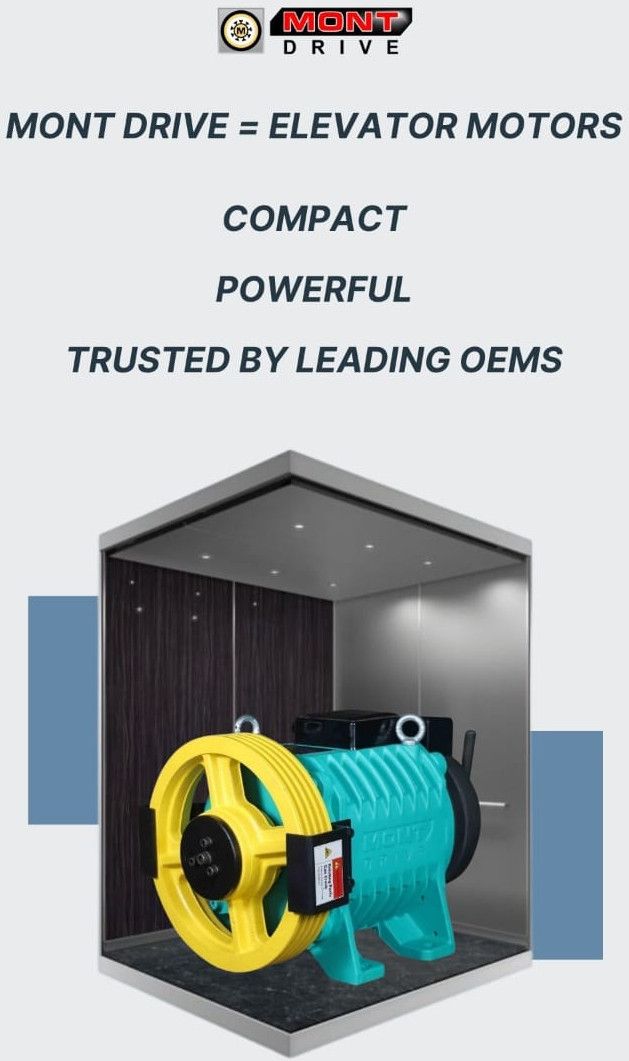

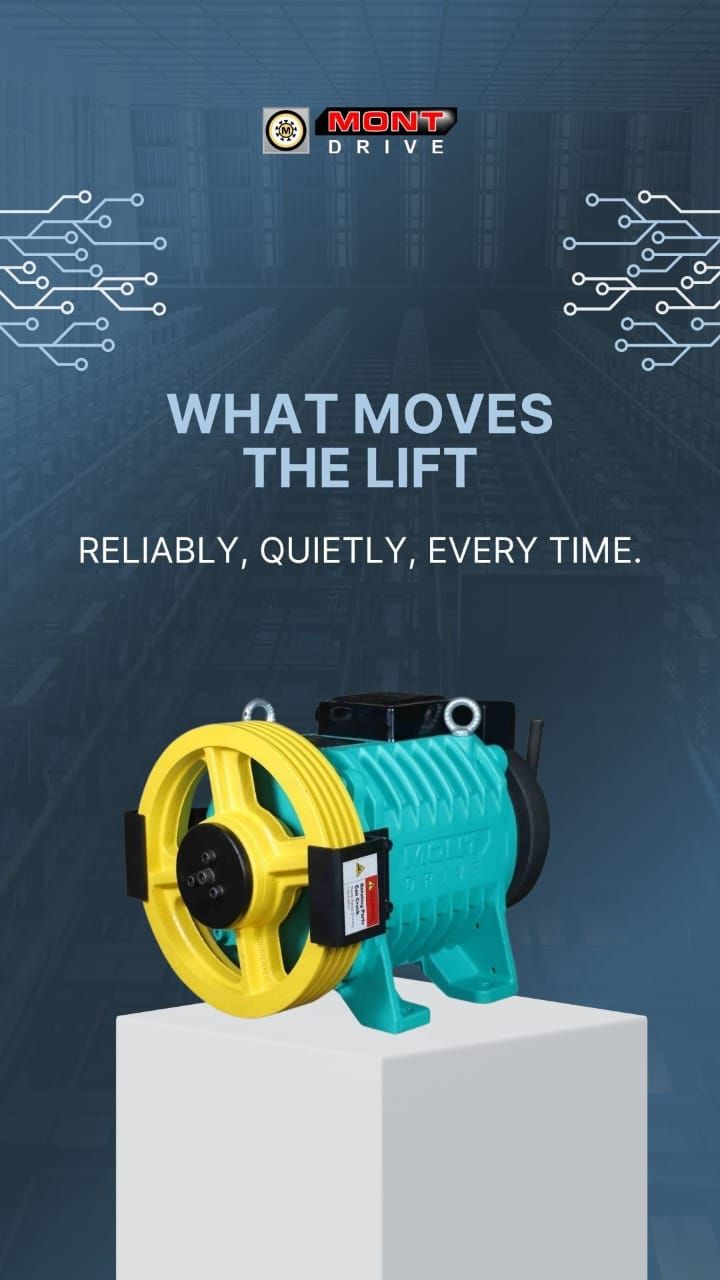

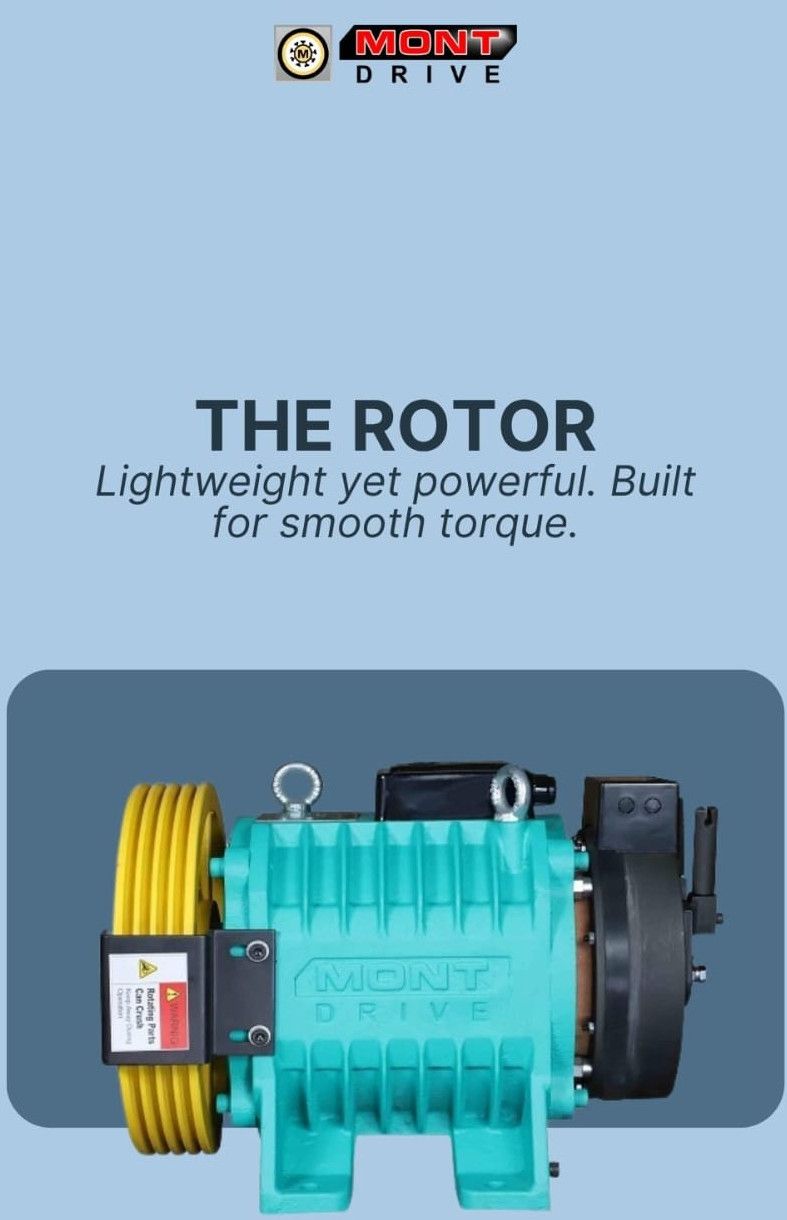

We offer the best product range of Gearless Elevator Traction Machine, 6 Passenger Elevator Motor and 8 Passenger Elevator Motor.
We are a leading manufacturer of Gearless Elevator Traction Machines. Our Manufacturing unit is located in Mayapuri Industrial Area, Phase-2 , New Delhi
Our Product Specifications:-
Brand Name:- MONT DRIVE
Encoder:- HEIDENHAIN ERN 1387
Pole:- 24 Poles
5 years Warranty of the Machine alongwith 3-year warranty of encoder
Additional Information:
Payment Terms : L/C, T/T,
Packaging Details : PACKING LIST :-
Gearless Machine
Break Releaser
Break Releaser Wire
Encoder Wire
4mm Three-phase Wire
Delivery Time : 1 to 5 Days

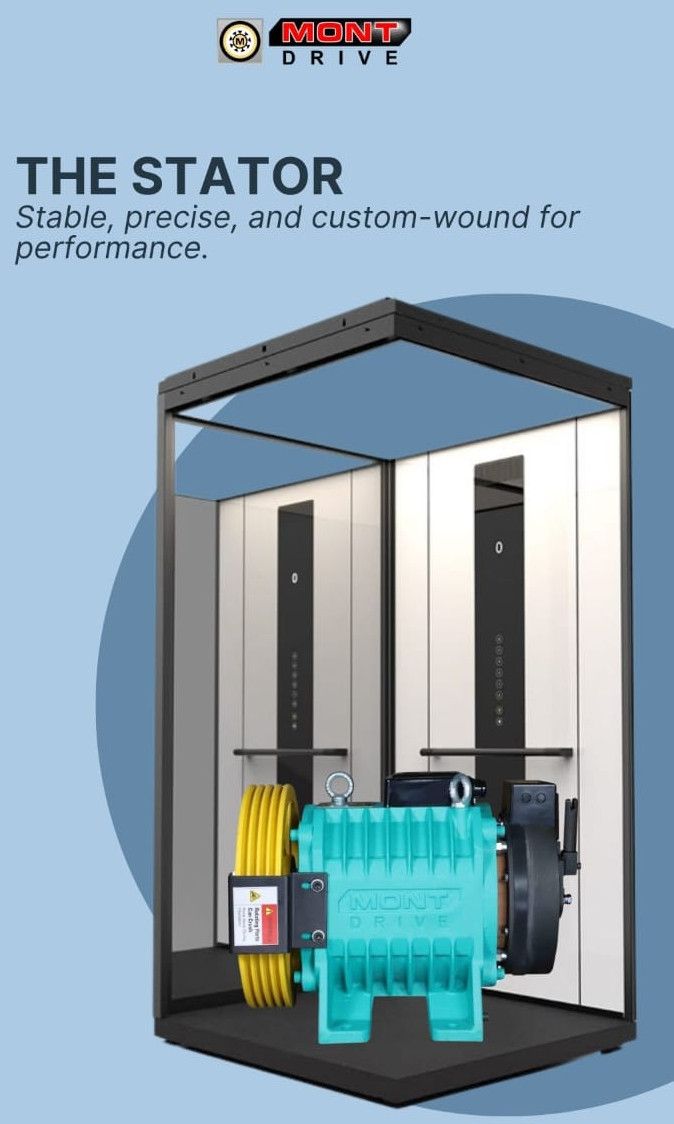

Specifications
| Material | Cast Iron |
|---|---|
| Usage/Application | Lifts/ Elevators |
| Brake Voltage | 110V DC |
| Voltage | 380V Three Phase |
| Brand | Mont Drive |
| Sheave diameter | 320 mm |
| poles | 24 Poles |
| Country of Origin | Made in India |
| Frequency | 24 HZ |
| Features | Easy to install, Low weight, Gearles |
| Color | Grey |
| Warranty | 4 Years |
| Weight | Approx. 165 Kgs |
| Duty Load | 544 kgs. |
| IP Degree of Protection | IP 41 |
| Passenger Capacity | 8 Passengers |
| Encoder | Heidenhain (1387) / Innovance |
| Current | 9 Amp |
| Torque | 250 NM |

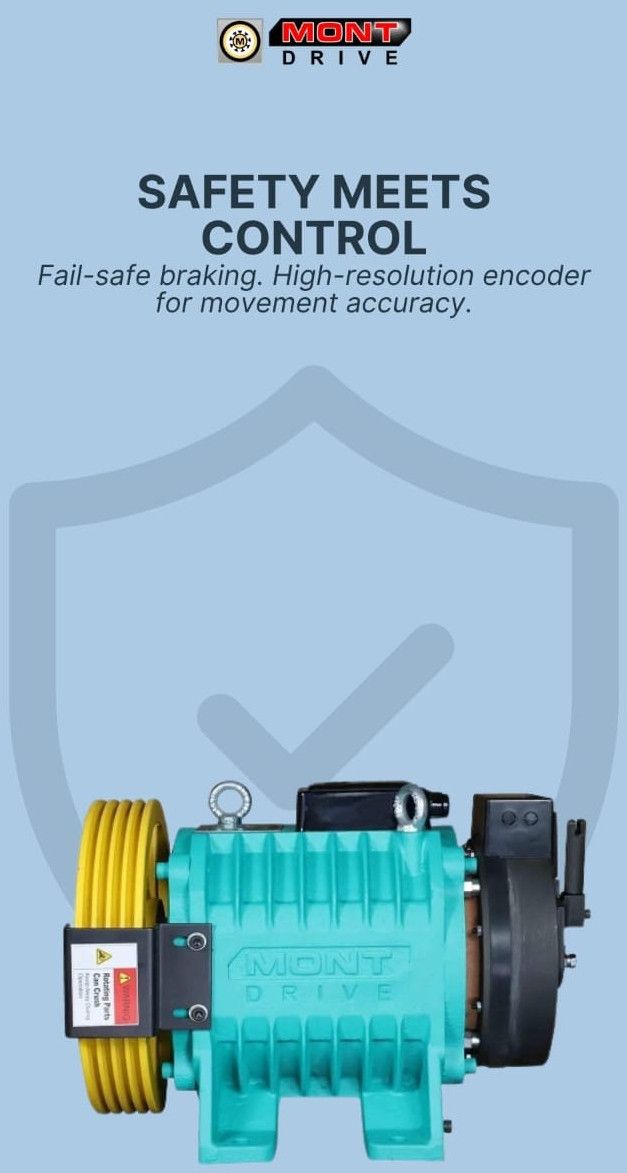

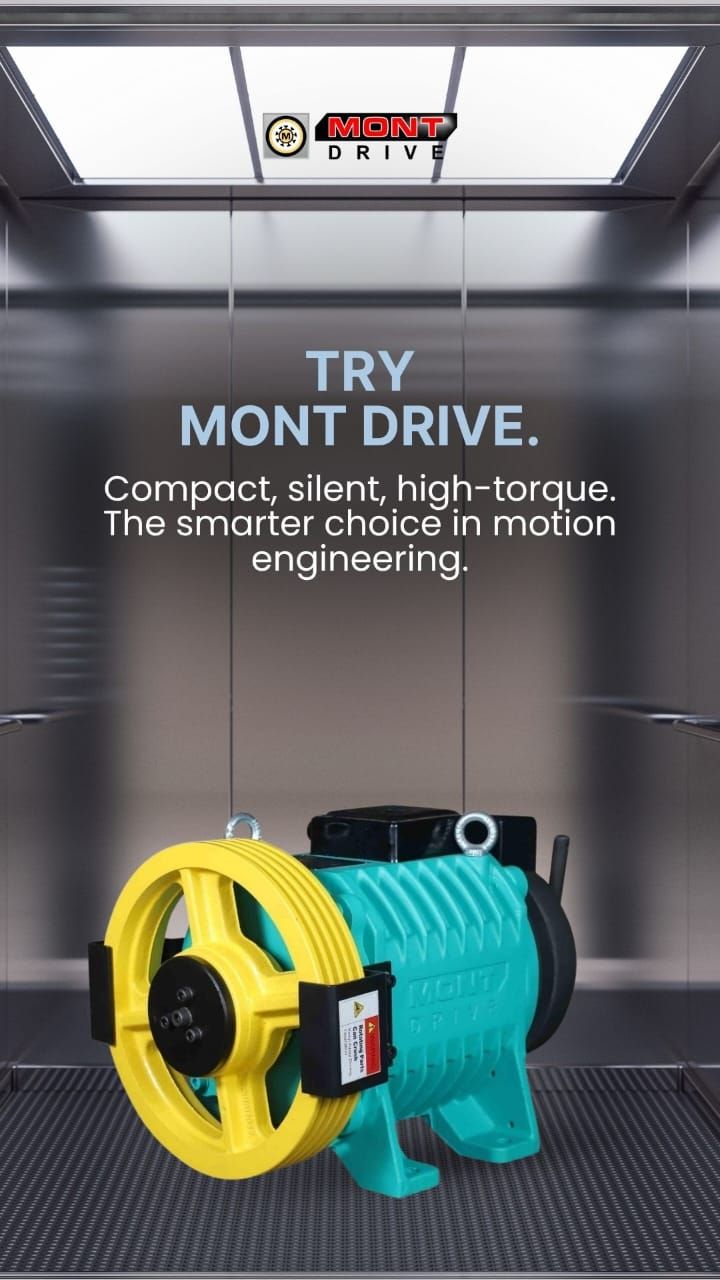

We are a Manufacturer of 6 Passenger Elevator Motor. Our manufacturing unit is located in Mayapuri Industrial Area, Phase-2, New Delhi
Brand Name:- MONT DRIVE
Encoder:- HEIDENHAIN ERN 1387
Control Panel:- MONARCH
Pole:- 24 Poles
Warranty:- 4Years
Additional Information:
Payment Terms : L/C, T/T,
Packaging Details : Wooden Box
Delivery Time : 1 to 5 Days
Specifications
| Material | Cast Iron |
|---|---|
| Power | 3.1 KW |
| Voltage | 380V Three Phase |
| Usage/ Application | Lifts / Elevators |
| Frequency | 24 Hz |
| Brand | Mont Drive |
| Features | Gearless |
| Warranty | 4 Years Warranty |
| Country of Origin | Made in India |
| IP Protection | IP 41 |
| sheave diameter | 320 mm |
| Capacity | 8 Passengers |
| No. of Ropes | 4 |
| Current | 9 Amp |
| Torque | 250 NM |
| Encoder | Heidenhain (1387) / Innovance |
We are a Manufacturer of Passenger Elevator Motor. Our manufacturing unit is located in Mayapuri Industrial Area, Phase-2, New Delhi
Brand Name:- MONT DRIVE
Encoder:- HEIDENHAIN ERN 1387
Control Panel:- MONARCH
Pole:- 24 Poles
Warranty:- 4Years
Additional Information:
Payment Terms : L/C, T/T,
Packaging Details : Wooden Box
Delivery Time : 1 to 5 Days
Specifications
| Usage/Application | Lifts or Elevators |
|---|---|
| Power | 3.1 KW |
| Voltage | 380V Three Phase |
| Brand | Mont Drive |
| Country of Origin | Made in India |
| Encoder | Heidenhain (1387) / Innovance |
| sheave diameter | 320 mm |
| Capacity | 8 Passengers |
| IP Protection | IP 41 |
| Torque | 250 NM |
| Current | 9 Amp |
| No. of Poles | 24 |
| Frequency | 24 Hz |
