Our Products

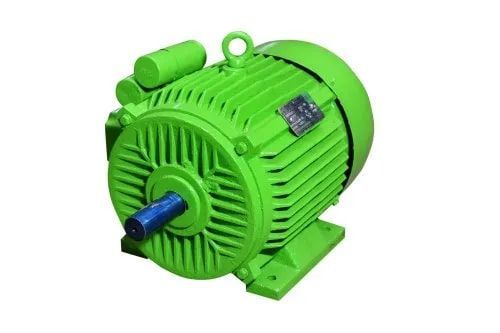

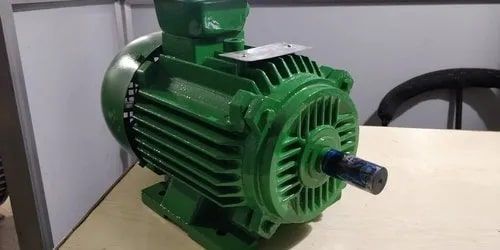

Our offered Product range includes JDEW IE4 Premium Efficiency Motor and Super Premium Efficiency Motor.
The Permanent Magnet Synchronous Motor (PMSM) is also called AC synchronous motor and IE4 or Super High Efficient Motor where the field is excited by permanent magnets that generate sinusoidal back EMF. This unique magnetic motor harnesses magnetism to create continual motion. So what this suggests is that after the motor starts it'll pass by itself and while the magnets maintain their polarity, the motor will never stop running.
The Permanent Magnet Synchronous Motor (PMSM) is also called AC synchronous motor and IE4 or Super High Efficient Motor where the field is excited by permanent magnets that generate sinusoidal back EMF. This unique magnetic motor harnesses magnetism to create continual motion. So what this suggests is that after the motor starts it'll pass by itself and while the magnets maintain their polarity, the motor will never stop running.
Specifications
| Power | 2.5KW |
|---|---|
| Brand | J.D ENGINEERING WORKS |
| Phase | 3 PHASE |
| Speed | 30-3000 RPM |
| Voltage | 415 VOLT |
| Mounting Type | FLANGE |
| Ambient Temperature | 50 DEG |
| Usage/Application | machine tools, actuators, and it is being considered in high-power applications such as industrial d |
| Capacity | 2.5 KW |
| Number Of Poles | 2-4 POLE |
| Frequency | 50HZ |
| IP Rating | 55 |
| Color | AS PER CUSTOMER REQUIREMENT |
| Insulation Class | F CLASS |
| Shape | CYLINDRICAL |
| Size | 100 MM |
| Warranty | 2 YEARS |
| Bearing Type | ANTI FRICTION BALL BEARING |
| Customized | YES |
| Duty | S1 |
| Ip Degree Of Protection | IP55 |
| Winding | DELTA |
| Motor Type | PMSM |
| Polarity | 2-4 POLE |
| Temp. Rise | 70 DEG |
| I Deal In | New Only |
| Mounting | FLANGE |
