Our Product / Services
We are leaders in the market for providing best range of Plus Elevated Maze, Flash Point Apparatus, FRIABILITY SINGLE DRUM, Rota Rod Apparatus and Continuous Avoidance Response Test Apparatus

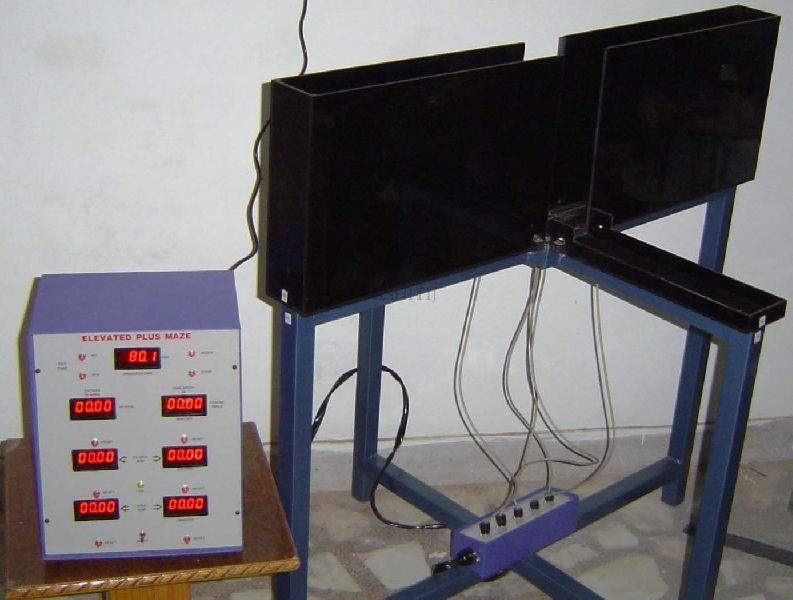

Plus Elevated Maze is the most simple apparatus to study anxiolytic response of almost all types ofantianxiety agents. It consists of two open arms (16 x 5 cms) and two enclosed arms (16x5x12 cms) with an open roof and is elevated to a height of 25 cms.
The apparatus consists of test cup, lid with handle, removable cup cover with spring operated rotating shutter having pilot jet and flexible shaft. Electrically heated with energy regulator control suitable to operate on 1220 volts A.C. supplied with thermometer. b) do- but with VOLTAGE VARRIER c)do- but SEMI AUTOMATIC MODEL with DIGITAL TEMP. CONTROLLER AND AUTOMATIC DIPPING CYCLE SYSTEM
OPTIONAL ACCESSORIES: a) Motor variable speed stirrer can be fitted with flexible shaft at an extra charge.
Used to determine the durability and abrasivness of tablets. A transparent perpex drum (made of imported perspex sheet 6.4 mm thick) 300 mm dia x 35 mm. deep and -white cover disc and nut, also a shaped radial fixed blade which carries the tablets along with it up to the central height and lets them off while the drum is rotating. Thus the tablets rub against each other without any hard impact. The drum rotates at a fixed speed of 30 R.P.M. by a geared motor and the rotation period is controlled by a timer (imported time switch duration I to 15 minutes) per determined end preset. The motor unit is housed in a shaped steel cabinet with shaft extended on one side upon which the drum rotates. Switches with neon indicators and time switch are fitted on a panel and provided work on 220 volts 50 C/s A.C.Digital models are also available.
(Latest with digital counter) - For determining neuro-pixicity, muscle tone, balance and motor co-ordination in rats and mice. Consisting of two or three or four compartments of 75mm width each with a rotating rod of 25mm diameter having speeds of 5, 10, 15, 20 and 25 r.p.m. with time interval counters in each compartments. a) Two compartment. b) Three compartment. c) Four compartment.

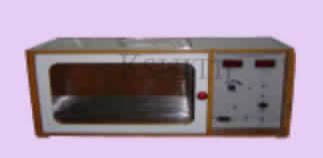

Continuous Avoidance Response Test Apparatus is meant for evaluation of operent behavior. Provides a convenient test procedure in which the test animal has to anticipate time duration to press a lever to avoid shock. A compact solid state apparatus, size approx. 45x30x30cms. with wire grid, house light, avoidance key, variable intensity stimulator with variable delay timer and counters to record stimulus avoided and stimulus delivered.
Specially designed to study, the packing down of powder beds of different pharmaceuticals and chemicals in the process of tablet manufacturing, capsule filling & cosmetics. Installed with an automatic device for preset of strokes. Gear driven Noiseless and strudy motor, also provided with an electronic timer. Elegantly designed for smooth operation electrically operated on 230v AC, 50 Hz.
|
This unit is based on Desaga German pattern having movable applicator with in built thickness arrangement between 0 to 2mm have the following components :-
a) Spreader (Applicator) made of electroplated brass.
b) Perspex Base size 114x23cm to support 5 glass plates of size 20x20cm and 2 plates of 20x5cm.
c) Plate Rack Aluminium for ten 20x20 cm plates.
d) Spotting Termplate made of perspex.
e) Developing tank with lid.
f) T.L.C. plates set of five 20x20cm & two 20 x 5 cm orset of ten 20x10 cm. and two 20 x 5 cm.
g) Micro-pipette.
h) Scriber for making lines made of stainless steel.
i) Glass sprayer with rubber bellow capacity 100 ml.
j) Instruction manual.
b) It is same as above but the applicator is made of anodised alluminium.
ACCESSORIES
for T.L.C. Apparatus are also available (ask for rates)
The test equipment work on up and down movement of tablet in medium of water kept at 370C. Built in a steel cabinet of 17"x12"x9" high which housed a geared motor for the vertical shaft drive the shaft moves up and down by 50 to 60 mm at speed of 28-32 strokes per minute. On the upper end of the shaft fitted a horizontal strip with clamp on either side. These clamps hold glass vessels open at both ends and with stainless steel wire gauge with rubber rings at the lower end, which dips in water. Two independently thermostatically controlled hot plate rating 65 watt are fixed on the top of the cabinet upon which beakers of 1000 ml size are placed filled with water. Temperature is maintained at 37C with and accuracy of 10C. Independent switches with neon indicators for motor hot plates are fitted on a panel. Mains fuse with two meters mains cord and plug provided. Work on 220 volts A.C. mains.
Two cast metal uprights, height 18 cm, fitted with two nickel plated rods supporting expansion bar of length 38 cm. Expansion bar is fixed to one upright and moves a pointer on the other, when heated. With scale reading0 to 90, supplied with one each aluminium, brass and iron expansion bars.
Used to measure the peripheral field of vision. The apparatus comprises of a calibrated arc., revolving chart holder. The object carrier which moves over the arc, contains five colours and five apertures of different diameter, calibrated scale. At the back of the arc arrangement is provided for fixing of chart which has concentric circles corresponding to the degrees of arc. Adjustable chin rest. All fitted over a sturdy base with receptacle for keeping charts. For table top use. Complete with 100 charts.
New improved model built in solid state buzzer and stimulator to provide electrical shocks of 400V in pulsating rates 0.2 mA a frequency of 5 per sec. for a duration controlled manually or by built in 30 second timer. Output available for recording on kymograph or polygraph complete to work on 220V A.C.
This is a compact instrument designed for accurate determinations of melting points of solid samples. The unit consists of a built-in magnetic stirrer, an electronic controller for adjusting the rate of heating of silicon oil bath, an ON/OFF switch, a pilot lamp, magnifier, a glare-free background illuminated, a HIGH/LOW range selector switch and a digital temperature indicator with PT 100 sensor.
The range of the apparatus is from about 2
0C, above room temperature upto 300C, with readability 1C. The apparatus is supplied with 175ml, silicon oil for use upto 300C and a box of capillaries. It can also be used for determinations of boiling points, flow points, and molecular weight by rasts method with special tubes not supplied with the instrument.
Ithas been specially designed for use in water treatment plants to correctly estimate the dosing of alum and such other cogulants for treatment of water. It consist of electronically controlled variable speed electronic motor with timing belt driven mechanism. Speed controller is provided to control the speed of four/six stirrers from 5 to 150 RPM. Stainless Steel/ Brass paddles are provided.
Horizontal type Micrometer screw form. Two cast end pieces joined by two metal rods having support for brass tube nickel plated 50 cm long, 1 cm dia. With riffled inlet and outlet for connection to a steam supply and tubulure for thermometer. One end-piece fitted with sphereometer reading to 0.01 mm and other with contact screw. The end pieces are provided with terminals for connecting bell or galvanometer for indicating exact point of contact of the screw. Supplied with three metal rods one each of copper, brass and iron.
Nickel-plated finish. Cutting tube mounted with safety under-flange in shaped handle ensuring that operator cannot be injured by a dislodged tube. With iron rod for cleaning borers.
| Set of : 6 12 18 |
| Size : 4-10mm 4-18mm 4-27mm |
Showing that horizontal and vertical motions are independent of each other. Consists of a wooden block 190 x 58 x 30 mm approx. with a pivoted L-section spring loaded metal launching bar with a trigger catch. On releasing the catch, one steel ball drops vertically while the other is projected horizontally, both hitting the floor at the same time. Supplied with 2 steel balls with storage recess in the block.
To show the growth of plants and the effects of environment on the rate of growth. It comprises of a light weight metal pointer, counter balanced by mass hanger and masses, with a large easily readable scale. Supplied complete with mass hanger and stands.
A complete unit for comprising rates of absorption or evolution of gases by small organisms, during respiration. The apparatus consists of two stoppered boiling tubes connected by three way taps to either limb of a graduated manometer. One tube holds the organisms and has a syringe for altering the level of liquid in the manometer during setting up. The other tube acts as a control thermo-barometer. CO2 given off by the respiring organism is absorbed by potassium bydroxide in the experimental chamber resulting in a change in the level of liquid in the manometer tube. Complete with wire baskets for supporting organisms.
|
For demonstrating the conversion of electric energy into mechanical energy. Star-shaped copper disc 9 cm. Diameter rotatable vertically on pair of adjustable centers and dipping into mercury trough between the vertical limbs of a small horseshoe magnet on a wood base 15x 10 cm. Disc adjustable vertically on metal pillar which is connected to one of two terminals mounted on base. The other terminal is connected to the mercury trough. The apparatus will operates on 4 volts at which voltage it takes 1.8 amps., without battery.
Solvent reservoirs for use with chromatography columns Two sizes available : 50ml for small columns 5000ml for larger columns. Fitted with chemically resistant stopcocks for fine flow control and grease free performance
The plant consists of: One cation Exchanger column containing cation Exchanger Resin. One anion exchanger column containing anion exchanger Resin. Plant is mounted on M.S. stand with assembly of valves and tubing. One conductivity meter with cell to monitor the ionised solids of purified water and thus control the functions of demineralisation. The meter is direct reading having reading heavy range 0.40 microns/cm.
a) Cap. or flow rate 30 to 50 It/hr.
b) Cap. or flow rate 75 to 100 It/hr.
|
(Kshitij Innovations)
2320, Kacha Bazar, Cantt 133 001, Indi, Ambala Cantt, Haryana
