Our Products

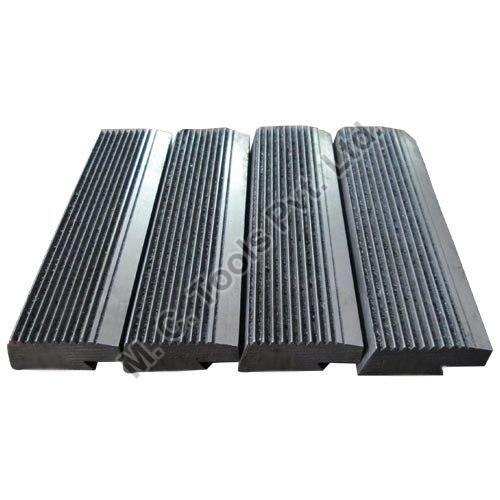

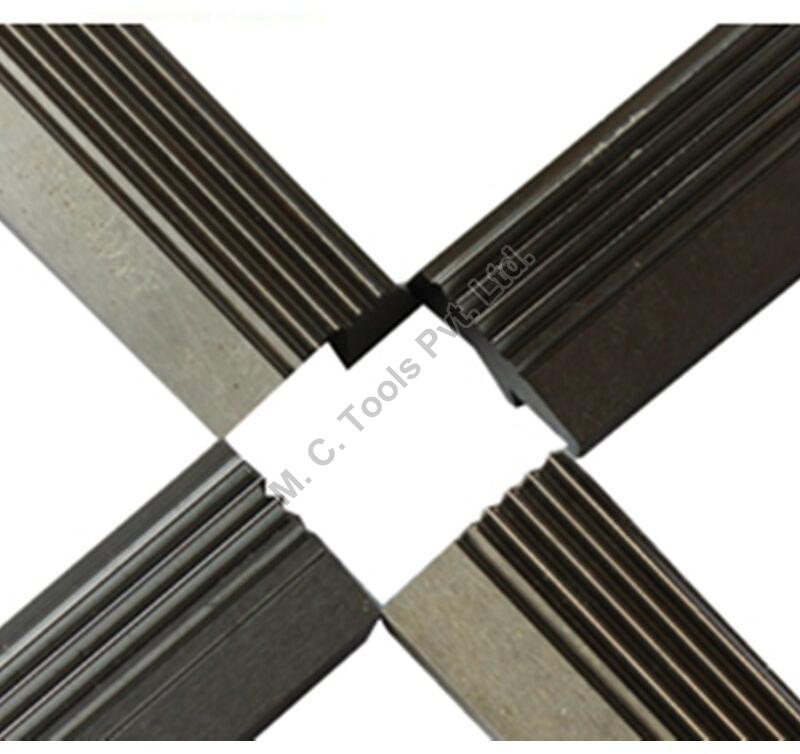

Our Chasers are manufactured as per international standards and cater to the requirements of tube and pipe mill industries. These chasers have accurate thread profile and correct parameters with respect to fitting and setting. Raw material used for these chasers is High Speed Steel (imported), generally M2 grade.
Sizes available with us:
Our Saw Blades are manufactured from rolled steel sheet in Chrome-Vanadium Steel (80CrV2) or 75Cr1. These are called Friction Saws thanks to the friction generated between the teeth of the blade and the working metal. We offer a comprehensive range of dimensions: Diameter up to 1400 mm and thickness up to 10 mm. The blades are provided with uniform hardness.
Blades offered by us :
Commonly used grades for Fin Discs are: D2, D3 or EN31. These materials are purposely used because Fins are always under constant wear and high stress due to the strip ends touching them on the periphery before butt welding. Thus, these are provided in hardened and ground state with a uniform hardness throughout. Also, special attention is paid during their heat treatment so that hardened fins are not bent and out of shape.
Popular For
Our Shear Blades are crafted from the best quality alloy steels using close tolerance quality standards. Our blades increase tons per edge sheared while reducing downtime due to defects in blade. This leads to not only productive but also profitable production shearing operation. These are manufactured up to a length of 3500 mm with D2, D3 as raw materials. Used in a myriad of industries, these blades have: required hardness, high wear resistance and long cutting life.
Imported from Japan, these blades are used for cutting steel pipe at a high speed without burr at the ends. HSS Saws are manufactured using High-Speed Steel with a high Molybdenum and Tungsten content improving wear resistance and mechanical endurance. Sizes available are up to a diameter of 500 mm with varied coatings.
Rubber Spacers Manufactured at M.C. Tools have high durability.Rubber spacers are available in various shore hardness and colors. Material used for Rubber Spacers are Nitrile(Perbunan), Neoprene, Polyurethane.
M.C. Tools has a rich background in manufacturing of Tube and Section Forming Rolls for ERW Tubes and SS Tubes. A dedicated team of experienced personnel to design these rolls, CNC machines for profiling and CNC wire-cut templates make these rolls highly precise and conforming to the standard required. The entire range of these rolls for the production of tubes with diameters ranges from 1/4" to 20” diameter for round pipes and up to 300 x 300 mm and 400 x 200 mm for square and rectangular pipes. Mostly, these are manufactured using material D2, D3 or EN31. The Welding Rolls are crafted using Hot Die Steel (H13) due to high working temperature. Our rolls have already been utilized by companies manufacturing a plethora of shapes of pipes such as:
Shafts always support the revolving section of a mill. Since these shafts are subjected to bending, it should have high level of toughness, maximum strength and low stress concentration. To avoid breaking, Case Hardening of these shafts is practiced to maintain a soft core and a hard surface. Grades used are: EN9, EN19, EN24, EN353 and AISI 8620. Provided in various sizes, these shafts are available as:
Hard Chrome Plated
Gears are known to run smoothly and quietly, as long as they are well designed and properly heat treated. M.C. Tools is well equipped to meet all types of needs including Helical gears, Worm Gears, Spur Gears and Bevel Gears. Commonly used grades are: EN19, EN24, AISI 8620 and EN353. Using our extensive experience, range and manufacturing capabilities, gears can be manufactured in both standard and custom sizes.
Spacers manufactured at M.C. Tools have high durability and made from hardened tool steel. We have a variety of spacers which include: Steel Spacer, Rubber Spacers, Rubber Bonded Steel Spacers and Plastic Shims. Rubber Spacers are available in various shore hardness and colors.
Attributes
Being one of the major Manufacturers, Exporters, and Suppliers based in India, the company offers superior grade Separator Disc. These Separator Discs are widely used in steel tube industry. One of the biggest challenges for coil processing lines is tool breakage and wear, M. C. Tools overcomes this with its durable, break and wear resistant Separator Discs. Ensure profitability with dependable tooling; therefore reducing downtime, increasing production and with significant cost savings realized in the manufacturing process.
Specialty Of Our Separator Disc
M. C. Tools Pvt. Ltd. is a reliable source for obtaining world class Tube Mill Rolls. Designed to perfection, our Tube Mill Rolls are widely used for tube, pipe, and roll forming and even for the most complicated shapes or profiles. Manufactured with the help of the finest grade raw material, the Tube Mill Rolls available with us are free from corrosion and are durable at the same time. The clients can avail the Tube Mill Rolls in varied sizes and specifications, at pocket friendly prices from us.
Shapes Available
Imported from Canada, Impeder Rods available with us are majorly used when a strip converted to a tubular shape is passed through a high frequency induction coil. The diameter of these rods varies from 2 mm to 42 mm. Also, these rods are Fluted and have Holes to enhance maximum heat dissipation when under operation.
Our Impeder rods have:
