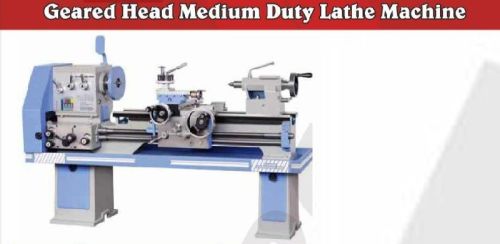

Geared Head Lathe Machine, Voltage : 380V/440V, 380V/50Hz

Get Latest Price

Automation GradeAutomatic
TypeMedium Duty
Country of Origin380V/440V,380V/50Hz
Total Carbohydrate1 Year
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

TypeMedium Duty
Country of Origin380V/440V,380V/50Hz
Total Carbohydrate1 Year
Automation GradeAutomatic
After-Sales Service ProvidedSpare Parts
CertificationCE Certified
ConditionNew

Standard Accessories :

Flame Hardened bed ways
Chuck back Plate
Center Adaptor
Dead center- 2nos
Tool Post Spanner
Motor Pulley
Thread Dial Indicator
Change Gear Set-1 (For metric and inch both) & Norton Gear Box.

Optional Accessories :

Face Plate
Extra Chuck Plate
Carrier Plate
Three Pin Guide
Two Pin Guide
Tapper Turning Attachment
Motorised Coolant pump with tank & Fittings
Electric Motor
Bent & Straight Tails
Spalsh Guard
Revolving Centre
True Chunks & Dog Chunks

Technical Specification

Parts	Specification	MAG-1	MAG -2	MAG-3	MAG-4
Bed	Length of bed	4 1/2' (1372)	6'(1830)	7'(2135)	8'(2440)
	Width of bed	11'(280M)	11'(280)	11'(280Mmm)	11'(280mm)
	Length of Gap	4.5'(115mm)	4.5'(115MM)	4.5'(115MM)	4.5'(115mm)
	Length of bed in front of faceplate	5'(130mm)	5'(130MM)	5'(130MM)	5'(130mm)
Capacity	Admit between Centre	20'(550)	38;(950)	50'(1255))	62'(1560)
	Movement of cross slide	10"(250)	10'(250)	10'(250)	10'(250)
	Swing Over Cross Side	5.5'(140)	5.5'(140)	5.5'(140)	5.5'(140)
Main Spindle	Type Spindle	Threaded
	Spindle Bore	Standard 38mm & 0ptional 52 mm
	Spindle Morse Taper	MT-5
	Spindle Adapter Morse Taper	MT-3
	NO. of Speed / RPM Range	8/54, 90, 140, 224, 315 , 500,775, 1200
Tail Stock Spindle	Diameter	2'' -(50.8MM)
	Morse Taper	MT-4
	Travel	6''-(145mm)
Threads(for fully	Metric Thread	(Total 17) / 0.5 mm to 15 mm Pitch
Norton Gear Box)	Inch Thread	(Total 40) 2 TPI to 60 TPI
Norton Gear Box)	Lead Screw Dia	1.25* -(32mm)
Electric	Motor Power	2.H.P/1.5Kw III Phase * 1440 RPM
General	Floor Space (mm)	1500*900	2000*900	2300*900	2600*900
General	*Approx Case Dimension (LWH)*	1650100013320	210010001330	2400100013320	270010001330
Specification For model MAG-1/2/3/4	-	for std 8.5'' center height		Optional for 10'' centre height
General	Specification	with 40mm spindle bore		with 52mm spindle bore
	Height of Centre	8.5''(215mm)		10''(250mm)
	Swing Over Bed	16.5''(423mm)		19.5''(495mm)
	Swing Over Cross Side	10''(250)		13''(330mm)
	Swing in gap	24''(610)		27''(685mm)
