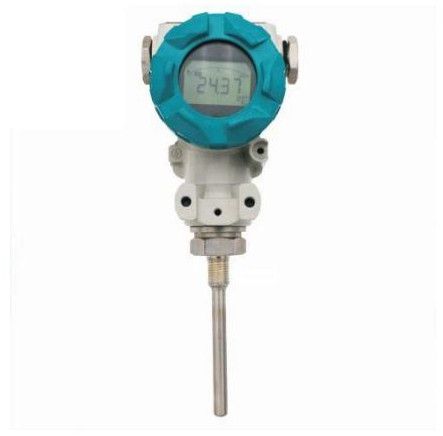

4-20mA Temperature Transmitter

Get Latest Price

Minimum Order Quantity : 10 Piece
Sold By : Cbro Instruments

Send Inquiry

Product Specifications

Country of OriginIndia
AccuracyThermal resistor:0.5%FS(standard);thermocouple: 0.75%FS
output signal4~20mA
ProtectionIP65
DisplayLCD or LED
Temperature Coefficient of Span0.2%FS/10℃
Insert Depth50mm~2000mm(as customer’s request)
Supply Voltage24V±10% DC
MakeCBRO
ModelDTT200S
Load ResistanceRL(max.) =(V-12)/0.02, V:power supply of transmitter
Electrical ConnectionM20×1.5 (female)
Ambient Temperature Range-30~+80℃
Maximum Pressure10MPa
Temperature Coefficient of Zero0.2%FS/10℃
Temperature RangesThermocouple: E,K,S,B Thermal resistor: PT100,Cu50
MeasuringGas or Liquids Compatible to stainless Steel
Process ConnectionG1/2 or others
Insulation Resistance100MΩ@50VDC
Long-Term Stability<0.25%FS/year
Supply TypeManufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Product Overview

4-20mA Temperature Transmitter

MODEL: DTT200S

DTT200S integrated 4-20mA temperature transmitter thermocouple or thermal resistor as temperature sensitive element, it can measure temperature of all kinds of liquid, steam and gas medium from -200 to 1600℃, and transform thermocouple’s or thermal resistance’s signal to 4~20mA standard signal, simultaneously has real-time indication function on the spot. UTB9 integrated 4-20mA temperature transmitter has LCD or LED display.

Features :-

◆Range: -200 ~1600℃;

◆High accuracy, anti-interference, good long-term stability;

◆Integrated structure, can display its real-time measuring value.

Application

MEASURING	GAS OR LIQUIDS COMPATIBLE TO STAINLESS STEEL
Temperature Ranges	Thermocouple: E,K,S,B Thermal resistor: PT100,Cu50
Insert Depth	50mm~2000mm(as customer’s request)
Accuracy	Thermal resistor:0.5%FS(standard);thermocouple: 0.75%FS
Output Signal	4~20mA
Long-Term Stability	<0.25%FS/year
Supply Voltage	24V±10% DC
Load Resistance	RL(max.) =(V-12)/0.02, V:power supply of transmitter
Insulation Resistance	100MΩ@50VDC
Ambient Temperature Range	-30~+80℃
Display	LCD or LED
Temperature Coefficient of Zero	0.2%FS/10℃
Temperature Coefficient of Span	0.2%FS/10℃
Process Connection	G1/2 or others
Electrical Connection	M20×1.5 (female)
Material of Wetted Part	1Cr18Ni9Ti stainless steel
Material of Housing	Cast Alaluminium
Maximum Pressure	10MPa
Protection	IP65
