Pressure Transmitter in Pune

Industrial Pressure Transmitter

Price: 12,000 - 45,000/ Piece

• Measuring-range Pressure : -1 - 60 bar
• Deviation in characteristics : 0.3 %
• Threaded-connection : ≥ G½, ≥ ½ NPT
• Accuracy : 0.3 %
• output : 4 - 20 mA
• Process-temperature : -40 - 100 °C
• Process-pressure : -1 - 60 bar
• Operating voltage : 12 - 36 V DC
• Ambient temperature : -40 - 80 °C

Liquid And Gas Pressure Transmitter

Price: 15,000 - 45,000/ Piece

• Process-temperature : -40 - 200 °C
• Measuring-range Pressure : -1 - 1000 bar
• Flange-connection : ≥ DN25, ≥ 1
• Threaded connection : ≥ G½, ≥ ½ NPT
• Ambient temperature : -40 - 80 °C
• Operating voltage : 9.6 - 35 V DC
• Accuracy : 0.075 %
• Process fitting : Threads from G½, flanges from DN 16, 1
• Process pressure : -1 - 1000 bar

Differential Pressure Transmitter

Price: 58,000/ Piece

• Process temperature with chemical seals : -40 - +400 °C (-40 - +752 °F)
• Process pressure : -1 - +420 bar/-100 - +42000 kPa (-14.5 - +6092 psig)
• Ambient-temperature : -40 - 80 °C
• Threaded-connection : ¼ - 18 NPT
• Flange-connection : ≥ DN32, ≥ 1⅜
• Smallest adjustable span : 0.25 mbar/25 Pa (0.036 psig)
• Process temperature - basic version : -40 - +120 °C (-40 to +248 °F)
• Operating voltage : 12 - 36 V DC
• Measuring-range Pressure : -40 - 40 bar
• Process-pressure : -1 - 420 bar

ELPRT 100SDP Smart Differential Pressure Transmitter

• MOQ : 10 Piece
• Storage Temperature : -40°C To +85°C
• Supply Type : Manufacturer
• Type : Differential Pressure Transmitter
• Construction : Rigid & Rugged
• output signal : 4-20 MA DC With HART Communication
• Display : LCD
• Sensor Type : Capacitive Sensor With Diaphragm
• Supply Voltage : 12.5-45 V DC
• Process Temperature : -20°C To +125°C

PT 22 Digital Pressure Transmitter, Certification : Ce Certified

• Display : LED Display
• Supply Type : Manufacturer
• Ingress Protection : IP65
• Repeatability : < 0.1% Of Span
• Sensor Type : Piezo Resistive
• Certification : CE Certified
• Measuring Range : 0.1 To 1000 Bar
• Output Load : Max 600 Ω
• Weight : Approx. 0.4 Kg
• Type : Digital Pressure Transmitter

ELPRT 100ERH Analog Electronic Pressure Transmitter

• Application : Pressure, Differential Pressure, Absolute Pressure Measurement
• Weight : Approx. 11.5 Kg
• Max. Process Temperature : 5–120°C
• Humidity : 0–100% RH
• Zero Elevation : Up To 600% Of Calibrated Span
• Type : Analog Pressure Transmitter
• Electrical Connection : 3-Pin Allied Connector
• Supply Type : Manufacturer
• Power Supply : 28 VDC ± 4 VDC
• Output : 4–20 MA DC (Standard) / 20–4 MA DC

Danfoss Pressure Transmitter

Price: 3,655/ Piece

• Electrical Rating : AC-3
• Pressure Connection Standard : EN 837
• Supply voltage : 9,00 - 28,00 V
• Pressure Range : 0,00 - 10,00 bar
• Electrical Connection Type : Pg 9, EN 175301-803-A, Male and Female
• Pressure Connection HEX : 24,0
• Brand Name : Danfoss
• Compensated Temp. Range °C : 0 - 80 °C
• Pressure Connection Type : G - 1/4 Male
• Ambient temperature °C : -20 - 80 °C

Wika Pressure Transmitter

Price: 13,572/ Piece

• Voltage : 10-30VDC
• Brand : Wika
• Out Put : 4-20 mA
• Operating Range : 0-100 Bar
• Model Name/Number : S-10
• Application : Food, beverage, Pharmaceutical & Cosmetic
• Accuracy : +/- 0.25%

Industrial Pressure Transmitter, Features : Temperature Compensated, Compact Construction, Zero Span Adjustments

Price: 2,500/ Units

• Proof Pressure : 2 times of pressure range, 5 times of pressure range
• Weatherproof rating : IP 65
• Ceramic Sensor : Aluminum Oxide Al2O3(96%)
• output signal : 4-20mA (2 Wire)
• Media Temperature Range : -25 +85 Deg C
• Feature : Temperature compensated, High level current Output Signal, Compact construction,Zero and span adjustments, False system shutdown prevention.
• Power Requirement : 10-32 VDC
• Item Code : P7620A
• Fitting Material : 304 stainless steel
• Connection : G 1/2

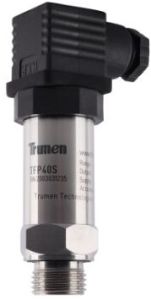

Piezoresistive Pressure Transmitter Model – TFP40S

• Accuracy : ±0.25%FSO Or ±0.5%FSO
• Measuring Ranges : 100mbar To 600bar
• Calibration : Calibrated And Temperature Compensated
• Supply Type : Manufacturer

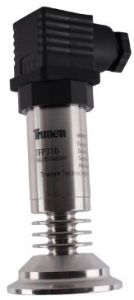

Flush Diaphragm Pressure Transmitter Model – TFP310

• Diaphragm Type : Flush Diaphragm
• Supply Type : Manufacturer
• Pressure Types : Absolute, Gauge, Sealed Gauge
• Calibration : Calibrated And Temperature Compensated

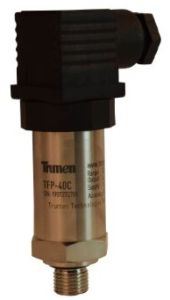

Ceramic Pressure Transmitter Model – TFP40C

• Calibration : Calibrated And Temperature Compensated
• Accuracy : ±0.5%FSO
• Pressure Connections : Variety Of Pressure Connections
• Supply Type : Manufacturer

Pressure Transmitter, Model Number : CTX

• Pressure type  : Relative (gauged)
• Max. measuring span  : 200 bar
• Max. measuring error  : ± 2.5 % FSR -Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)
• Temperature coefficient  : ≤ 0.15 % FSR/10 K , measuring span ≤ 0.25 % FSR/10 K , zero point
• Rise time (10 ... 90 %)  : ≤ 5 ms
• Standard error of measurement (BFSL)  : ± 0.5 % FSR -Including non-linearity, hysteresis and non-repeatability according BFSL
• Min. measuring span  : 1.0 bar
• Measuring range  : -1 … 200 bar
• Application : Pressure sensor for general air and gas applications
• Model Number : CTX

Pbmn Flush Pressure Transmitter

• Process data length  : 24 bit
• Cycle time  : ≥ 2.3 ms
• Max. measuring span  : 400 bar
• Process data (cyclic)  : Process pressure
• Long term stability  : ≤ 0.1 % FSR/a , measuring range > 1 bar ≤ 1 mbar , measuring range ≤ 1 bar
• Max. measuring error  : ± 0.1 % FSR, ,± 0.25 % FSR ± 0.5 % FSR Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2) For turndown, multiply this value by the applied turndown ratio
• Temperature coefficient  : ≤ 0.03 % FSR/10 K , measuring span ≤ 0.03 % FSR/10 K , zero point
• Compensated temperature range  : -40 … 85 °C
• Diagnostic data (acyclic)  : Process temperature
• Standard error of measurement (BFSL)  : ± 0.04 % FSR ,± 0.1 % FSR ± 0.2 % FSR Including non-linearity, hysteresis and non-repeatability according BFSL For turndown, multiply this value by the applied turndown ratio

Pbmn Low Pressure Transmitter

• Long term stability  : ≤ 0.1 % FSR/a , measuring range > 1 bar ≤ 1 mbar , measuring range ≤ 1 bar
• Pressure type  : Absolute Relative (gauged)
• IO-Link port type  : Class A
• Process data (cyclic)  : Process pressure
• SIO-mode  : No
• Baud rate  : 38,4 kbaud (COM2)
• Compensated temperature range  : -40 … 85 °C
• Rise time (10 ... 90 %)  : ≤ 5 ms
• Standard error of measurement (BFSL)  : ± 0.04 % FSR ± 0.1 % FSR Including non-linearity, hysteresis and non-repeatability according BFSL
• Explosion protection  : ATEX II 1/2G Ex ia IIC T4/T6 Ga/Gb ATEX II 1D Ex ia IIIC T107 °C IP6X Da ATEX II 1G Ex ia IIC T4/T6 Ga

Wika Pressure Transmitters

• Features : Reliable operation , Easy to mount , Robust design
• Temperature Range : 0 to 50 Degree C
• Output Signal : 4-20 mA
• Pressure Range : 0 to 250 mbar
• Temperature Storage : -40+80 Degree C
• Availability : Approx 0.3kg

Stainless Steel Submersible Pressure Transmitter, For Rivers, Drinking Water Manholes, Bore Holes Waste Water Plants

• Immersion Depth : Up to 300 m
• Availability : 500g
• Material : Stainless Steel
• Temperature Range : 0 ... +50 Degree C
• Feature : Various design, Trusted, Exclusive quality, Affordable
• Application : Rivers, drinking water manholes, bore holes and waste water plants
• Pressure Range : 0 ... 0.25 bar
• Accuracy : 0.25 %
• Storage : -30 ... +80 Degree C
• Frequency : 50 Or 60Hz

Pressure Transmitter And Switch

• Power Supply : 12V to 36V DC
• Sensor Type : Piezo Resistive
• Measuring Range : 0.2 to 25 Bar
• Availability : 1 kg (Approximate)
• Process Connection : 1) 1/4 inch NPT,2) 1/2 inch NPT,3) 1/4 inch BSP,4) 1/2 inch BSP 5) *Other on request
• Mounting Type : Direct Line mount (Vertical)

Baumer Make Pressure Transmitter

• Item Code: 02 Specifications:- Compact Size, Low Cost Ranges From : -1�0 to 0�.200 Bar Accuracy : 0.5 % BFSL Output signals : 4�20 mA, 0�10 VDC, 0�5 VDC, 1�.5 VDC Working...

Pressure Transmitter, Output Signal : 4 To 20 MA

• Pressure transmitters translate low-level electrical outputs from pressure sensing devices to higher-level signals that are suitable for transmission and processing. They use many different sensing technologies and can measure the pressure of...

PBSN Pressure Transmitter

• Item Code: 01 Specifications:- Ranges from 1 to 1600 Bar SS body & wetted parts SS 316 Output: 4â��20 mA DC 2 wire Supply: 10 -30 VDC Turn down ratio: 1:6 Accuracy: 0.25% Temperature limit: -25 to + 100 Deg C Connection: ½â�� BSP (M)...

Pressure Transmitter, Material : Metal & Plastic

• Description & Features : • Developed for high-volume OEM applications • Compact stainless steel construction with ceramic sensor • Available ranges include in/Hg up to 5, 000 psi • Wide range of mechanical and electrical connections •...

Smart Differential Pressure Transmitter

Pressure Transmitters, Pressure Transducers

• SUCO Silicon-on-Sapphire (SOS) pressure transmitters/transducers – hot new development offering satisfying high temperature operation, high accuracy and repeatability, and long term stability requirements in off highway equipment. The ability to...

Differential Pressure Transmitters
