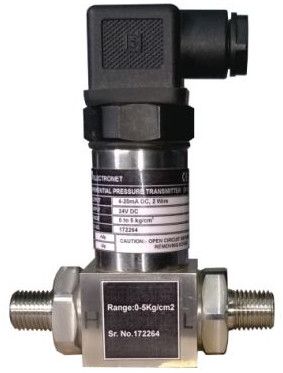

DPT 22 Differential Pressure Transmitter

DPT-22 – Digital Differential Pressure TransmitterFeatures

• Piezo Resistive Sensor

• Measuring Range: 0.35 to 25 bar

• Handy & Maintenance-Free

• Reliable & Cost-Effective

• Ingress Protection: IP65

Description

Electronet Series DPT-22 are Digital Differential Pressure Transmitters designed for fast, accurate, and trouble-free operation.
These transmitters are suitable for a wide range of industrial applications involving clear gases and liquids.
The electrical output is 4–20 mA DC or 0–10 V, proportional to the input pressure.
All wetted parts are made from stainless steel and are hermetically welded for long service life.

Technical SpecificationsSensor & Measurement

• Sensor Type: Piezo Resistive

• Measuring Range: 35 kPa to 2500 kPa (DP URL)

• Accuracy: ±0.25% F.S.

• Non-linearity: 0.2% of span

• Non-repeatability: <0.1% of span

• Response Time: <10 ms (for 10% to 90% output change)

Pressure Safety

• Overpressure Safety: 2× maximum pressure range

• Burst Pressure: 3× maximum pressure range

Electrical

• Power Supply:

  • 24 V DC (Two-wire loop powered)

  • 12 to 36 V DC

• Output: 4–20 mA DC / 0–10 V

• Output Load: Max 600 Ω

• Insulation Resistance: >100 MΩ at 100 VDC

Environmental

• Process Temperature: –20°C to 120°C

• Ambient Temperature: –20°C to +60°C

• Humidity: 5% to 95% RH (non-condensing)

Adjustments & Connections

• Span/Zero Adjustments: Provided

• Process Connection: Refer ordering information

• Electrical Connection:

  • M12 Connector

  • DIN 43650 Connector

• Mounting: Direct line mount (vertical)

Construction

• Wetted Parts: SS316 (optional materials available)

• Enclosure: SS316, IP65 ingress protection

• Area Classification: Field-mount, weather-proof, IP65

• Certification: CE (Type 43)

• Weight: Approx. 0.6 kg
