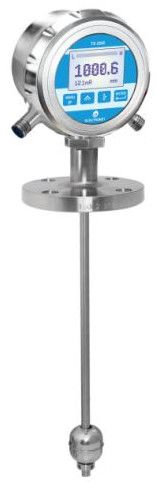

TS2000 LMT Magnetic Float Level Transmitter Switch

Get Latest Price

Minimum Order Quantity : 10 Piece
Sold By : Electronet Equipment Pvt. Ltd.

Send Inquiry

Product Specifications

Power Supply24V DC
Power Consumption<6VA
UsageLevel Measurement Of Conductive / Non-conductive Liquids And Slurries
TypeMagnetic Float Level Transmitter Switch
Supply TypeManufacturer, Exporter, Supplier

Product Overview

Preferred Buyer From : All over the world

TS 2000 LMT – Magnetic Float Level TransmitterFeatures

Simple, low-cost, and highly reliable
Suitable for conductive and non-conductive liquids and slurries
Continuous 4–20 mA DC output
Weatherproof IP-67 protection
Flameproof CMRI IIA IIB certified (optional)
Non-contact magnetic operation ensures long life and low maintenance

Description

Electronet series TS 2000 LMT are magnetic float-operated level transmitters designed for continuous and accurate level measurement.
The system consists of a non-magnetic guide tube and a float containing a magnetic assembly. As the level changes, the float moves and actuates hermetically sealed reed switches inside the guide tube.
This movement generates a proportional 4–20 mA DC output, providing a reliable and noise-free continuous level signal.
The rugged construction ensures dependable performance for liquids, chemicals, and slurries across various industrial applications.

Technical SpecificationsMeasurement

Probe Length: As required (max. 2 meters)
Probe Type: Single Rod (up to 2000 mm)
Accuracy: ±10 mm
Linearity: ±0.5% for 3 m probe length
Response Time:

Product PDF

Download Detail File : Click Here
