DIAM 151KK Industrial Digital Panel Meter

Get Latest Price

Minimum Order Quantity : 10 Piece
Sold By : Electronet Equipment Pvt. Ltd.

Send Inquiry

Product Specifications

Operating Temperature–20°C To 55°C
TypeDigital Panel Meters
DisplayLED Numeric Display
Bezel Size96 Mm × 96 Mm (panel Mount)
ModelDIAM 151 KK
Power SupplyLoop Powered, 24 V DC
Voltage DropApprox. 3.6 VDC
Response Time< 500 Ms
Accuracy±0.1% Of F.S.
Bar-Graph51-segment Tri-color LED
MountingPanel Flush Mounting, 2
Input4–20 MA DC, 2-wire
Supply TypeManufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Product Overview

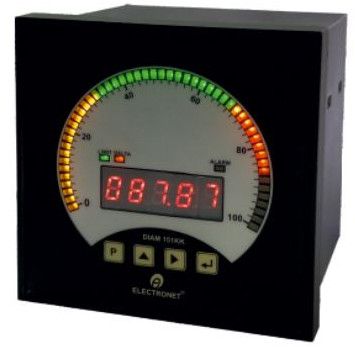

DIAM 151 KK – Loop Powered Tri-Color Bar-Graph IndicatorFeatures

Loop powered – operates directly from 4–20 mA signal
51-segment tri-color LED bar-graph
4–20 mA, 2-wire input

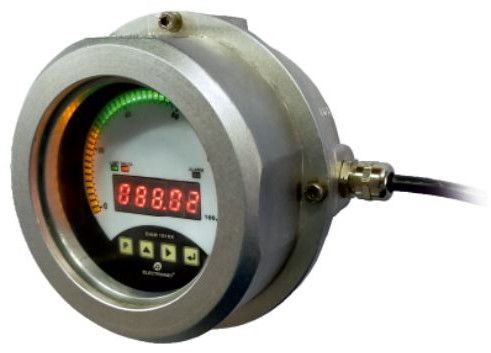

Available in 96 × 96 mm DIN panel mount or 2" pipe-mount version
LED digital display with tri-color bar-graph indication
Suitable for monitoring Temperature, Pressure, Flow, Level and other process parameters
Programmable range through front fascia
Low loop burden – voltage drop approx. 3.6 VDC

Description

Electronet series DIAM 151 KK is a compact, loop-powered tri-color bar-graph indicator designed for industrial process monitoring.
It receives power directly from the 4–20 mA loop, eliminating the need for an external power supply.

The instrument features a clear LED display along with a 51-segment tri-color bar-graph for instant process visualization.
It can be configured easily using front-panel keys and is ideal for field or panel mounting.

It is suitable for a wide range of industries and supports reliable monitoring of key parameters such as temperature, pressure, flow, and level.

Technical SpecificationsPerformance Characteristics

Input: 4–20 mA DC, 2-wire
Accuracy: ±0.1% of F.S.
Response Time: < 500 ms
Bar-Graph: 51-segment tri-color LED
Display: LED numeric display
Voltage Drop: Approx. 3.6 VDC

Power

Power Supply: Loop powered, 24 V DC (via 4–20 mA signal)

Alarm Output

One or two Open Collector Alarm Outputs (configurable)
Set Point Indication:
- Orange LED blinks when value crosses the programmed set point

Diagnostics

Displays ‘UNDER’ when input < 3.85 mA
Displays ‘OVER’ when input > 21.8 mA
Fuse blown LED turns ON when internal fuse fails

Mechanical & Mounting

Bezel Size: 96 mm × 96 mm (panel mount)
Mounting:
- Panel flush mounting
- 2" pipe mounting (field)
Termination: Strippable connectors
Enclosure Material: MS powder-coated / Aluminum die-cast

Enclosure Protection

Weatherproof: IP65
Flameproof: CMRI IIA IIB Certified

Ambient Conditions

Operating Temperature: –20°C to 55°C
Relative Humidity: 5% to 95% RH (non-condensing at 35°C)

Product PDF

Download Detail File : Click Here

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry
