Adjustable Choke

Listing ID #3889746

Get Latest Price

Tensile Strength483 to 655 Mpa
Hardness56 HRB to 92 HRB
Elongation15% Minimum
Yield Strength248 to 517 Mpa
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Tensile Strength 483 to 655 Mpa
Hardness 56 HRB to 92 HRB
Impact Strength 15 Ft. lbf
Yield Strength 248 to 517 Mpa
Elongation 15% Minimum
Impact Strength 20% Reduction of area (Minimum )

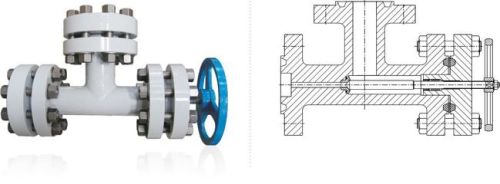

Adjustable choke are the chokes that include restrictions or orifices to control the flow rate of fluids.These choke are not ntended to be used as shutoff valves. Adjustable Chokes have an externally controlled variable area orifice coupled with an orifice area indicating mechanism. Actuators can be used for driving mechanism

Performance Requirement

Operating cycle requirement for chokes has got two performance requirement levels:

- Performance Requirement Level 1 has got 3 operating cycle

- Performance Requirement Level 2 has got 200 operating cycle

Pressure & Temperature Rating

Pressure & temperature rating shall be as per API-6A from 13.8 MPa (2000 psi) to 138.0 MPa [20000 psi].

The temperature rating is classified as K,L,N,P,S,T,U,V with minimum -60deg centigrade to 121 centigrade.

Material Class

The material class has got various services for general & sour service from AA,BB,CC,DD,EE,FF,HH. The minimum material requirement for body, bonnet, end & outlet connections with respect to pressure controlling parts, stems & mandrel hangers

Size

Reliable Valves manufactures the adjustable choke for 2
