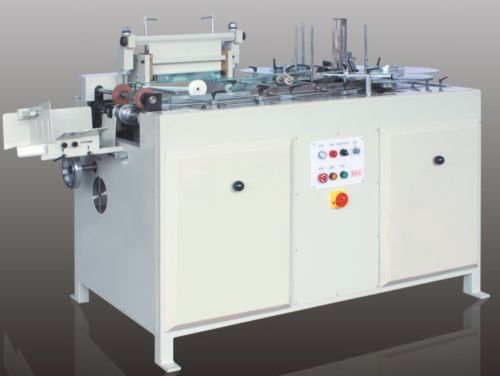

Automatic Punching Machine

We are offering automatic punching machine.
This machine is suitable for batched punching of all kind of notebooks,calendars paper,tutorial paper,and
pp,etc.with the integration of automatic separating,punching,and receiving paper.it increased the
production efficiency remarkably.the succinct and reasonable structural design provides you a high cost
performance.
Product feature
advantages:
simple and quick size adjustment.easy and quick changing of punching mold.
The paper separating system can guarantee the sequence without turning over the
paper.high compatibility and low failure rate.
Simple operating system,easy to cooperate machine.
High quality of punching hole,accurate punching position.
Special punching mold can be provided according to customer's requirement.
Product specification/models
max.sheet 320*320mm
min.sheet 130*95mm
punching thickness up to 2mm
punching speed 4200-5400 punch operations/hour
power 1ph 220v 50/60hz(other voltage on request
dimension(l*w*h) 1800*900*1300mm
net weight 500kg
