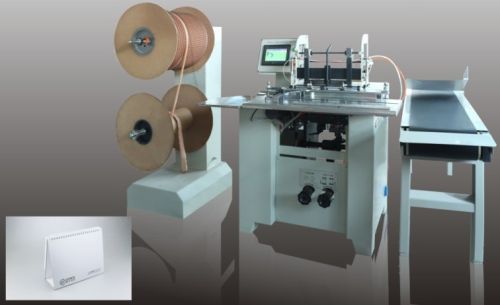

Double Wire Binding Machine

We are offering double wire binding machine.
the machine is widely used for binding all kinds of double wire books, notebooks, calendars and other prints with efficient and convenient. With the integration of automatic supplying wire, cutting wire, binding, closing and collection, it increases the efficiency and reduces the cost remarkably. It's the first choice for the double wire binding machine.
Product feature
controlled by advanced plc which is easy to set, operate and adjust by touch screen.
High efficiency and reliable performance.
The machine is equipped with side belt and conveyor for pushing and collecting the products to improve the production efficiency.
Various specifications of double wire can be closed by the binding dies which are easy and fast to change.
The machine is equipped with auto position save function which is no need to adjust the machine when changing same size wire.
it shows the facult on the screen automatically and is convenient to repair.
The binding hanger for optional
product specification/models
speed:1500volume/hour
air pressure:5-8kgf
wire diameter:1/4"-3/4"
the max width of binding:520mm
power:1ph 220v 50/60hz
net weight:300kg
