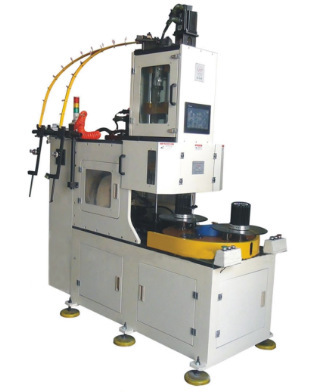

Automatic Winding Machine

1. Avaliable for compressor motor of household electric appliance, freezer and air conditioner.
2. Workable for single machine running or machine to machine networks. Compare with traditional
winding machine, this machine is fully automatic and highly efficiency.
3. Installed air cylinder and four spindles AC servo system; coordinating with PLC programme.
Easy to change fast/slow speed and turns ratio etc., Auto display on dynamic turns ratio, winding
turns ratio, turns ratio set up and breakdownstatus etc.,
4. 14:1" big and colorful touch screen monitor; easy to operate and keeping 50 sets of record in memory.
5. Automatic transfer table feeding. Sensors on winding plate to make sure the part loaded completely
and to avert mould damaged.
Spindle rpm�2400rpm
Wire dia.�0.3-1.2mm
Power supply:380V 50/60Hz 3phase
Stator inner dia:40mm-120mm
Coil section:6
Weight:1560kgs
Stator thickness:25mm-120mm
Pole of electric motor:2,4,6
Air pressure:0.5-1.0mpa
Power:7kw
Machine volume:2200x850x2400mm(Lx Wx H)
