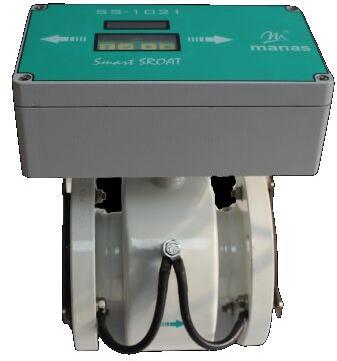

Battery Operated Electromagnetic Flow Meter DN 10 to DN 500

Product Specifications

• Line SizeDN 10 to DN 500
• PressureUp to DN80 – PN 40   From DN100 to DN200 – PN 16 From DN250 to DN500 – PN10
• Accuracy±1% of Actual Flow Rate between 100% to 10% of calibrated range
• Media TemperatureHard Rubber (HR) -0-90 Deg C   PTFE – 0 – 150 Deg C PFA: 0 to 200 Deg C
• Type of TransmitterSS1021
• OutputPulsed DC output/4-20 mA (Optional)/Rs485 Communication (Optional)
• Shelf Life5 Years
• Ingress ProtectionIP68 for Primary Flow Sensor, IP67 for flow Transmitter
• Local Display2-line LCD Display For instantaneous Flow rate, Totalizer, Engg. units, Fault Message, etc
• Flanges MaterialMS/CS/SS316/SS304/SS316 L
• Flow Velocity0.2m/s to 12m/s
• Min Media conductivity20 micro-Siemens per cm
• GSM FacilityOptionally Available
• Ambient0 to 50 Deg C
• Coil Housing MaterialMS/CS PU Painted/SS304/SS316
• Liner MaterialHard Rubber/PTEF/PFA
• Pipe MaterialSS304 (nonmagnetic)
• Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
