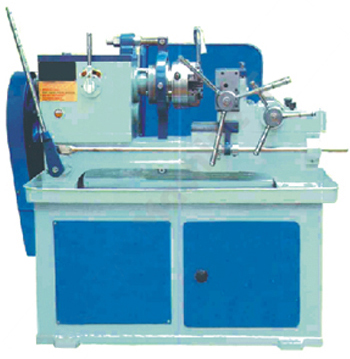

Bolt Threading Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

• Special Features for Bolt Threading Machine. • The Spindle Bore 40mm Fitted with Taper Bearing. • The Bolt Threading Machine Has Two Speeds 60 & 90 RPM . • All Gears are Tempered (Oil Seals 42-12-65). • Motor Pulley 12" Diameter, V-belt Drive Vice Fitted with Jaw. • All the Gears are made of cast hardened steel. • Noilseless Opearation

View More Details

Send Enquiry

Company Information

HUMA TRADERS

Hamidia Road, Bhopal, Madhya Pradesh

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model	AEB-25	AEB-40	AEB-65
Capacity	1/4"to 1"	3/8" to 1.1/2"	1/2" to 2.1/2"
Length of Bed	44"	52"	72"
Width of Bed	11"	12.1/2"	14.1/2"
Height of Bed	11"	12.1/2"	14.1/2"
Length of Pedestal Box	44"	52"	22"x22.20"x16"
Width of Pedestal Box	18"	19"	21"
Height of Pedestal Box	20"	20"	-
Length of Slide	17"	18"	20"
Width of Slide	11"	12"	14. 1/2"
Height of Slide	3"	3"	4"
Length of Head	14.1/2"	15.1/2"	17"
Width of Head	11"	12"	23"
Height of Head	11.1/2'	12"	14.1/2"
