Electric Automatic Bolt Threading Machine, Certification : CE, ISO 9001:2015 Certified

Listing ID #6497070

2.10 Lakh - 2.60 Lakh / piece
Get Latest Price
  • MOQ 1 Piece
  • TypeBolt Threading Machines
  • CertificationCE, ISO 9001:2015 Certified
  • ColorGrey & Blue
  • ConditionNew
  • Supply Type Exporter, Supplier, Retailer, Trader
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 10 Years
  • Nature of Business Manufacturer
  • Year of Establishment 2012

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Type Bolt Threading Machines
  • Certification CE, ISO 9001:2015 Certified
  • Color Grey & Blue
  • Condition New
  • Power 5 H.P.
  • Driven Type Electric
  • Warranty 1year
  • Brand Name OM
  • Application Foundation Bolt
  • Weight 100-1000kg
  • Country of Origin India
  • Automatic Grade Automatic

Bolt Threading Machine Manufacturer

Bolt Threading Machine Supplier

Bolt Threading Machine Exporter

OM Brand - Bolt Threading Machine

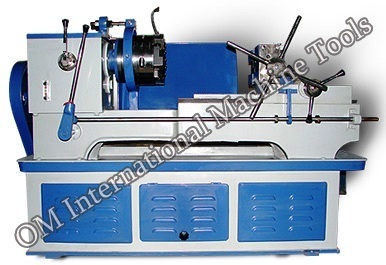

The Bolt Threading Machine is use to cut the external threads with the help of Tangential chaser. Chaser is use as a cutter in Bolt threading machine. Bolt remain still, Die-head rotates and different type of threads can be cut parallel and taper such as BSPT, BSW, BSP, NPT, UNF, METRIC, UNC, ACME, BSF Threads.

Details

  • DESIGN & WORKMANSHIP The Industrial Machinery Corporation Bolt Threading machines are designed to produce quality threads within the tolerance for which they were intended.
  • HEAD STOCKA heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.
  • THE BED The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.
  • THE SADDLE The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.
  • THE APRON The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It's all gears are made of best quality steel.
  • VICE JAWS The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.


Technical Specification

Model 1/4 to 1 3/8 to 1.1/2 1/2 to 2.1/2
Saddle Movement 10 44846 44911
Spindle Speed Range 60-90 60-90 60-90-120
Number of Spindle Speed 2 2 3
Threading Capacity 1/4 to 1 3/8 to 1.1/2 1/2 to 2.1/2
Production per Hour 60-80 60-80 70-90
H.P. Required 3 H.P. 3 H.P. 7.5 H.P.
Lead Screw Optional Optional Optional
Weight (KG) Aprox. 500 550 990

Additional Information

  • Payment Terms L/C, D/A, D/P, T/T
  • Port of Dispatch Any Indian Port
  • Packaging Details As Per Customer Requirement
  • Delivery Time Ready Stock
