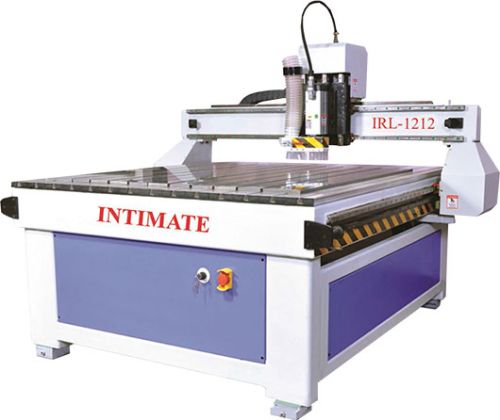

Electric CNC Router, Brand Name : Intimate

₹ 5.50 Lakh - ₹ 12.50 Lakh / Set

MOQ1 Piece(s)
Driven TypeElectric
Brand NameIntimate
Rated Power5-7 KW
Usage/ApplicationAluminium, Cutting Wood, Plastic
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer
Preferred Buyer Location All over the world

Company Information

4.7/5

Member Since 14 Years
Nature of Business Retailer
GST No. 24AFMPC3319R1Z6

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerBlue
Country of Origin440V
Rated Power5-7 KW
Driven TypeElectric
Usage/ApplicationAluminium, Cutting Wood, Plastic
Brand NameIntimate
Weight700-800kg
FinishingPowder Coated
CertificationISO 9001:2008
Warranty1 Year
Automatic GradeFully Automatic

We are a leading manufacturer, exporter, supplier, retailer, distributor, and importer of the CNC Router by Intimate Machine Tools. This electric-driven machine, with a rated power of 5-7 KW, is ideal for aluminum applications. Originating from 440V, it boasts a high-quality build with ISO 9001:2008 certification. The Number Of Flower - Blue design adds a touch of elegance to its functionality. Experience precision and efficiency with this CNC Router, designed to meet your industrial needs seamlessly.

Technical Specification

MODEL	IRL-1212	IRL-1325
OUTER DIMENSION	1902 x 1750 x 1541 mm	2002 x 3150 x 1541 mm
MACHINE AREA	1200 x 1200 mm	1300 x 2500 mm
SPINDLE	3 KW (Made in Italy) Air Cooled 6 KW (Optional)	3 KW (Made in Italy) Air Cooled 6 KW (Optional)
SPINDLE RPM	18000 max.	18000 max.
Z MAX. TRAVELLING	200 mm	200 mm
DISTANCE BETWEEN BED & GENTRY	200 mm	200 mm
CUTTING TOOL DIAMETER	3, 4, 6,	3, 4, 6, 12.7 mm
REPEATED LOCATION	0.025 mm	0.025 mm
MAX. RUNNING SPEED (WITHOUT OAD)	20 m /min	20 m /min
WEIGHT	550 Kg	850 Kg
POWER SUPPLY	AC230V / 50 – 60Hz	AC230V / 50 – 60Hz
