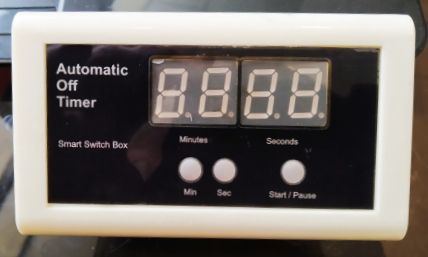

Reverent Digital Automatic Off Timer

Details:

• OPERATIONS  :  Connect the  Red Wire  to Phase and Black Wire to
• Neutral of  AC Mains  230 V , 50 HZ  Supply  and switch on  Mains so  that  Power reaches  to   Auto Off  Timer.
• The Double Digit will display  00 00.
• Connect the Load  to be turned on –off   by connecting  to the output Load  wire  connected to Electrical Switch .
• Set  the  desired   time  by  adjusting  MINUTES  by the  Key  Switch   Hrs. / Min  within  00  - 90  Minutes .
• Similarly  set SECONDS  Setting  from  00 – 60 Seconds  with  the Key  Switch  Min / Sec.
•  Now  Press START  Button  to  Turn  the LOAD  ON  and  start  the  CLOCK  Counter .
• LOAD turns OFF  automatically at  00 :00 Minutes and Seconds .
• RESET  to 00: 00  by Pressing START key  Continuously  for 3 Seconds .
